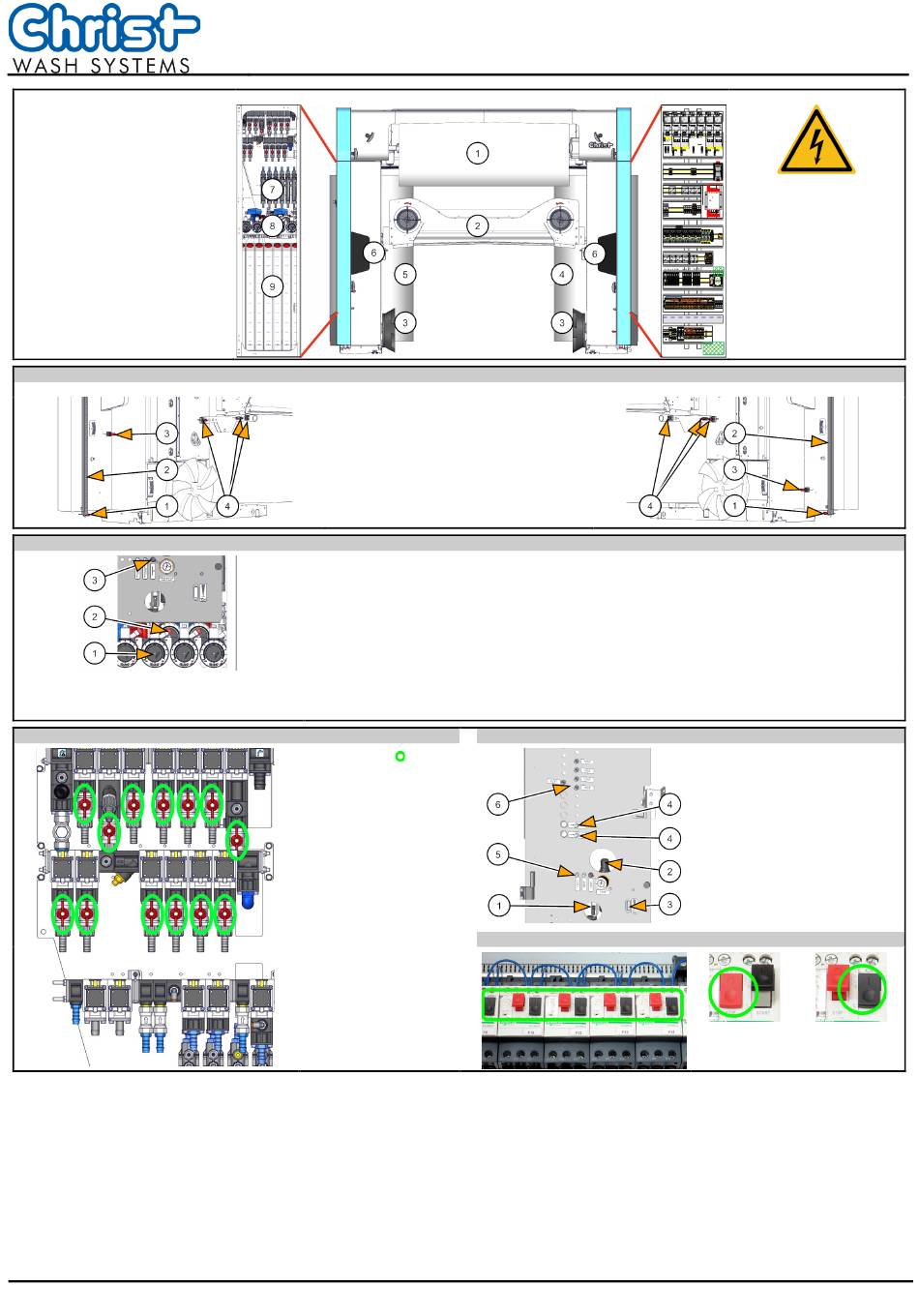

Christ ALPHA C173 Operation Manual

System overview
1) Horizontal brush
2) Horizontal nozzle
3) Wheel wash device
4) Lateral brush S
5) Lateral brush M
6) Positioning indication
7) Water and air distribution
8) Dosing pumps
9) Detergent container
M = detergent side
S = switchgear cabinet side
Light barriers
Portal inside M
Dosing pumps
1) Dosing pumps
2) Deaeration screw (red)
3) [Dosing pump ON] pushbutton
Water distributor
Knowledge of the operation manual for the roll over wash unit and the operation terminal is required.
6502200-EN_00 26/05/21
Detergent side M
1) Wheel wash device
2) Light grid
3) "Back" positioning
4) Horizontal nozzle
Deaeration of the dosing pumps:
• Unscrew the deaeration screw (red) (max. 1 rotation).
• Activate the dosing pumps using the [Dosing pump ON] pushbutton (each dosing pump switches on
for approx. 1 minute) on the air plate above the dosing pumps. Press the button again within the on-
period to deactivate the dosing pumps.
• Operate the dosing pumps until the air has completely escaped from the suction line or until detergent
emerges.
• Screw in the deaeration screw.
The ball valves ( ) enable
the control of flow volumes
for:
Q251: Brush watering
Q252: Front with drying aid
Q255: Fresh/service water
Optional, for example
Q264: Seasonal chemicals
Q259: Active foam
Q262: Special wax
Q269: Rim detergent
Info: the ball valve is com-
pletely open
wings of the ball valve are
vertical.
Technical modifications reserved!
Switchgear cabinet side S
Air plate
Motor circuit breaker
when the
Abridged operation manual
ALPHA C173
WARNING!
Electric voltage!
Check for the absence of volt-
age before touching parts!
Portal inside S
1) Air shut-off valve (close before
maintenance)
2) Pressure reducer (max. 6 bar)
3) Oiler (1 drop per minute)
4) Pressure reducer, wheel wash
device (max. 3 bar)
Optional
5) Compressed air pressure re-
ducer, order-specific basis
6) Compressed air throttle valves,
order-specific basis
Motor circuit Motor circuit
breaker off breaker on
1 / 2
