Savant SLN-44VLC4K-00 Quick Reference Manual

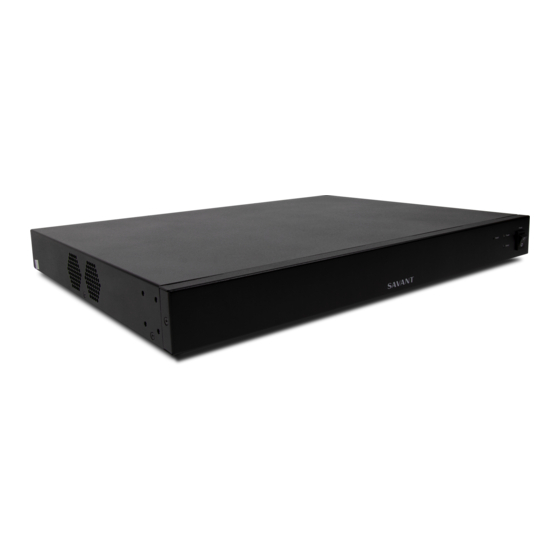

Savant® 4K HDR HDBaseT Matrix Switcher
Quick Reference Guide
Box Contents
(1) 4K HDBaseT Matrix Switcher (SLN-xxVLC4K)
(1) AC Power Cord
(8) IR Connector Cables for the SLN-88VLC4K
(4) IR Connector Cables for the SLN-44VLC4K
(2) Mounting Brackets
(8) Mounting Bracket Screws
(1) Product Regulatory Insert (009-1950-xx)
Accessories (sold separately)
– HRX-4KVLC40-xx
– HRX-4KVLC100-xx
Supported Receivers
– HRX-4KVLC40
– HRX-4KVLC100
– HCX-4KHDR40
– HCX-4KHDR100
–
HRX-SLN501 (does not support 4K, requires the 5V DC power
supply PWR-5025)
Front Panel
Press and Hold for 5s until the Status LED Blinks
A
Reset
Rapidly then release to reset the network settings.
Off: The matrix is powered off.
B
Power LED
Green: The matrix is powered on.
Off: Does not have a valid IP address
Green: Network is connected.
C
Status LED
Green Rapid Blinking: Reset network settings.
Green Slow Blinking: Firmware is being upgraded.
Power
D
Press to power on/off the matrix.
Switch
SLN-xxVLC4K Quick Reference Guide | 009-1874-02
Copyright © 2021 Savant Systems, Inc. | 210607
Specifications
Environmental
Temperature
Humidity
Dimensions and Weights
Device
Shipping
Rack Space
Power
Input
Maximum
Power over
HDBaseT(PoH)
Output
Video
HDR
A B Supported
Formats
1 = at 24 Hz | 2 = at 25 Hz | 3 = at 30 Hz | 4 = at 50 Hz | 5= at 60Hz
C D Audio
Supported
Formats
Regulatory
Safety and
Emissions
RoHS
Minimum Supported Release
Savant OS
Network Guidelines
For more information, see the Savant Device Networking Guidelines
on the Savant Customer
1 of 2
32° to 104° F (0° to 40°C)
10% to 90% (non-condensing)
Height Width Depth
1.71 in 17.30 in 13.00 in
(4.35 cm) (44.0 cm) (33.0 cm)
6 in 16 in 21 in
(15.24 cm) (40.64 cm) (53.34 cm)
1U
100/240V AC (50/60 Hz)
172.45W
IMPORTANT! This cannot be disabled.
Supported
720X576P 1280x960
4 5
800x600 1280x1024
5 5
1024x768 1360x768
5 5
1280x720P 1366x768
5,6 5
1280x768 1440x900
5 5
1280x800 1600x900
5 5
HDMI/HDBaseT: Pass-through of all HDMI audio
formats are supported.
Digital Audio Out: Up to Dolby 5.1, DTS 5.1
CE C-Tick
FCC Part 15
Compliant
da Vinci 9.2
Community.
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
Weight
10.9 lbs
(4.95 kg)
14 lbs
(6.33 kg)
1600x1200
5
1680x1050
5
1920x1080P
1,3,4,5
1920x1200
5
3840x2160
1,2,3,4,5
4096x2160
1,2,3,4,5
ETL UKCA
