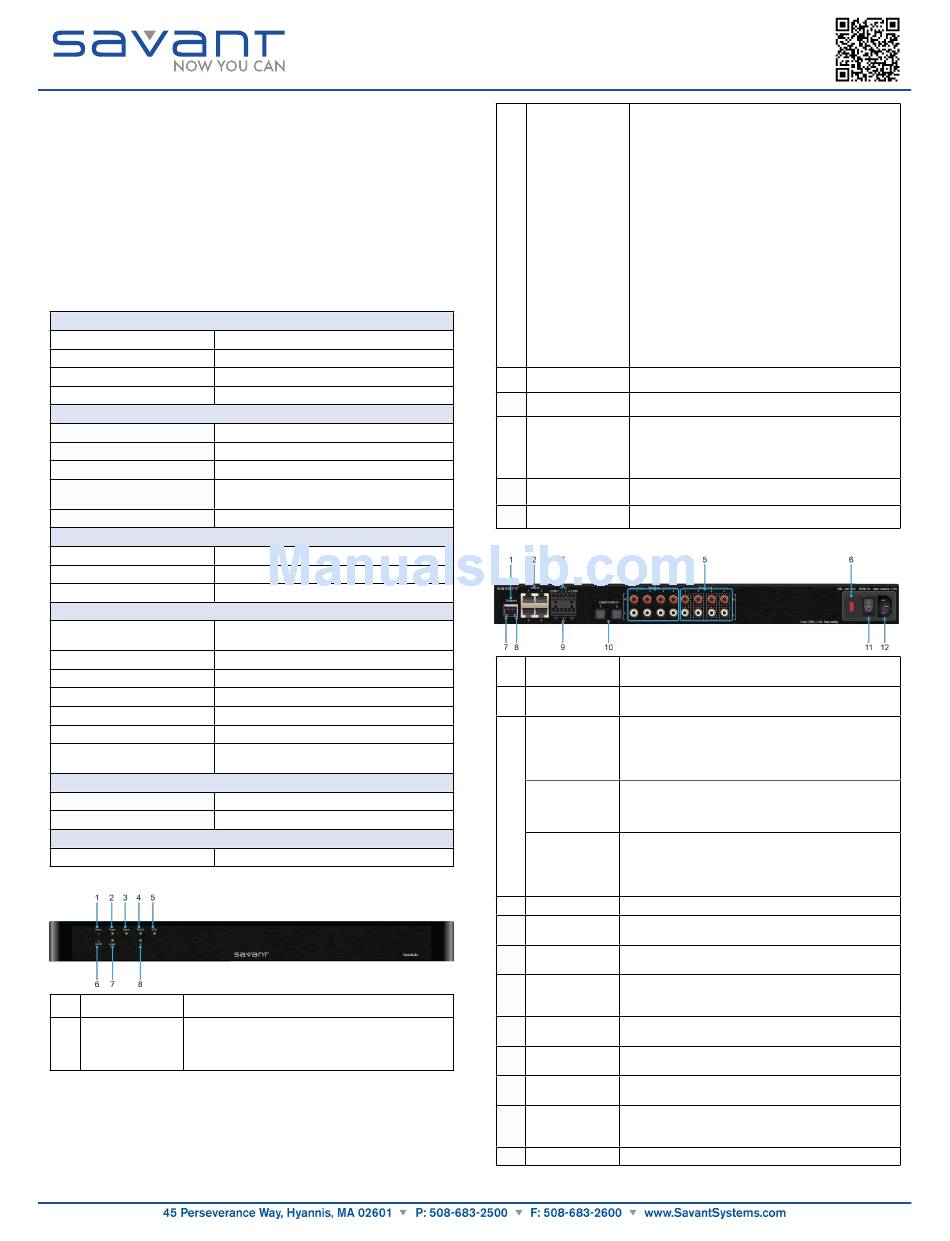

Savant SSA-4004 Quick Reference Manual

This Quick Reference Guide provides all the steps necessary to install the SSA-4004-
xx. The SSA-4004 is a 6 x 4 audio matrix switcher and controller in a 1U rack-
mountable design.

Box Contents

(1) SSA-4004-00
(1) Installation Kit (075-0144-xx)
(2) 1U Rack Mounting Brackets (071-0603-xx)
(4) Phillips Screws for Brackets (M3 x 8MM Flat) (039-0017-xx)
(2) 6-Pin Screw Down Plug in Connector (028-9352-xx)
(1) Power cord C13 (6 feet) (N. America) (064-0079-xx)
or appropriate international power cord
(1) Quick Reference Guide (this document)
Required System Component
(1) Savant Smart Host or Savant Pro Host

Specifications

Environmental Environmental
Temperature
Humidity
Cooling
Maximum BTUs
Dimensions and Weight Dimensions and Weight
Height
Width
Depth
Weight
Rack Space
Power Power
Input Power
Nominal Power
Maximum Power
Stereo Preamp Parameters Stereo Preamp Parameters
Total Harmonic Distortion +
Noise (THD+N)
Dynamic Range
Signal-to-Noise Ratio (SNR)
Frequency Response
Output Impedance
Crosstalk
Supported Sample Rates
Compliance Compliance
Safety and Emissions
RoHS
Minimum Supported Release Minimum Supported Release
Savant OS

Front Panel

Resets Static IP address. Insert pin into hole for 5 seconds
1 Reset button (hole)
to reset.
Green indicates the system has adequate power and is
operating normally.
2 Power Bi-color LED
Red indicates the system is in standby mode. In standby
most of the Controller circuitry is powered down.
Off indicates that the system is getting no power.
SSA-4004-00 | 009-1199-00 | 140509
SmartAudio 6 x 4 Audio Matrix
Quick Reference Guide
32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity (non-condensing)
3 cubic feet per minute (CFM) recommended.
61 BTUs per hour
1.71 in (4.34 cm)
17.30 in (43.94 cm)
8.69 in/22.08 cm
Net: 5.25 lb (2.38 kg)
Shipping: 7.8 lb (3.54 kg)
1U
100-240V AC, 50/60 Hz, (1.8 Amp maximum)
12 watt
18 watt
<0.005%, 20Hz - 20KHz, -100dB@1kHz
115dB
>105dB
20Hz - 20kHz +0dB +/-0.1dB
50 ohms
<-80dB
44.1 kHz/48 kHz/96 kHz/192 kHz at 16-bit or 24-
bit resolution
FCC Part 15 | S Mark | CE Mark | C-Tick
Compliant
da Vinci 6.0.1
Savant Confidential and Proprietary
(SSA-4004)
3 Status Bi-color LED
RS-232 LED
4
5 GPIO LED
6 On/Off button (hole)
7
HDMI LED
8
IR LED

Rear Panel

1 Ethernet
RS232/422/485
2
(1-4)
GPIO (1-4)
GPIO Input
3 3 3
GPIO Output
4 Stereo In
5 Stereo Out
6 Fuse
7 Link/Activity LED
Ethernet Speed
8
LED
9 IR (1-3)
10 Digital Audio In
11 I/O
12 Input Power
Scan this QR code for additional
product information.
Green indicates the Host has established
communications with the embedded system.
Green flashing indicates the embedded system is ready
(running with DHCP IP address), but the Host has not
established communications with the embedded system.
Off indicates the embedded processor is resetting or is
powered up; and is booting the embedded firmware.
Red indicates the Host has determined the firmware
needs to be updated, but a problem occurred during the
process that will initiate a reset.
Red flashing indicates the embedded firmware is
running, but has not received a DHCP IP Address.
Amber indicates the Host is currently updating the
embedded firmware.
Amber flashing indicates the embedded system has a
valid link-local IP Address and is waiting to connect to
the Host.
Hardware Failure
If the Controller has a hardware failure, the Status LED
indication will be interrupted every 3 seconds with a solid
red indication. For example, if the LED is flashing green
when a hardware failure occurs, the LED will flash green,
solid red, etc in 3 second intervals.
Green indicates RS-232 serial port data activity.
Off indicates no RS-232 serial port activity.
Green indicates GPIO port signal activity.
Off indicates no GPIO port activity.
Insert pin into hole for about 5 seconds to place into standby
mode. The Power LED turns red. Insert the pin again for
about 1 second to take system out of standby mode. The I/O
power switch on the back of Controller must be On (I) to
enable this function. To turn the power off for the entire
system, use the switch on the rear panel.
HDMI not included with the SSA-4004 - This LED is not
functional.
Green indicates IR port signal activity.
Off indicates no IR port activity.
RJ-45 10/100 Base-T, auto-negotiating port with Link/
Activity and Speed LEDs.
RJ-45 ports used to transmit and receive serial binary
data transmission.
General Purpose Input and Output ports. Uses 6-pin
screw-down connector.
The digital GPIO ports are binary I/O ports used for
contact closure, trigger (output), or detect (input). The
COM pin is used for common ground.
When configured as an input, the port detects a voltage
present. GPIO inputs can safely detect the presence of a
voltage 0-30V DC with a threshold of approximately 2.4V
DC.
When configured as an output, a GPIO port outputs a
voltage below 12V DC. The maximum current per port is
150 milliamps. The combined maximum current for all
GPIO outputs is 550 milliamps. An overcurrent condition
shuts down the output if that number is exceeded.
4 Analog Audio Inputs (4 Right and 4 Left)
4 Stereo line-level audio outputs (4 Right and 4 Left RCA
jacks)
100-240V, 2.5A—Fast acting fuse. This is field-
replaceable.
Green
indicates an Ethernet link has been established.
Green flashing
indicates Ethernet activity.
Off
indicates an Ethernet link has not been established.
Green indicates an Ethernet speed of 100 Mb.
Infrared transmitter ports. Uses 6-pin screw down
connector. (3.81 mm each).
Receives stereo PCM signal from TosLink digital audio
connection.
On/Off switch -
I is used to power the controller to the On state.
O is used to power the controller to the Off state.
100-240V AC, 50/60 Hz, 1.8 Amp
1 of 2
