Savant SmartMediaPro-6 SSP-0600-00 Quick Reference Manual

SmartMediaPro 6 Controller
Quick Reference Guide

Box Contents

(1) SmartMediaPro 6 (SSP-0600-00)
(1) Installation Kit (075-0100-xx)
(2) 9-pin Screw Down Plug-In Connector (028-9353-xx)
(2) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 6 ft Power Cord (064-0079-xx)
(1) 3 ft Locking HDMI Cable (064-0394-00)
(2) Module Removal Tool (071-0268-xx)
(2) Rack Mounting Bracket (6U) (071-0192-xx)
(6) M5 x 8 mm Flat Phillips Screw (039-0180-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% RH (non-condensing)
25 cubic feet per minute (CFM) recommended.
Cooling
Note that each chassis has fans pushing 36 CFM.
Maximum BTU 512 BTU/hr
Noise Normal Operation condition: 52 dB Average
Dimensions and Weight Dimensions and Weight
Height 5.21 in (13.23 cm)
Width 17.30 in (43.94 cm)
Depth 24.91 lb (11.3 kg)
Net: 21 lb (9.5 kg)
Weight
Shipping: 26 lb (11.7 kg)
Rack Space 3U
Power Power
Power Supply 100 – 240V AC 3A 50/60 Hz
Maximum Power 200 Watts
Compliance Compliance
Safety and
FCC Part 15 | CE Mark | C-Tick | S-Mark
Emissions
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 4.3.2
SSP-0600-00 | 009-0404-05 | 150318 SSP-0600-00 | 009-0404-05 | 150318
Copyright © 2015 Savant Systems, LLC

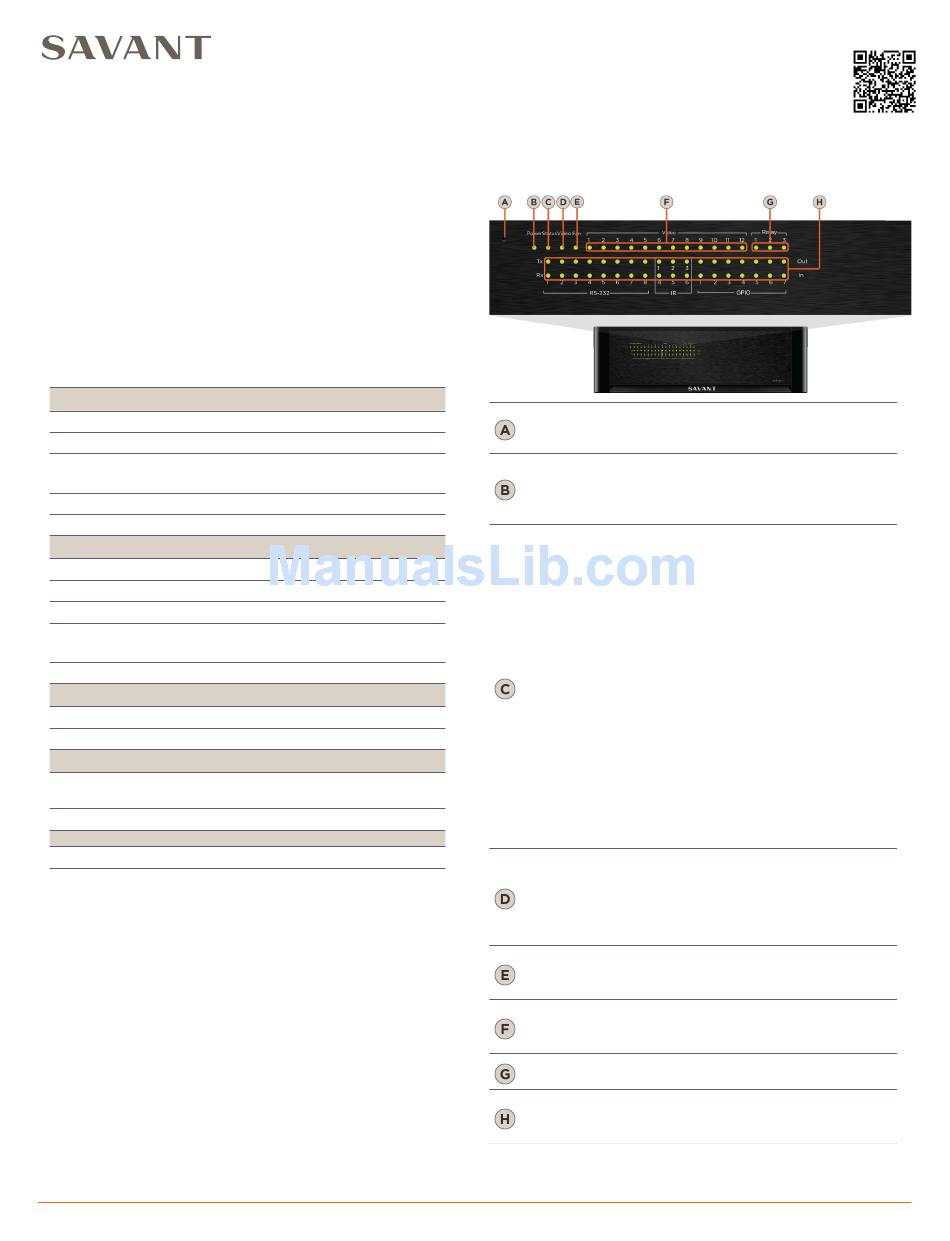

Front Panel

Insert pin into hole
Standby
powered On by rear switch to place controller in
Power (hole)
or out of Standby mode.
Green: System has adequate power and is
operating normally.
Power LED
Red: System is in standby mode.
Off: System is not receiving power.
Green: SSP-0600 is operating normally.
Green Flashing: Controller has a DHCP or static
IP Address. Connecting to host.
Off: Unit is rebooting
Red: Firmware update has failed and unit will be
rebooted.
Red Flashing: No IP Address/Connecting to
Network.
Amber: Firmware update in process.
Amber Flashing: Controller has a link-local IP
Status LED
Address and is connecting to the host. This
applies to controllers that are not connected to
an active router and may be connected directly
to a host.
Hardware Failure
Status LED indication will be interrupted every 3
seconds with a solid Red indication. For example,
if the LED is flashing Green when a hardware
failure occurs, the LED will flash Green, solid Red,
etc., in 3 second intervals.
Off: HDCP keys received are valid. Encrypted
video content remains protected.
Red Flashing: HDCP keys are invalid. Encrypted
Video LED
video content is unprotected. Video may still be
present as this state only indicates that HDCP
sync has been lost.
Off: Video output port is functional.
Fan LED
Green: Video output port not functioning due to
an error.
Off: Video output port is functional.
Video Port
Green: Video output port not functioning due to
LEDs
error.
Green Indicates relay activity on the associated
Relay
ports on the rear of the unit.
RS-232/422/485, IR, and GPIO
Control Status
Green Indicates activity on the associated ports
LEDs
on the rear of the unit.
1 of 4
For Product Info
and hold for 5 seconds while
45 Perseverance Way, Hyannis, MA 02601
savant.com | 508.683.2500
