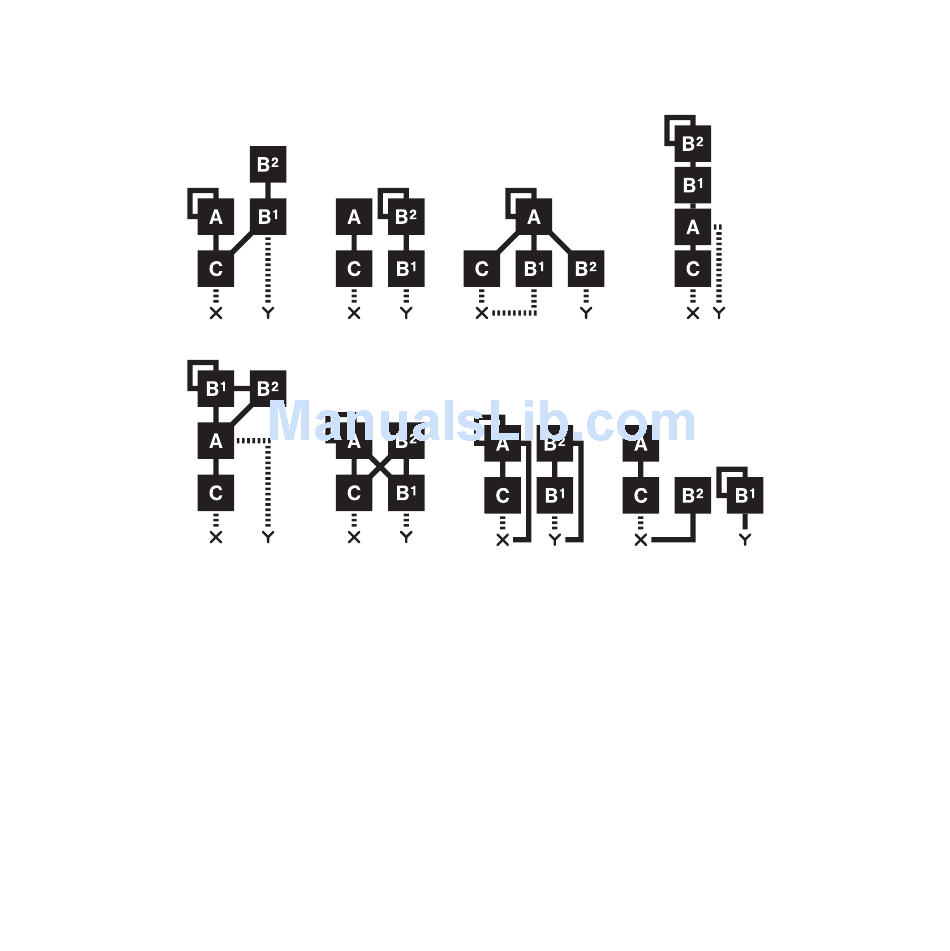

the MIX parameter to mix between these outputs so that you can cross-fade between two
separate timbres.
The lines going to X and Y indicate the output from a carrier. The sound from these out-
puts is then routed via the overdrive to the filters.

8.4 HARMONICS

The default output from an operator is a sine wave, but you can use the HARM parameter
to add upper partials to some of the operators sine waves to create more harmonically
rich waveforms. The HARM parameter is bipolar. Negative parameter values change the
harmonics of operator C, while positive parameter values change the harmonics of opera-
tors A and B1.
1 2
5 6
3 4
7 8
29
