4. THE USER INTERFACE

The screen shows all the information needed for real-time interaction and editing on the
Digitone. The eight DATA ENTRY knob parameters shown varies depending on which

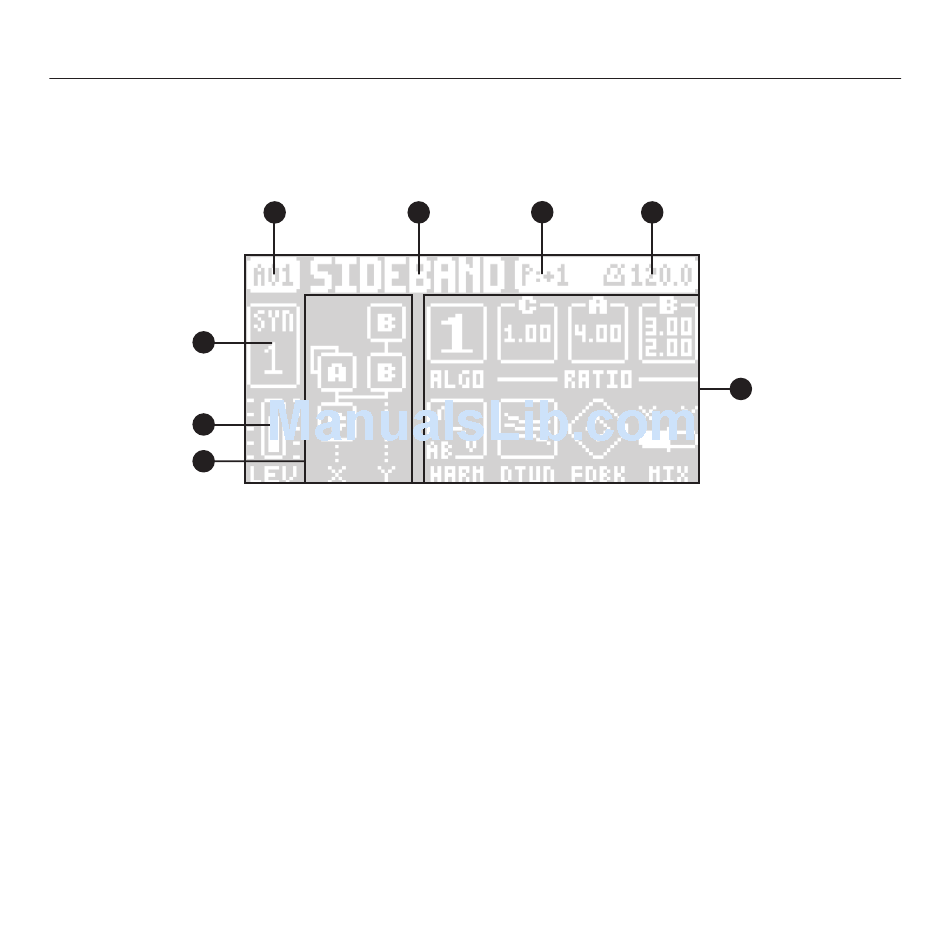

parameter page you have selected. Below is the main interface screen of the SYN1 page.
8
7
6
1. Bank and pattern.
2. Pattern name.
3. Pattern/Track transpose.
4. Tempo.
5. Eight track parameters. They show what parameters the DATA ENTRY knobs control
and the current parameter values.
6. FM algorithm (Displayed on the SYN1 and SYN2 pages).
7. Track volume level. Use the LEVEL/DATA knob to change the level.
8. Track number and track type. Synth (SYN) track or MIDI (MID) track.
4.1 SCREEN NAVIGATION
Use the [ARROW] keys [UP], [DOWN], [LEFT] or [RIGHT] to navigate menus or
sub-menus. The LEVEL/DATA knob is used to scroll through menus and lists quickly.
1 2 3 4
5
