22. [STOP] stops playback. The secondary function is a paste operation.
23. [MIDI] activates the MIDI editing mode where you can edit the MIDI tracks. A lit [MIDI]
key indicates the MIDI editing mode is active. The secondary function opens the MIDI
CONFIG menu.
24. [FUNC] key. Press and hold [FUNC], and then press another key to access the sec-
ondary function of that key. The blue-green text on the Digitone front panel shows the
keys secondary functions.
25. LEVEL/DATA sets the overall volume level of the active track. You can also set param-
eters and scroll through lists. The secondary function opens the SOUND BROWSER.

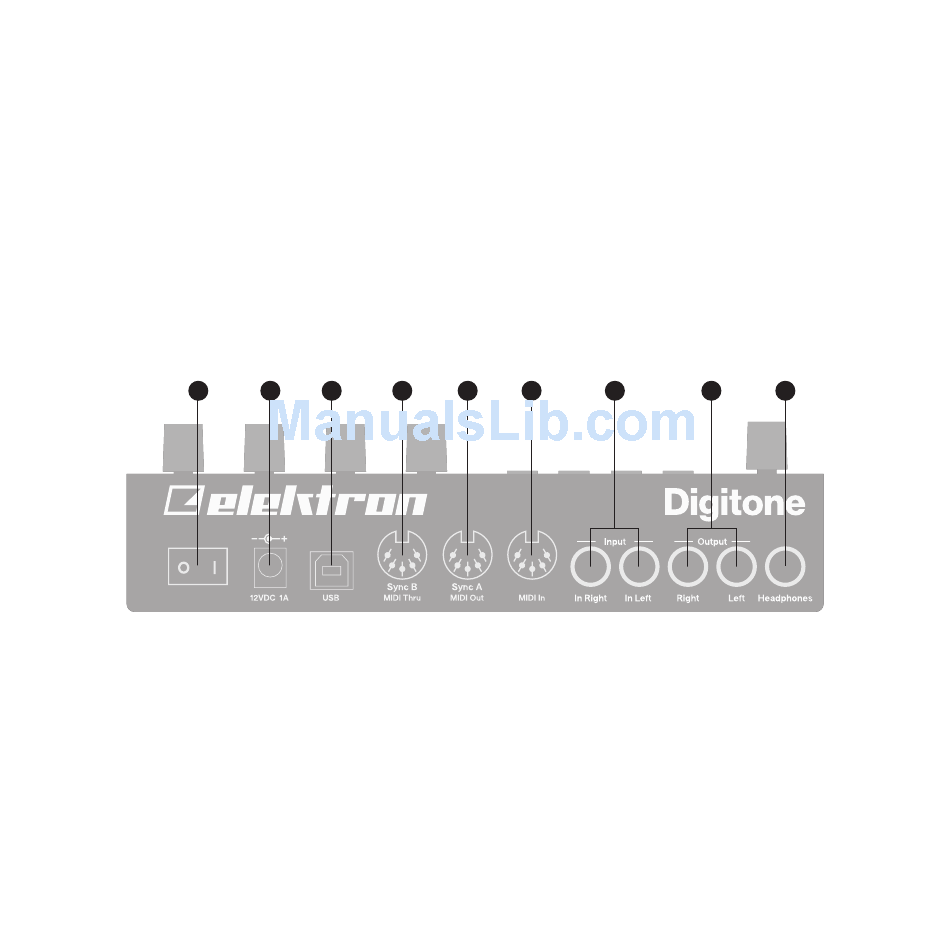

2.2 REAR PANEL CONNECTIONS

1. POWER Switch for turning the unit on and off.
2. DC In, Input for power supply. Use the included PSU-3b power adapter, connected to
a power outlet.
3. USB For connecting the unit to a computer. For MIDI-control or Overbridge use. Use
the included A to B USB 2.0 connector cable to connect to a computer host.
4. MIDI THRU/SYNC B Forwards data from MIDI IN. Can also be configured to send DIN
sync to legacy instruments. Use a standard MIDI cable to connect another MIDI device
in the chain.
14
1 2 3 4 5 6 7 8 9
