- Page 1 M101BK Rugged Windows Tablet Intel® Quad-Core™ N2930 Bay Trail-M Windows 10 IoT Enterprise Quick Start Guide Version 1.0 Document Part Number: 9152101K100S Please read this instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
Rugged Windows Tablet M101BK Contents Read Me First Advisory Conventions Safety Information Handling and Maintenance Introduction Unpacking Description of Parts Indicators Hotkey for Specific Functions Getting Started Installing Battery Charging Your Tablet Starting the Tablet Operating the Device Using Winset Utility... -
Page 3: Read Me First
Read Me First Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. Note: A note is used to emphasize helpful information Important: An important note indicates information that is important for you to know. -
Page 4: Safety Information
Read Me First Safety Information Precaution on Battery Pack Do Not Expose the Battery Pack to Excessive Heat, Précaution avec le bloc-pile or Extreme Heat (Near Fire, in Direct Sunlight for example) Generation of heat, ignition or rupture may result [FR] Ne pas exposer le bloc-pile à... -
Page 5: Handling And Maintenance
Read Me First General Product Safety Use only with its transport carriage, stand, tripod, Sécurité générale des console or table specified by the manufacturer or sold with the product. When using a carriage, produits move the carriage assembly with the product carefully to avoid damage from falling over. - Page 6 Rugged Windows Tablet M101BK The screen surface can be easily scratched. Use a soft cloth to remove dirt on the display. Use with care. Do not use paper towels to The touchscreen surface has a special clean the display but use the included cleaning protective coating that prevents dirt from cloth.
-
Page 7: Introduction

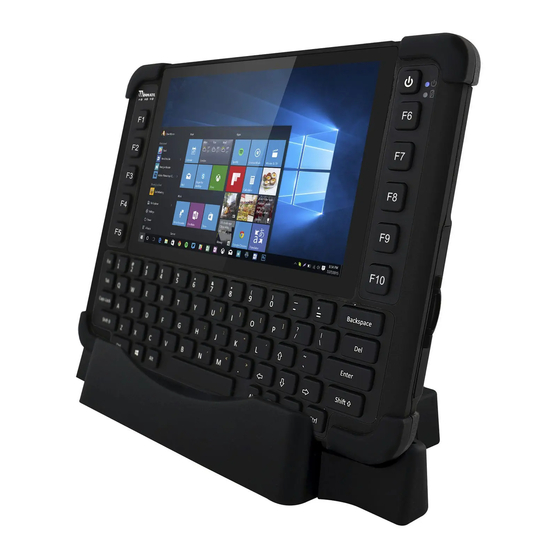

Congratulations on purchasing Winmate® 10.1-inch Rugged Windows Tablet Computer M101BK. M101BK is a rugged tablet PC with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Intel's quad core N2930 Bay Trail-M processor paired with genuine Intel graphics for high performance. -
Page 8: Description Of Parts
Rugged Windows Tablet M101BK Description of Parts Front: Right: Item Description Item Description Micro HDMI HDMI output to external Displays and acts as one display. Touch Screen of the inputs for the computer. LAN/RS232 Adapter port for LAN/RS232 connector. Power Button Power on/off computer. - Page 9 Introduction Rear: Top: Bottom: Item Description Item Description Optional Barcode Scanner for Expansion Provide optional connectivity Barcode reading of 1D/2D barcode. Port to custom modules for Reader special application (USB2.0 x 1, RS232 x 1). Kensington Provides lock access for Lock Port Kensington Lock.
-
Page 10: Indicators
Rugged Windows Tablet M101BK Indicators Item Description Power Indicator Blue– Tablet is ON No light– Tablet is OFF Battery Status Orange–AC adapter is plugged in and charging Green–AC adapter is plugged in and battery is full charged Solid Red - Low battery (<10%) Blinking Red –... -
Page 11: Getting Started
Getting Started Getting Started To get started: 1. Install the battery. 2. Charge your tablet. 3. Start the tablet. Installing Battery To install the battery pack: 1. Disconnect any cords connected to the tablet computer. 2. Turn the tablet over, back facing up. 3. -
Page 12: Starting The Tablet
Rugged Windows Tablet M101BK To connect a tablet to AC power: 1. Open I/O protective cover by pulling out the latch. 2. Plug the DC cord of the AC adapter into the power jack of the tablet computer. 3. Plug the AC power cord into the AC adapter. -
Page 13: Operating The Device
Operating the Device Using Winset Utility Winset ® is a program to control the main functions of the M101BK. In Winset you can check system information, control function button settings, and configure blanking function, scanner wedge and settings. Long-press Fn + F1 function key to open Winset. -
Page 14: Changing Touch Mode
Rugged Windows Tablet M101BK Item Description Review Review Opens Camera settings page. Available Settings: Settings Picture Save: modify/inspect saved location for pictures. Video Save Folder: modify/inspect saved location for video recordings. Picture Quality: Picture compression quality. Flash Control Enables/ Disables LED Flash when taking picture. -
Page 15: Using Bluetooth
Operating the Device Using Bluetooth Your device has integrated Bluetooth capabilities for short-range wireless communication between Bluetooth- enabled devices. You can transfer files, playback audio, configure virtual serial ports, and share network connection via Bluetooth. By default, the Bluetooth feature is enabled as indicated by the Bluetooth icon on the taskbar. -
Page 16: Using Wi-Fi
Rugged Windows Tablet M101BK Using Wi-Fi By default, the wireless antenna is turned on. To turn on the wireless antenna: Click the wireless network connection status icon in the Windows notification area. A list of available wireless networks is displayed. -
Page 17: Using Wwan
Operating the Device Using WWAN The M101BK supports data connection with LTE modules and supports Micro-SIM cards. (Note: LTE feature is optional). To enable WWAN: Please insert the Micro-SIM card into your Tablet Computer. Check the wireless WAN connection status through the Cellular status icon in Windows notification area. -
Page 18: Replacing Hot Swappable Battery
Tap on the ON button. Open the application where barcode reader will be displaying the scanned barcode. Trigger the barcode reader by pressing Fn2 function key on the back of M101BK. Replacing Hot Swappable Battery The rugged tablet supports hot-swapping of batteries, meaning the tablet doesn’t need to be powered off in order to replace the main battery. -
Page 19: Basic Troubleshooting
Basic Troubleshooting Basic Troubleshooting Problem Solution The removable battery is Make sure the AC adapter is properly connected, and that the removable not charging. battery is properly inserted. The tablet computer may be in sleep mode. Press the power button to wake Nothing appears on the up the display. - Page 20 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2018 Winmate Inc. All rights reserved.
