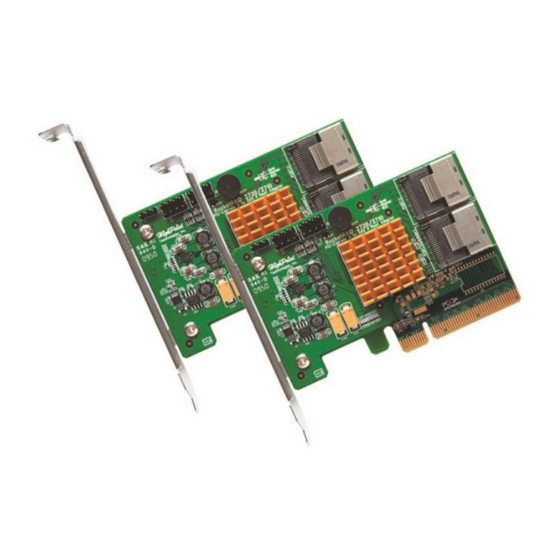

- Page 1 RocketRAID 2720C2 Quick Installation Guide V1.00 Nov. 12, 2013...
-
Page 2: Table Of Contents
Table of contents HighPoint RocketRAID 2720C2 -Cross-Sync RAID Solution ......3 Kit Contents ................3 Installing the RocketRAID 2720C2 Host Adapters ........3 Prepare the RocketRAID 2720C2 ............4 Driver Installation (Windows) ............5 WebGUI Installation (Windows) ............5 Driver Installation (Linux) ..............6 WebGUI Installation (Linux) ............. -
Page 3: Highpoint Rocketraid 2720C2 -Cross-Sync Raid Solution
HighPoint’s 6Gb/s Cross-Sync RAID Solution aims to revolutionize DAS applications. Cross-Sync synchronizes up to two RocketRAID 2720C2 controller cards to work as a single RAID storage unit. The Cross-Sync RAID Solution provides 16 SAS/SATA6Gb/s Ports over a Dual PCIe x8... -
Page 4: Prepare The Rocketraid 2720C2
Prepare the RocketRAID 2720C2 Before using the each RocketRAID 2720C2 HBA, a BIOS update is required. Download the corresponding software package from the official RocketRAID 272C2 product page, and follow the steps below: Launch True DOS environment Switch to the BIOS package directory and run following command (do not include the quotation marks): "Load RR2720c.v10 /q"... -
Page 5: Driver Installation (Windows)
Double-click “Setup.exe” to start installation. If you are running a 64-bit version of Windows, you may need to right-click the icon, and select “Run as Administrator.” Click “Run” to continue. The HighPoint Web RAID Management Service install screen will display. Chick “Next” to continue. -
Page 6: Driver Installation (Linux)
Driver Installation (Linux) HighPoint provides an open source driver package for Linux platforms. Download the corresponding driver package from the official RocketRAID 2720C2 product page, and extract the contents to the directory of your choice. Please refer to the included README file for instructions. - Page 7 Customer Support ontact Information and C If you encounter any problems while utilizing the RocketRAID host adapter, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support. Web Support: http://www.highpoint-tech.com/websupport/ E-mail address: suppprt@highpoint-tech.com...
-
Page 8: Fcc Part 15 Class B Radio Frequency Interference Statement
FCC Part 15 Class B Radio Frequency Interference statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
