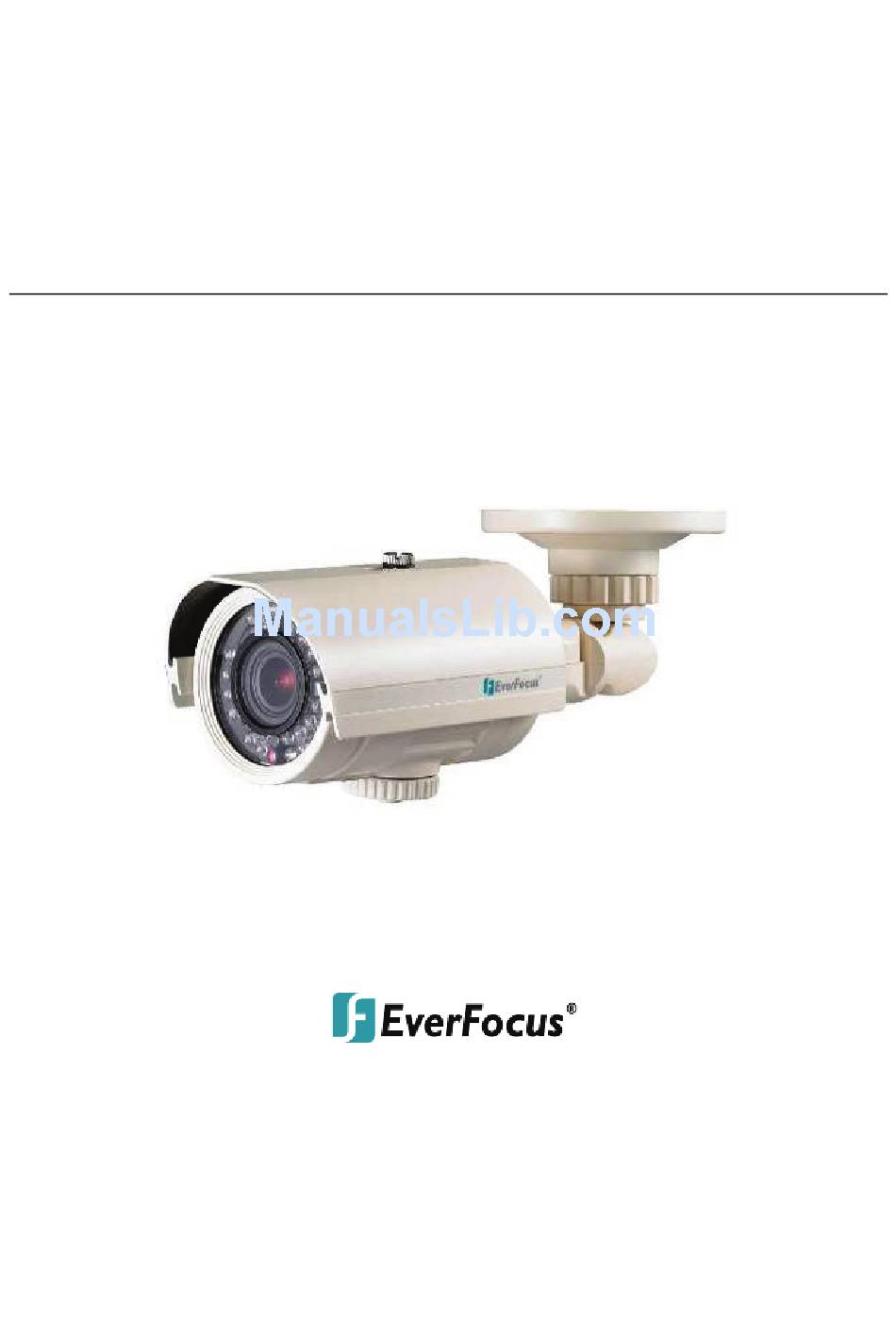

  • Page 1 EZ655p IR Day/Night plus WDR IP66 Bullet Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: January, 2013...
  • Page 2 Cautions 1. Do not install the camera near electric or magnetic fields. 2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. 3. Try to avoid facing the camera toward the sun. 4.
  • Page 3 EZ655p 1. INTRODUCTION Based on Sony Effio-P platform, the EZ655p is a bullet camera providing 700 TVL with Sony’s 1/3'' 960H image sensor. The double scan WDR (Wide Dynamic Range) technology enables the camera to get detailed information from the dark part of the image without saturation from the bright part, which provides clear images under back light circumstances where intensity of illumination can vary excessively.
  • Page 4 EZ655p PACKAGE CONTENTS 1. Camera x 1 2. Camera Base x 1 3. User Manual x 1 4. Power Adaptor Pigtail x 1 5. Test Lead x 1 6. Accessory Kit x 1 (Hexagon Wrench x 1, L-Type Wrench x 1, Hexagon...

  • Page 5: Optional Devices

    EZ655p CABLE DEFINITIONS Video-Out Cable Power Cable Test Lead Power Adaptor Pigtail Cable Name Description Video-Out Cable (BNC) Connects to a DVR or a monitor. Connects to the 12 VDC / 24 VAC~ power source. Power Cable You can optionally use the supplied Power Terminal Block or a power adapter.

  • Page 6: Specifications

    EZ655p 2. SPECIFICATIONS Pickup Device 1/3" SONY 960H WDR CCD Video Format NTSC / PAL Picture Elements 976 x 494 (NTSC), 976 x 582 (PAL) Horizontal Resolution 700 TVL 0.03 Lux at F=1.2 0.00006 Lux at F1.2/Sens-up 512x Sensitivity 0 Lux (IR on)
  • Page 7 EZ655p Vandal Resistant Power Source 12 VDC / 24 VAC~ ; 12 VDC 12 VDC: 7.2W max. (IR on) Power Consumption 12 VDC: 14.5W max. (IR + Heater on) 12 VAC~:6.5W max. (IR on) Operating -10°C~50°C / 14°F~122°F (Dual voltage model) Temperature -40°C~50°C / -40°F~122°F (12 VDC with heater)
  • Page 8 EZ655p 3. INSTALLATION 1. Loosen the screw on the sunshield and push the rear of the sunshield to the front. Sunshield Screw 2. Adjust the sunshield to an appropriate position and tighten the screw. 3. Screw through the four black holes on the Camera Base to the wall / ceiling using the Mounting Screws.
  • Page 9 EZ655p 5. Connect the Power Cable to the 12 VDC /24 VAC~ power source using the supplied Power Adaptor Pigtail or a power adapter. Connect the Video-Out Cable to a DVR or a monitor. Video-Out Cable Power Adaptor Pigtail Power Cable 6.
  • Page 10 EZ655p 8. Connect the camera to a portable monitor using the test lead for accessing and adjusting the camera view. Test Lead 9. Peel off the plastic paper on the lens. 10. Adjust the 3-Axis Bracket to get the desired viewing angle, and screw the 3-Axis Bracket using the supplied hexagon wrench.

  • Page 11: Osd Operation

    EZ655p 4. CAMERA SETUP in the OSD MENU OSD Operation SETUP MENU 1/3 SETUP MENU 3/3 SETUP MENU 2/3 LENS AUTO↵ HLC/BLC SYNC ↵ SHUTTER/AGC AUTO↵ DAY/NIGHT CAMERA ID AUTO↵ PICT ADJUST LANGUAGE ENGLISH ↵ EZOOM ↵ WHITE BAL MANUAL↵...

  • Page 12: Auto Setup

    EZ655p 4.2.2 SHUTTER/AGC This function is used to select Auto or Manual shutter speed control. SETUP MENU 1/3 AUTO↵ LENS AUTO↵ SHUTTER/AGC PICT ADJUST ↵ WHITE BAL MANUAL↵ ↵ 2D.3DNR ↵ NEXT↵ SAVE ALL EXIT↵ High Luminance 【Mode】: Shut + Auto Iris mode.
  • Page 13 EZ655p 【Mirror】 : Select Off, Flip Vertical, Flip Horizon or Flip Horizon and Vertical. 【Contrast】: Adjust the contrast level (0-63). 【Sharpness】: Adjust the sharpness level (0-15). 【Hue】: Adjust the hue level (0-100). 【R-Gain】: Adjust the red color gain level (0-161).
  • Page 14 EZ655p User2: Select this preset mode for indoor environments under fluorescent lighting. You can optionally change the B-Gain (0-255) and the R-Gain (0-255) values. Anti CR (Color Rolling Suppression): Select this mode to suppress color rolling incidents. Manual: The B and R gain values for manual W/B are set on this screen. Select LEVEL UP to induce change to high color temperature side;...
  • Page 15 EZ655p 4.2.6 2D.3DNR The higher the level of 2D.3DNR is, the better the noise removal effect will be, but the ghost effect may show up. SETUP MENU 1/3 2D.3DNR SETUP LENS AUTO↵ LEVEL SHUTTER/AGC AUTO↵ PICT ADJUST ↵ WHITE BAL MANUAL↵...
  • Page 16 EZ655p 4.2.8 DAY/NIGHT You can select Color or Auto (with submenu) mode to configure the picture to be displayed either in color or black and white. DAY/NIGHT SETUP SETUP MENU 2/3 HLC/BLC ↵ BURST DAY/NIGHT AUTO↵ DELAY CNT EZOOM ↵...

  • Page 17: Camera View

    EZ655p 4.2.9 EZOOM You can configure Magnify, Pan and Tilt settings in this menu. SETUP MENU 2/3 EZOOM SETUP HLC/BLC ↵ DAY/NIGHT AUTO↵ EZOOM ↵ TILT PRIVACY ↵ MOTION DET NEXT↵ BACK↵ RETURN↵ SAVE ALL EXIT↵ 【Mag】: Digital zoom (0-255) 【Pan】: Left / Right control (0-1023).
  • Page 18 EZ655p 【Mode】: Select On to set up the following settings. 【Position】: Enter this submenu to set up the position of the mask. The small blue square represents the four points of the mask quadrangle. Move the blue square to where you want the first point of the quadrangle to be and press the button.

  • Page 19: Osd Menu

    EZ655p 4.2.14 CAMERA ID You can set up a title for the camera, and the name will be displayed on the screen. CAMERA ID SETUP SETUP MENU 3/3 SYNC CAMERA ID ON↵ LANGUAGE ENGLISH ABCDEFGHIJKLMNOPQRSTUV DEFECT ADJ ↵ WXYZ0123456789-!”#$%&’ CAMERA RESET ()_`,￥:;<=>?@\^*.x+/...
  • Page 20 EZ655p 4.2.16 DEFECT ADJ This function allows the camera to detect and correct white pixels on CCD. SETUP MENU 3/3 DEFECT ADJ SYNC DETTH CAMERA ID ON↵ DETPGAIN LANGUAGE ENGLISH START ↵ DEFECT ADJ ↵ CAMERA RESET BACK↵ RETURN↵ SAVE ALL EXIT↵...

  • Page 21: Osd Menu Structure

    EZ655p OSD MENU STRUCTURE The default value is marked with a star “*”. No. Main Sub Menu Sub Menu / Function Type Auto* Mode Auto*, Open, Close Lens Speed 0-255 (default=75) Manual Mode Shut + Auto Iris High Luminance Brightness...
  • Page 22 EZ655p 0-100 (default=50) R-Gain 0-255 (default=161) B-Gain 0-255 (default=161) Speed 0-255 (default=5) Delay CNT 0-255 (default=5) ATW Frame x0.50, x1.0, x1.5*, x2.0 Environment Indoor*, Outdoor Push B-Gain 0-255 (default=28) User1 White R-Gain 0-255 (default=53) Balance B-Gain 0-255 (default=43) User2 R-Gain...
  • Page 23 EZ655p Exton Delay CNT 0-255 (default=3) Polarity Active Low, Active High* 0-255 (default=0) E-Zoom 0-1023 (default=512) Tilt 0-511 (default=256) Off*, On Area Select 1/15-15/15 (default=1/15) Mode Off*, On Position Next: Push Enter (x 3 points), Exit: Push Enter Privacy Color...
  • Page 24 FAX: +86 755 2765 0337 www.everfocus.com.cn www.everfocus.com.cn marketing@everfocus.com.cn marketing@everfocus.com.cn EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, Duarte, CA 415 Oser Avenue, Unit S, Hauppauge, NY 91010, USA 11788, USA TEL: +1 626 844 8888...
