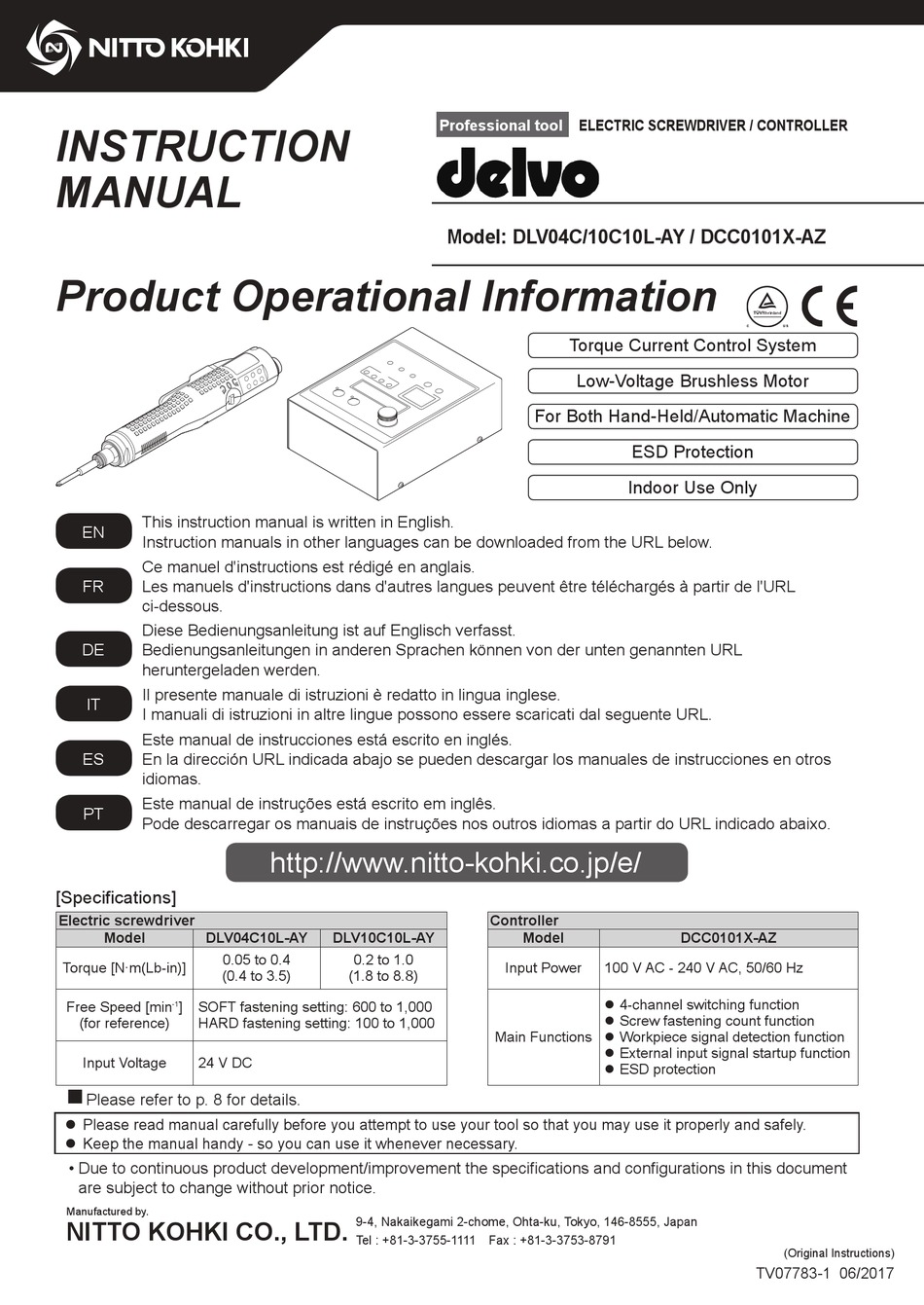

Nitto Kohki DLV04C10L-AY Instruction Manual

Delvo electric screwdriver/controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION
MANUAL
Product Operational Information
This instruction manual is written in English.
EN
Instruction manuals in other languages can be downloaded from the URL below.
Ce manuel d'instructions est rédigé en anglais.
FR
Les manuels d'instructions dans d'autres langues peuvent être téléchargés à partir de l'URL
ci-dessous.
Diese Bedienungsanleitung ist auf Englisch verfasst.
DE
Bedienungsanleitungen in anderen Sprachen können von der unten genannten URL
heruntergeladen werden.
Il presente manuale di istruzioni è redatto in lingua inglese.
IT
I manuali di istruzioni in altre lingue possono essere scaricati dal seguente URL.
Este manual de instrucciones está escrito en inglés.
ES
En la dirección URL indicada abajo se pueden descargar los manuales de instrucciones en otros
idiomas.
Este manual de instruções está escrito em inglês.
PT
Pode descarregar os manuais de instruções nos outros idiomas a partir do URL indicado abaixo.
[Specifications]
Electric screwdriver
Model
DLV04C10L-AY
0.05 to 0.4
Torque [N∙m(Lb-in)]
(0.4 to 3.5)
Free Speed [min
]
SOFT fastening setting: 600 to 1,000
-1
(for reference)
HARD fastening setting: 100 to 1,000
Input Voltage
24 V DC
n
Please refer to p. 8 for details.
z Please read manual carefully before you attempt to use your tool so that you may use it properly and safely.
z
z Keep the manual handy - so you can use it whenever necessary.
z
• Due to continuous product development/improvement the specifications and configurations in this document
are subject to change without prior notice.
Manufactured by.
NITTO KOHKI CO., LTD.
Professional tool
http://www.nitto-kohki.co.jp/e/
DLV10C10L-AY
0.2 to 1.0
(1.8 to 8.8)
9-4, Nakaikegami 2-chome, Ohta-ku, Tokyo, 146-8555, Japan
Tel : +81-3-3755-1111 Fax : +81-3-3753-8791
ELECTRIC SCREWDRIVER / CONTROLLER
Model: DLV04C/10C10L-AY / DCC0101X-AZ
Torque Current Control System
Low-Voltage Brushless Motor
For Both Hand-Held/Automatic Machine
Controller
Model
Input Power
100 V AC - 240 V AC, 50/60 Hz
z 4-channel switching function
z
z Screw fastening count function
z
Main Functions
z Workpiece signal detection function
z
z External input signal startup function
z
z ESD protection
z
ESD Protection
Indoor Use Only
DCC0101X-AZ
(Original Instructions)
TV07783-1 06/2017
