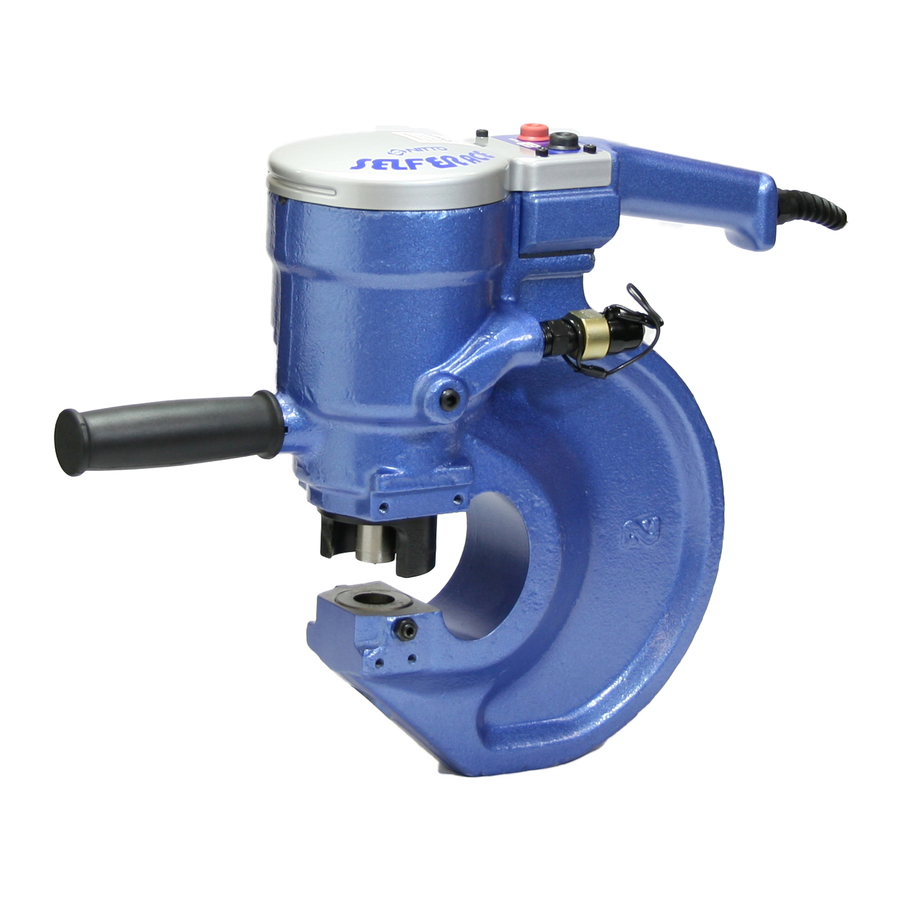

PORTABLE DOUBLE ACTION HYDRAULIC PUNCHER
Please read this manual carefully before you attempt to use your
tool so that you may use it properly and safely.
SELFER ACE
Model HS06-1322, HS07-1624, HS11-1624
PROFESSIONAL TOOL
Punching
Capacity
Hole Making Time ※ (Pump:HPD-05)
Allowable max. pressure
※The Hole Making Time may be varied by the hydraulic oil temperature at the time of operation.
Due to continuous product development/improvement the specifications and configurations in this
document are subject to change without prior notice.
Keep the manual handy – so you can use it whenever necessary.
Specifications
Model
Max. Throat Depth
Mild Steel
Max. Punching
Thickness
Stainless Steel
Max. Punching Diameter
Max. Output
Ram Stroke
Mass (Weight)
HS06-1322 HS07-1624 HS11-1624
60mm
70mm
13mm
16mm
6mm
6mm
22mm
24mm
7.9sec
11.8sec
68.65MPa
357KN
464KN
21mm
25mm
20.5Kg
25.5Kg
Manufactured by :
NITTO KOHKI Co., Ltd.
2-9-4, Nakaikegami, Ohta-ku,
Tokyo, 146-8555, Japan
TEL
: (81)-3-3755-1111
FAX : (81)-3-3753-8791
E-mail : overseas@nitto-kohki.co.jp
URL : www.nitto-kohki.co.jp
Original Instructions
110mm
16mm
6mm
24mm
11.8sec
464KN
25mm
30Kg
