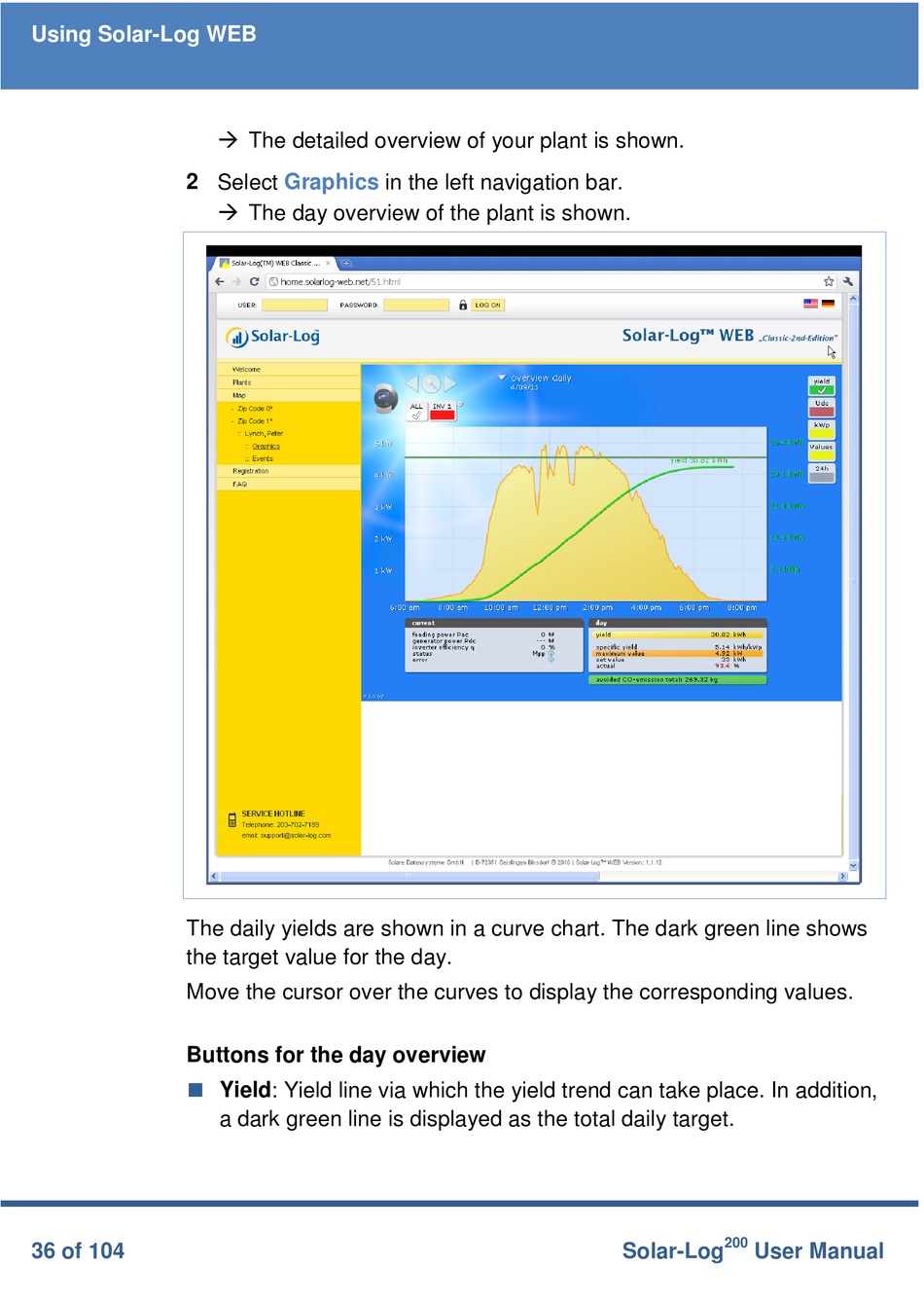

Solar-Log 200 User Manual page 36

Using Solar-Log WEB
2 Select
The daily yields are shown in a curve chart. The dark green line shows
the target value for the day.
Move the cursor over the curves to display the corresponding values.
Buttons for the day overview

36 of 104
 The detailed overview of your plant is shown.
Graphics in the left navigation bar.
 The day overview of the plant is shown.
Yield: Yield line via which the yield trend can take place. In addition,
a dark green line is displayed as the total daily target.
200
Solar-Log User Manual
