Operation using the web browser in your own network

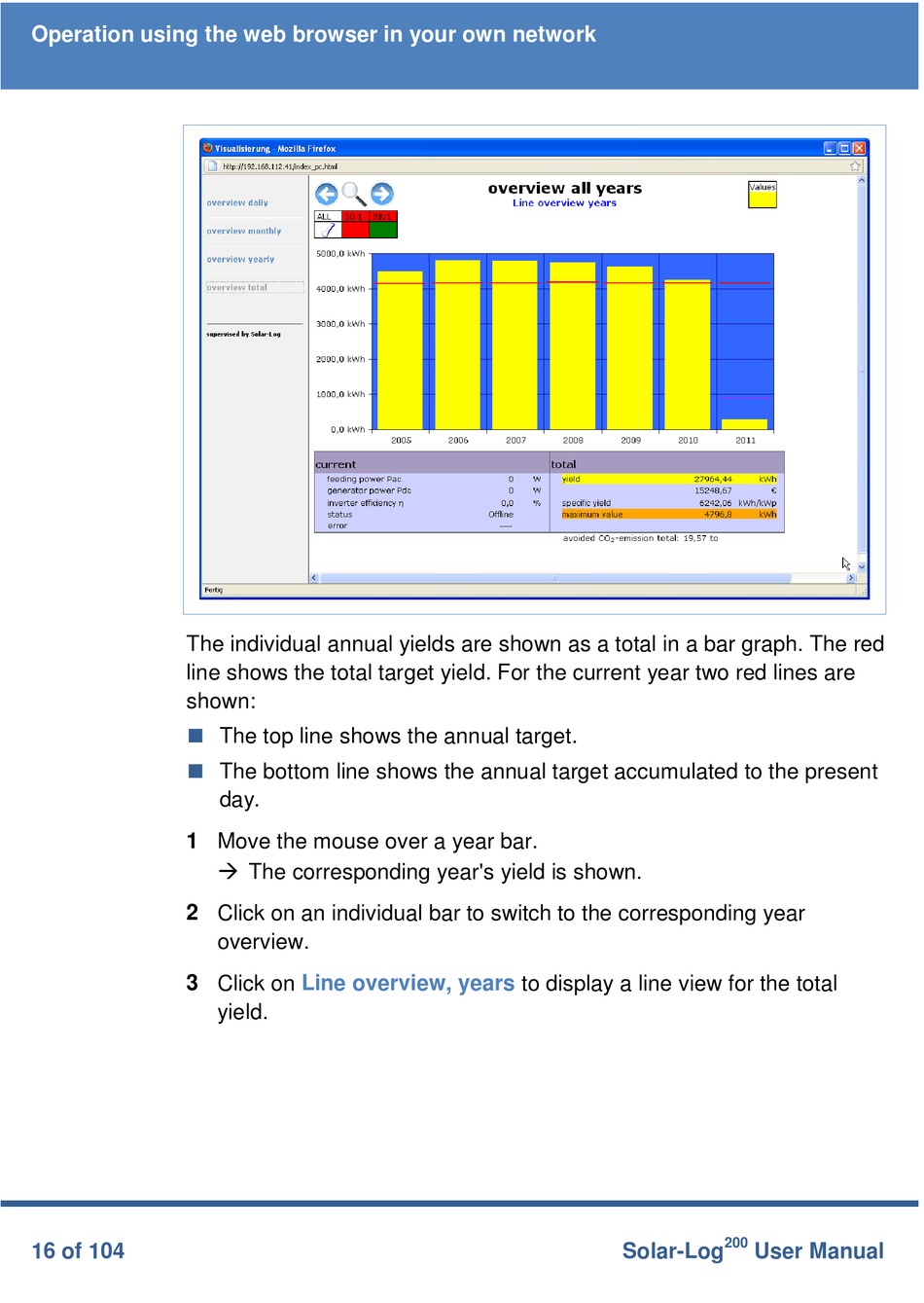

The individual annual yields are shown as a total in a bar graph. The red
line shows the total target yield. For the current year two red lines are
shown:


1 Move the mouse over a year bar.
2 Click on an individual bar to switch to the corresponding year
3 Click on
16 of 104
The top line shows the annual target.
The bottom line shows the annual target accumulated to the present
day.
 The corresponding year's yield is shown.
overview.
Line overview, years
yield.
to display a line view for the total
