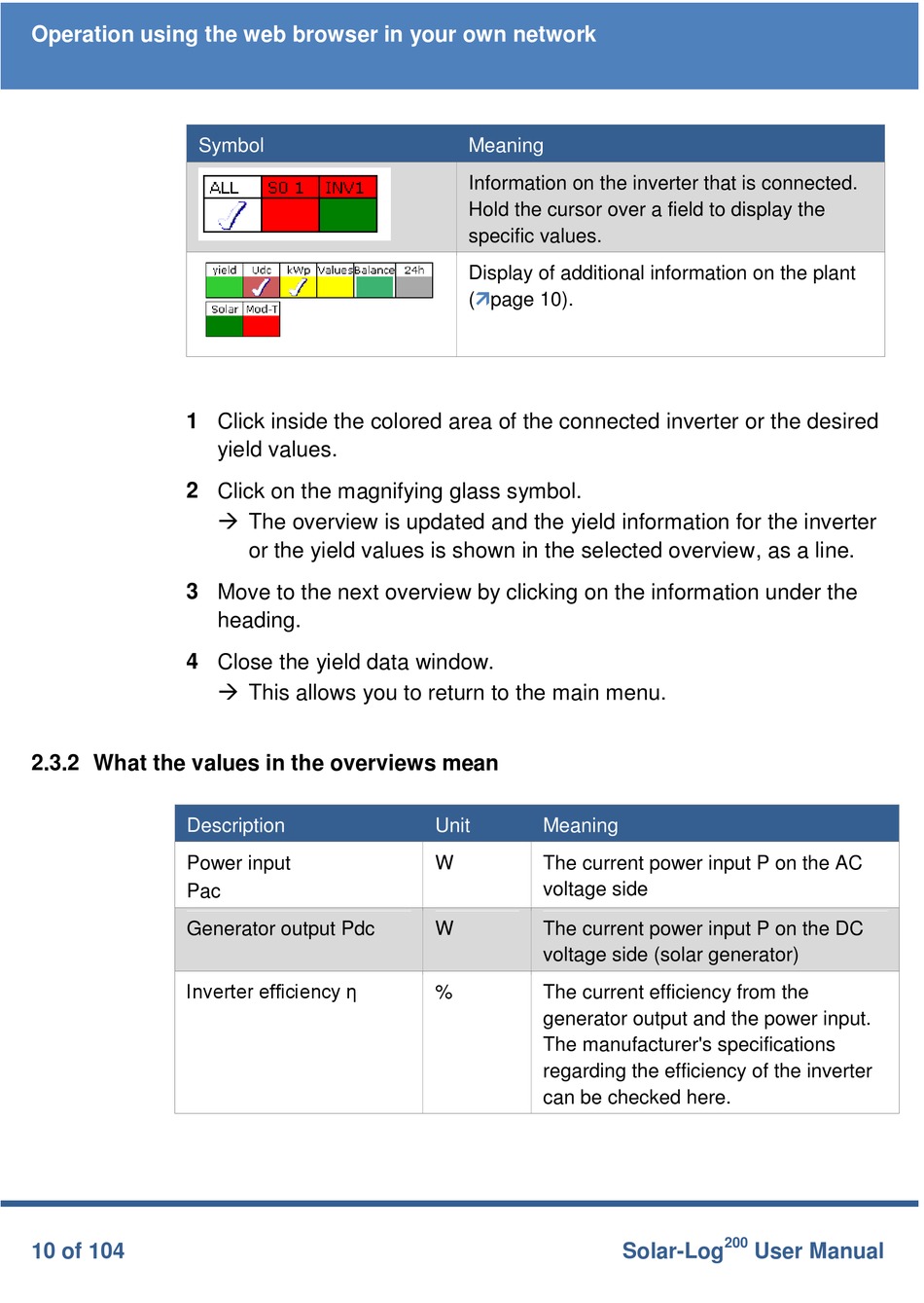

Operation using the web browser in your own network
Symbol
1 Click inside the colored area of the connected inverter or the desired
2 Click on the magnifying glass symbol.
3 Move to the next overview by clicking on the information under the
4 Close the yield data window.

2.3.2 What the values in the overviews mean

Description
Power input
Pac
Generator output Pdc
Inverter efficiency η
10 of 104
yield values.
 The overview is updated and the yield information for the inverter
or the yield values is shown in the selected overview, as a line.
heading.
 This allows you to return to the main menu.
Meaning
Information on the inverter that is connected.
Hold the cursor over a field to display the
specific values.
Display of additional information on the plant
(page 10).
Unit Meaning
W The current power input P on the AC
voltage side
W The current power input P on the DC
voltage side (solar generator)
% The current efficiency from the
generator output and the power input.
The manufacturer's specifications
regarding the efficiency of the inverter
can be checked here.
