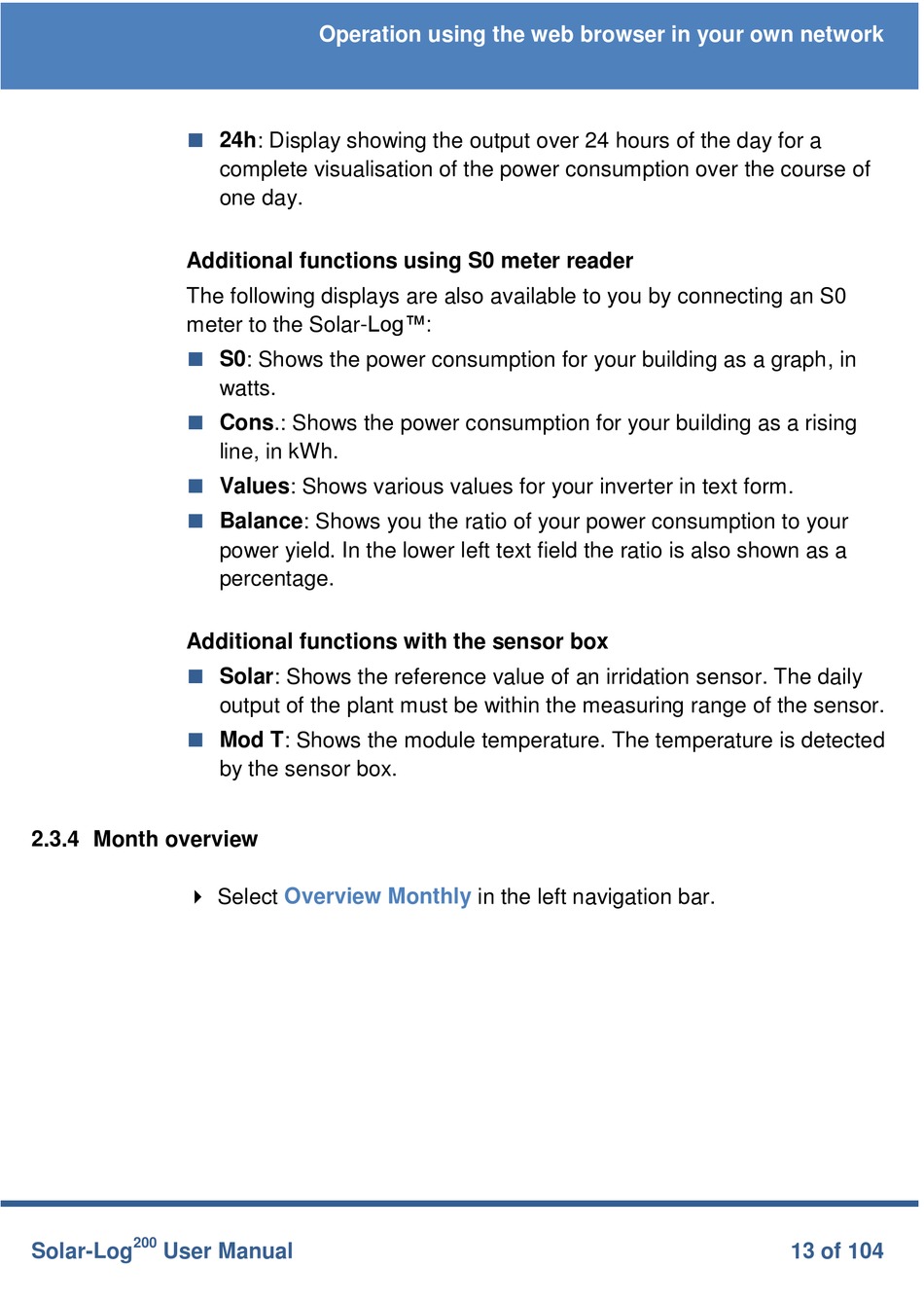

Additional functions using S0 meter reader
The following displays are also available to you by connecting an S0
meter to the Solar-Log™:




Additional functions with the sensor box



2.3.4 Month overview

 Select
200
Solar-Log User Manual
Operation using the web browser in your own network
24h: Display showing the output over 24 hours of the day for a
complete visualisation of the power consumption over the course of
one day.
S0: Shows the power consumption for your building as a graph, in
watts.
Cons.: Shows the power consumption for your building as a rising
line, in kWh.
Values: Shows various values for your inverter in text form.
Balance: Shows you the ratio of your power consumption to your
power yield. In the lower left text field the ratio is also shown as a
percentage.
Solar: Shows the reference value of an irridation sensor. The daily
output of the plant must be within the measuring range of the sensor.
Mod T: Shows the module temperature. The temperature is detected
by the sensor box.
Overview Monthly in the left navigation bar.
13 of 104
