Rosemount 3051S Series Quick Start Manual

Pressure transmitter & flowmeter with wirelesshart protocol
Hide thumbs Also See for 3051S Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
Quick Start Guide
00825-0200-4802, Rev HC
August 2016
™
Rosemount

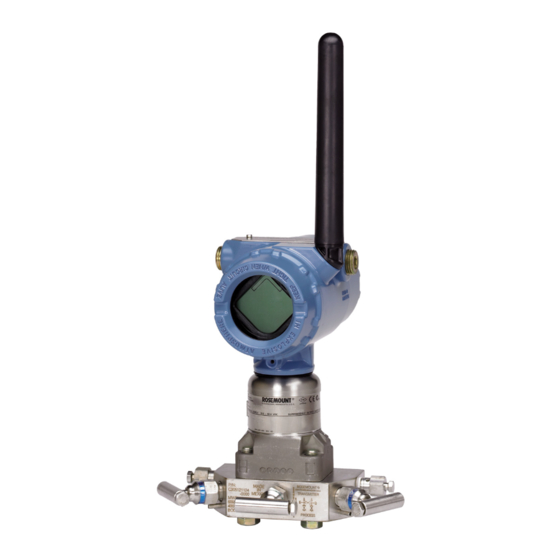

3051S Series Pressure Transmitter
and Rosemount 3051SF Series Flowmeter
®
with WirelessHART
Protocol

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3051S Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rosemount 3051S Series

Summary of Contents for Rosemount 3051S Series

  • Page 1 Quick Start Guide 00825-0200-4802, Rev HC August 2016 ™ Rosemount 3051S Series Pressure Transmitter and Rosemount 3051SF Series Flowmeter ® with WirelessHART Protocol...

  • Page 2: Table Of Contents

    August 2016 Quick Start Guide NOTICE ™ This guide provides basic guidelines for Rosemount 3051S and 3051S MultiVariable Wireless Transmitters. It does not provide instructions for diagnostics, maintenance, service, or troubleshooting. Refer to the Rosemount 3051S and 3051S MultiVariable Wireless Reference Manual for more instruction.

  • Page 3: Wireless Considerations

    Figure 1. Antenna Position 1.3 Field Communicator connections In order for the Field Communicator to interface with the Rosemount 3051S or Rosemount 3051SMV, the power module must be connected. This transmitter uses the black power module. Order model number 701PBKKF.

  • Page 4: Mount The Transmitter

    August 2016 Quick Start Guide 2.0 Mount the transmitter 2.1 Liquid flow applications 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward. Flow 4.
  • Page 5 Quick Start Guide August 2016 Figure 3. Panel and Pipe Mount Panel mount Pipe mount Coplanar flange 6.25 (158) Traditional flange In-line 3.08 (78) A. U-bolt bracket...
  • Page 6 August 2016 Quick Start Guide 2.4 Bolting considerations If the transmitter installation requires assembly of the process flanges, manifolds, or flange adapters, follow these assembly guidelines to ensure a tight seal for optimal performance characteristics of the transmitters. Use only bolts supplied with the transmitter or sold by Emerson as spare parts.
  • Page 7 Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring that is designed for its specific flange adapter, as shown below: Rosemount 3051S/3051SMV/3051/2051 A. Flange adapter B. O-ring C.
  • Page 8 1. Mount the antenna on a 1.5-in.to 2-in. pipe mast using the supplied mounting equipment. 2. Connect the lightning arrestor directly to the top of the Rosemount 3051S or 3051SMV Transmitters. 3. Install the grounding lug, lock washer, and nut on top of lightning arrestor.

  • Page 9: Connect The Power Module

    Note: Weather proofing is required! The remote mount antenna kit includes coaxial sealant for weather proofing the cable connections for the lightning arrestor, antenna, and Rosemount 3051S or 3051SMV Transmitters. Coaxial sealant must be applied to guarantee performance of the wireless field network. See...

  • Page 10: Trim The Transmitter

    The LCD display will show the output values based on the wireless update rate. Refer to the Rosemount 3051S and 3051SMV Wireless manuals for error codes and other LCD messages. Press and hold the Diagnostic button for at least five seconds to display the TAG, Device ID, Network ID, Network Join Status, and Device Status screens.
  • Page 11 N E G O T S R C H N G 6.2 Field Communicator For HART Wireless transmitter communication, a Rosemount 3051S and 3051SMV Wireless DD is required. For connecting with a Field Communicator, refer to Figure 2 on page...

  • Page 12: Troubleshooting

    August 2016 Quick Start Guide 6.4 AMS Wireless Configurator When the device has joined the network, it will appear in the Wireless Configurator as illustrated below. 6.5 Troubleshooting If the device is not joined to the network after power up, verify the correct configuration of the network ID and join key, and verify the active advertising has been enabled on the Gateway.

  • Page 13: Reference Information

    Other Network ID, Join Device to Network, Configure Update Rate, Wireless 2, 2, 1 Configure Broadcast Power Level, Power Mode, Power Source 1. If using Rosemount 3051SMV, use the Fast Key sequence 2, 2 and then navigate to Device Information.

  • Page 14: Product Certifications

    CL 1, Zone 0 AEx ia IIC T4; NI CL 1, DIV 2, GP A, B, C, D T4; DIP CL II, DIV 1, GP E, F, G; CL III, T5; T4(-50 °C ≤ T ≤ +70 °C)/T5(-50 °C ≤ T ≤ +85 °C); when connected per Rosemount drawing 03151-1000; Type 4X...
  • Page 15 Quick Start Guide August 2016 Special Conditions for Safe Use (X): 1. The Rosemount 3051S and SMV Wireless Transmitters shall only be used with the ™ 701PBKKF Rosemount SmartPower Battery Pack or alternatively the Perpetuum Intelligent Power Module Vibration Harvester.
  • Page 16 Markings: Ex ia IIC T4 Ga, T4 (-60 ~ 70 °C) Special Condition for Safe Use (X): 1. See appropriate certificate. Note Not currently available on the Rosemount 3051S MultiVariable Wireless Transmitter. 8.12 Japan I4 TIIS Intrinsically Safe Certificates: TC18649, TC18650, TC18657 Ex ia IIC T4 (-20 ~ 60 °C)
  • Page 17 Quick Start Guide August 2016 Figure 9. Rosemount 3051S Wireless Declaration of Conformity...
  • Page 18 August 2016 Quick Start Guide...
  • Page 19 Quick Start Guide August 2016...
  • Page 20 August 2016 Quick Start Guide Rosemount 3051S China RoHS List of Rosemount 3051S Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
  • Page 21 Quick Start Guide August 2016...
  • Page 22 The Emerson logo is a trademark and service mark of Emerson +65 6777 0947 Electric Co. Enquiries@AP.EmersonProcess.com AMS, MultiVariable, SmartPower, Rosemount, and Rosemount logotype are trademarks of Emerson Process Management. Middle East and Africa Regional Office HART and WirelessHART are registered trademarks of FieldComm Emerson Process Management Group.
