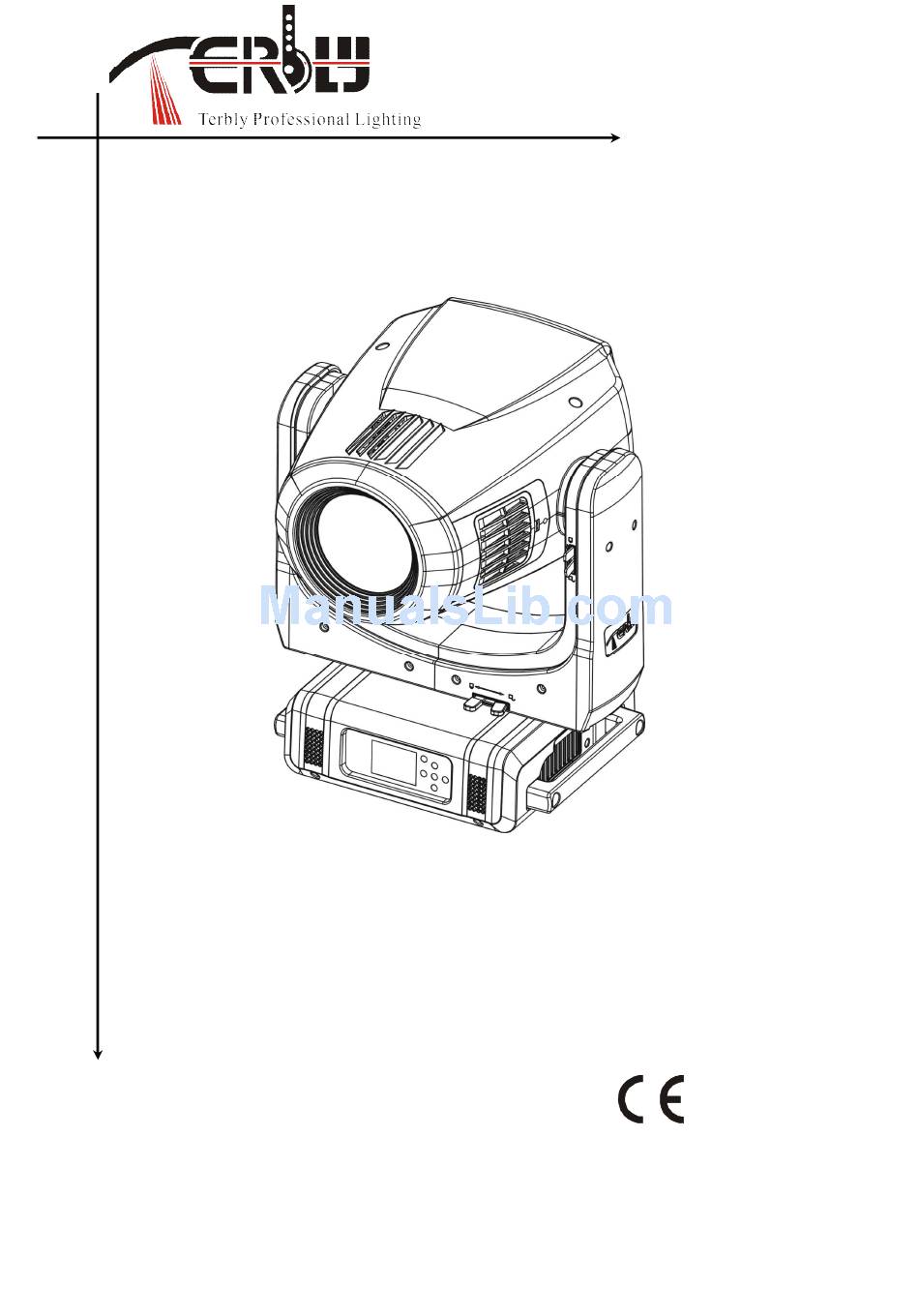

- Page 1 LED MOVING HEAD USER MANUAL GL2P KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: Table Of Contents
Thank you for purchasing a TERBLY product. You have acquired a powerful and versatile fixture. We are confident that you will be satisfied with our excellent products and service. For your own safety, please read this user manual carefully before installing and operating the device. -
Page 3: Safety Instructions
Make sure that the available voltage is not higher than that which is stated at the end of this manual. Make sure the power cord is never crushed or damaged by sharp edges. Should the power cord suffer If this should be the case, replacement of the cable must be done by an GL2P User Manual XM1460-V1.0-NR... - Page 4 When powered on for the first time, some smoke or smell may occur. This is caused by coating on metal parts when heated and is normal. If you are concerned, please contact your distributor or Terbly. Do not focus the beam onto flammable surfaces. The minimum distance between the exiting lens of the device and the illuminated surface must be greater than 1 meter.
-
Page 5: Features
SOFTWARE 7 pre-installed programs available upon selection Upgrades: fast and convenient through DMX cable Reset DMX address, remote lamp switch, reset can all be done by the controller Running time of fixture on display for reference GL2P User Manual XM1460-V1.0-NR... - Page 6 OTHER SPEC Input signal isolation: guarantees stable signal transmission without interference Advanced RDM function WHIGHT Net weight: 28 kg GL2P User Manual XM1460-V1.0-NR...
-
Page 7: Fixture Overview
3. FIXTURE OVERVIEW 14) RJ45 15) RJ45 GL2P User Manual XM1460-V1.0-NR... -
Page 8: Dimensional Drawings
4. DIMENSIONAL DRAWINGS GL2P User Manual XM1460-V1.0-NR... -
Page 9: Installation Instructions
Improper installation/ rigging can result in serious bodily injury. Before rigging make sure that the installation area can hold a minimum point load of 10 times the device’s weight. GL2P User Manual XM1460-V1.0-NR... - Page 10 Pull the safety cable through the holes on the bottom of the base and over the trussing system or another suitable rigging point. Insert the end into the carabiner and tighten the safety screw. Important: This step is very important to ensure safe rigging of the fixture. GL2P User Manual XM1460-V1.0-NR...
- Page 11 If you lack these qualifications, do not attempt the rigging of this device yourself. Improper installation/ rigging can result in serious bodily injury. GL2P User Manual XM1460-V1.0-NR...
-
Page 12: Dmx-512 Control Connection
The DMX terminator is an XLR plug with a 120 resistor connected between pins 2 and 3,which is then plugged into the output (female) XLR socket of the last fixture in the chain. Please see illustrations below. GL2P User Manual XM1460-V1.0-NR... -
Page 13: Device Dmx Start Address Selection
The Display does not need external power to operate. Hold down the -button for 3 seconds and the Display will turn on by using the unit’s battery built in battery. GL2P User Manual XM1460-V1.0-NR... - Page 14 Display Reverse/ ON/OFF Key Lock Key Lock/ Celsius Temperature C/F Temperature switch Fahrenheit/ Initial Status/ Control =XXX / Initial effect position DMX Only/ DMX Only Select Signal/ Art-Net On IP2/ Art-Net IP02 Art-Net On IP10/ Art-Net IP10 GL2P User Manual XM1460-V1.0-NR...
- Page 15 Auto Pro Part 2 = Program 1 ~ 10 Program 1 Auto Pro Part 3 = Program 1 ~ 10 Program 1 Testing program Edit Program/ Program 1/ Program Test Program in loop Step 01=SCxxx Save and exit Program 10/ Step 64=SCxxx/ GL2P User Manual XM1460-V1.0-NR...
- Page 16 1. Access the main menu. 2. Tap the <Up/Down> button until “Auto Program” is displayed. 3. Press ENTER, the display will show “Auto Program”. 4. Tap the <Up/Down> button the display will show “Master1”, “ Alone”. GL2P User Manual XM1460-V1.0-NR...
- Page 17 “Information” is displayed. Press ENTER, the display will show “Information”. Tap the <Up/Down> button until the display will show “Time Information”. Press ENTER, the display will show “Time Information”. 2. Press <Up/Down>, the display will show “LastRun Password”. GL2P User Manual XM1460-V1.0-NR...
- Page 18 9.2.5. Software Ver With this function, you can display the software version of the device. 1. Tap <MODE/ESC> button access the main menu Tap the <Up/Down> button until “Information” is displayed. Press ENTER, the display will show “Information”. GL2P User Manual XM1460-V1.0-NR...
- Page 19 “Personality” is displayed. Press ENTER, the display will show “Personality”. Tap the <Up/Down> button until the display will show “Status settings”. Press ENTER, the display will show “Status settings”. 2. Press <Up/Down>, the display will show “Tilt Reverse”. 3. Press< ENTER>, the display will show “Tilt Reverse”. GL2P User Manual XM1460-V1.0-NR...
- Page 20 DMX-bus possible. ANSI E1.20-2006 by ESTA specifies the RDM standard as an extension of the DMX512 protocol. Manual settings like adjusting the DMX starting address are no longer needed. This is particularly useful when the device is installed in a remote area. GL2P User Manual XM1460-V1.0-NR...
- Page 21 4 The display show “OFF”, Press <Up/Down>, the display will show “ON”. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.3.5. Temperature C/F With this function you can display the temperature in Celsius or Fahrenheit. GL2P User Manual XM1460-V1.0-NR...
- Page 22 “Personality” is displayed. Press ENTER, the display will show “Personality”. Tap the <Up/Down> button until the display will show “Status settings”. Press ENTER, the display will show “Status settings”. 2. Press <Up/Down>, the display will show “ ”. Refresh GL2P User Manual XM1460-V1.0-NR...
- Page 23 3 Press< ENTER>, the display will show “Test Channel”. 4 The display shows “Pan Moving” first channel, Press <Up/Down>, can choose other channel. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.5.2. Manual Control GL2P User Manual XM1460-V1.0-NR...
- Page 24 1 Tap <MODE/ESC> button, access the main menu, Tap the <Up/Down> button until “Users mode set” is displayed. Press <ENTER>, the display will show “Users mode set”. 2 The display show “Edit User Mode” first channel, Press <Up/Down> the display will show “Edit User Mode”. GL2P User Manual XM1460-V1.0-NR...
- Page 25 Program 2, Part 2 uses Program 4, Part 3 uses Program 6, Assume: Program 2 includes scene of 10, 11, 12, 13; Program 4 includes scene of 8, 9, 10; Program 6 includes scene of 12, 13, 14, 15; Then it will run as below. Example GL2P User Manual XM1460-V1.0-NR...
-
Page 26: Dmx Protocol
Shutter, strobe: 0-31 Shutter closed 32-63 No function (shutter open) 64-95 Strobe effect slow to fast 96-127 No function (shutter open) 128-159 Pulse-effect in sequences 160-191 No function (shutter open) 192-223 Random strobe effect slow to fast GL2P User Manual XM1460-V1.0-NR... - Page 27 Zoom Fine: 0-255 Zoom adjustment Fine Auto Focus: 0-50 Auto Focus Off 51-150 151-255 Auto Focus Fine: 0-255 Continuous adjustment Fine Color Wheel : 0-15 Open / white 16-31 Col1 32-47 Col2 48-63 Col3 64-79 Col4 GL2P User Manual XM1460-V1.0-NR...
- Page 28 Yellow Fine CT0 Color : 0-255 Yellow (0-white, 255-100% Yellow) CTO Color Fine : 0-255 Yellow Fine Colour macros - CMY and colour wheel: 0-31 32-39 Macro1 40-47 Macro2 48-55 Macro3 56-63 Macro4 64-71 Macro5 72-79 Macro6 GL2P User Manual XM1460-V1.0-NR...
- Page 29 Speed Of CMY & Colour macro Speed: 0-255 Speed Max >Min Rotating gobos, cont. rotation : Open 8-17 Rot. gobo 1 18-27 Rot. gobo 2 28-37 Rot. gobo 3 38-47 Rot. gobo 4 48-57 Rot. gobo 5 58-67 Rot. gobo 6 GL2P User Manual XM1460-V1.0-NR...
- Page 30 50-59 Gobo 5 60-69 Gobo 6 70-79 Gobo 7 80-89 Gobo 8 90-99 Gobo 9 100-109 Gobo 1 shake slow to fast 110-119 Gobo 2 shake slow to fast 120-129 Gobo 3 shake slow to fast GL2P User Manual XM1460-V1.0-NR...
- Page 31 128-135 Macro 1 136-143 Macro 2 144-151 Macro 3 152-159 Macro 4 160-167 Macro 5 168-175 Macro 6 176-183 Macro 7 184-191 Macro 8 192-199 Macro 9 200-207 Macro 10 208-215 Macro 11 216-223 Macro 12 GL2P User Manual XM1460-V1.0-NR...
- Page 32 Blade 2 : 0-255 Open to Close Blade 2 Fine 0-255 Open to Close Fine Blade 2 Rotation 0-255 Blade 2 Rotation Blade 2 Rotation Fine 0-255 Blade 2 Rotation Fine Blade 3 : 0-255 Open to Close GL2P User Manual XM1460-V1.0-NR...
- Page 33 Speed Of Blade Speed: 34 36 0-255 Speed Max >Min Blade macro effects: 0-15 16-30 Macro1 31-45 Macro2 46-60 Macro3 61-75 Macro4 35 37 76-90 Macro5 91-105 Macro6 106-120 Macro7 121-135 Macro8 136-150 Macro9 151-165 Macro10 GL2P User Manual XM1460-V1.0-NR...
- Page 34 97-99 Other motor reset 100-119 Internal program 1 120-139 Internal program 2 140-159 Internal program 3 160-179 Internal program 4 180-199 Internal program 5 200-219 Internal program 6 220-239 Internal program 7 240-255 Reserved GL2P User Manual XM1460-V1.0-NR...
-
Page 35: Error Messages
CTO wheel Er (CTO wheel- error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepper motor is GL2P User Manual XM1460-V1.0-NR... - Page 36 (sensor failed or magnet missing) or the stepper motor is defective (or its driving IC on the main PCB). The BLADE_ROT - movement is not located in the default position after the reset. GL2P User Manual XM1460-V1.0-NR...
-
Page 37: Cleaning And Maintenance
Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine parts from your local dealer. 13. SERVICE For all service needs please contact your local authorized dealer or Terbly directly. Our contact details are: Email: QA@terbly.com... - Page 38 Remark : Errors and omissions for all information given in this manual are excepted. All information is subject to change without prior notice. GL2P User Manual XM1460-V1.0-NR...
