Terbly TP01-WW User Manual

Led tv panel light
Hide thumbs
Table of Contents

Advertisement

Quick Links

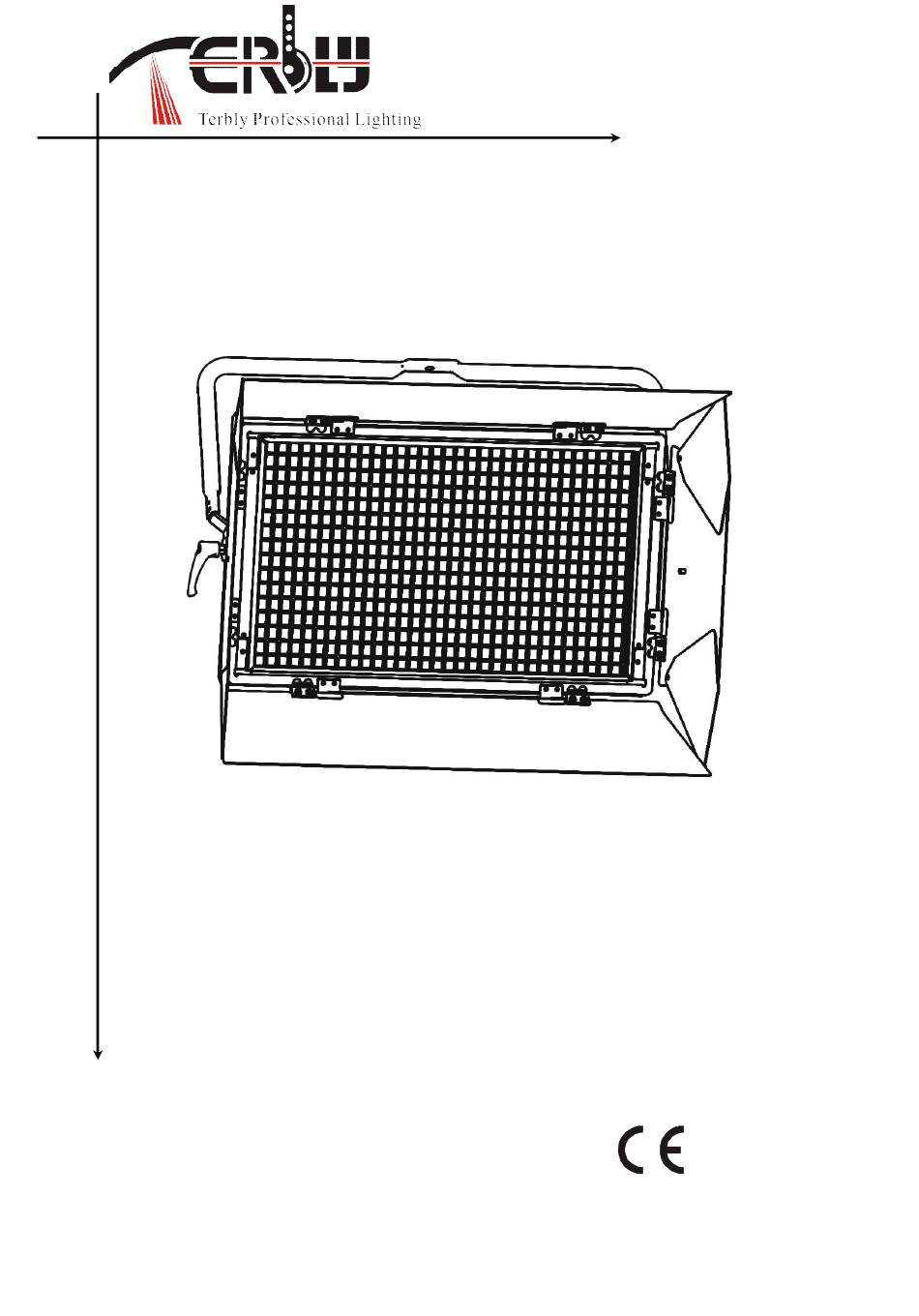

LED TV PANEL LIGHT
USER MANUAL
TP01-WW
TP01-CW
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading

Related Manuals for Terbly TP01-WW

Summary of Contents for Terbly TP01-WW

  • Page 1 LED TV PANEL LIGHT USER MANUAL TP01-WW TP01-CW KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Table Of Contents

    Thank you for purchasing a TERBLY product. You have acquired a powerful and versatile fixture. We are confident that you will be satisfied with our excellent products and service. For your own safety, please read this user manual carefully before installing and operating the device.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. IMPORTANT SAFETY WARNING This device has left the factory in perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

  • Page 4: General Guidelines

    When powered on for the first time, some smoke or smell may occur. This is caused by coating on metal parts when heated and is normal. If you are concerned, please contact your distributor or Terbly. Do not focus the beam onto flammable surfaces. The minimum distance between the exiting lens of the device and the illuminated surface must be greater than 0.1 meter.

  • Page 5: Features

    2. FEATURES Specifications TP01-CW TP01-WW Light Source 180W 180W Color Rendering Index(CRI) Color Temperature 5600 K, CT Calibration Available 3200 K, CT Calibration Available Luminous flux 7908 lm 7283 lm Dimming 0-100% Linear Dimming 0-100% Linear Dimming Beam Angle Field Angle...
  • Page 6 DMX CHANNEL DATA IMAGE TP01-CW,WW User Manual XM1148/1266-V1.0-D...

  • Page 7: Fixture Overview

    3. FIXTURE OVERVIEW 1) LEDS 2) Display 3) ENTER- button 4) DOWN- button 5) UP- button 6) Mode/Esc- button 7) Power In 8) Fuse 9) 3-Pin DMX Out 10) 3-Pin DMX In 11) 5-Pin DMX In 12) 5-Pin DMX Out 4.

  • Page 8: Installation Instructions

    5. INSTALLATION INSTRUCTIONS CAUTION! DO NOT OPERATE THIS DEVICE WITH OPEN COVER 5.1. RIGGING THE DEVICE CAUTION! PLEASE CONSIDER THE GB7000.1-2015, GB7000.217-2008 AND THE OTHER RESPECTIVE NATIONAL NORMS DURING THE INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON. The structure on which the device is rigged must be able to support 10 times the weight of the device for 1 hour without any critical deformation occurring.
  • Page 9 5.2. RIGGING USING THE OMEGA BRACKETS Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the 13 hole in the middle of the bracket. Pass the safety rope through the connecting hole under the side panel, hanging on the fixed bracket or other fixed station, and can also be floor-mounted(or on any other flat surface) without fixing, remaining steady no matter what the angle of the head.
  • Page 10 5.3. RIGGING DRAWINGS The device can be rigged in any of the orientations shown in the image above. The device must be kept at least 0.1 m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails.

  • Page 11: Dmx-512 Control Connection

    6. DMX-512 CONTROL CONNECTION Connect the provided male side of the XLR cable to the female XLR output of your controller and the female side of the XLR cable to the male XLR input of the device. You can connect multiple devices together in a serial fashion.

  • Page 12: Display

    You can set the same starting address for all fixtures or a group of fixtures, or set different addresses for each fixture individually. If you set the same address on all devices, all the devices will start to “listen” to the same control signal from the same channel number.
  • Page 13 between Fahren 900-1500Hz,2.5K,4K,5K,10K,15K,20K, Refresh Refresh 2.0,2.2,2.4,2.6,2.8 Gamma Gamma ResetDef Restore factory set. ON/OFF Calibrat Password/ColF,WamF Calibrat ManCntrl Fine adjustment of the led Dimm… Dimm =XXX Manctrl DiMo… DiMo=XXX UserMode User’s mode to change Mode channel numbers DimModes Standard Dimming mode Stage Dimmin Architectural...
  • Page 14 1. Access the main menu. 2. Tap the <Up/Down> button until “SetSlave” is displayed. 3. Press ENTER, the display will show “SetSlav”. 4. Tap the <Up/Down> button the display will show “Slave1”, “Slave2”, “Slave3”. 5. Press ENTER to confirm or press <MODE/ESC> to return to the main menu. 9.1.4.
  • Page 15 With this function, you can display the timer password. 1. Access the main menu. 2. Press <Up/Down>, the display will show “ ”. TimePass ”. The time password is 038. 3. Press< ENTER>, the display will show“ TimePass 4. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Clr Last With this function, you can clear last run time of the fixture.
  • Page 16 NoDMXSta With this function, when the drive is not DMX signal, it runs automatism, close, hold and music, the default is hold. 1. Access the main menu. 2. Press <Up/Down>, the display will show “NoDMXSta”. 3. Press< ENTER>, the display will show“NoDMXSta”. 4.
  • Page 17 4 The display show “Fahrenheit”,Press <Up/Down>, the display will show “Celsius”. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.3.5. Refresh 1 Access the main menu. ”. 2 Press <Up/Down>, the display will show“ Refresh ”.

  • Page 18: Edit Program

    2 Press <Up/Down>, the display will show “ ”. UserMode 3 Press< ENTER>, the display will show “ ”. UserMode 4 The display show “1CH” ,Press <Up/Down>, the display will show “3CH”. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.7.
  • Page 19 TP01-CW,WW User Manual XM1148/1266-V1.0-D...

  • Page 20: Dmx Protocol

    10. DMX PROTOCOL DMX channel´s functions and their values (3 DMX channels): Mode/Channel Value Function Dimmer Intensity: 0-255 Intensity 0 to 100% Dimmer Fine: 0-255 Intensity 0 to 100% Dim Curves: 0-20 Standard 21-40 Stage 41-60 61-80 Architectural 81-100 Theatre 101-255 Default to Unit Curve Setting TP01-CW,WW User Manual...

  • Page 21: Cleaning And Maintenance

    Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine parts from your local dealer. 12. SERVICE For all service needs please contact your local authorized dealer or Terbly directly. Our contact details are: Email: QA@terbly.com...

This manual is also suitable for:

Tp01-cw
