Terbly G6H NOVA User Manual

Led moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

LED MOVING HEAD
USER MANUAL
G6H NOVA
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading

Related Manuals for Terbly G6H NOVA

Summary of Contents for Terbly G6H NOVA

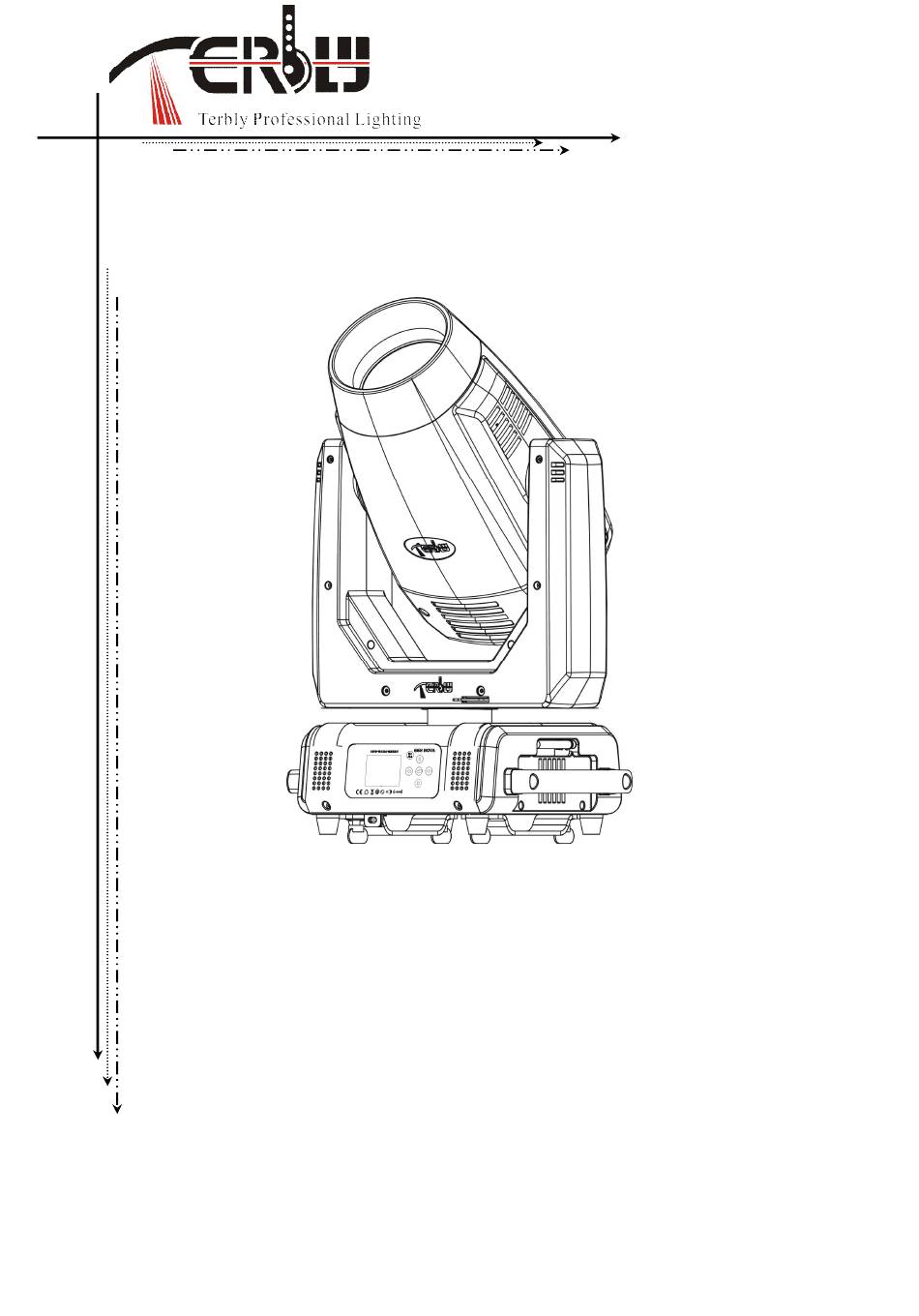

  • Page 1 LED MOVING HEAD USER MANUAL G6H NOVA KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Table Of Contents

    Thank you for purchasing a TERBLY product. You have acquired a powerful and versatile fixture. We are confident that you will be satisfied with our excellent products and service. For your own safety, please read this user manual carefully before installing and operating the device.

  • Page 3: Safety Instructions

    Make sure the power cord is never crushed or damaged by sharp edges. Should the power cord suffer If this should be the case, replacement of the cable must be done by an G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 4: General Guidelines

    If this device is operated in any way different to the ones described in this manual, the product may suffer damage and the warranty becomes void. Furthermore, any other operation may lead to short-circuits, burns, electric shocks etc. G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 5: Features

    7 pre-installed programs available upon selection Upgrades fast and convenient through DMX cable Reset DMX address remote lamp switch reset can all be done by the controller Running time of fixture on display for reference G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 6 OTHER SPEC Input signal isolation guarantees stable signal transmission without interference Advanced RDM function WHIGHT Net weight 23.75 kg PHOTOMETRIC DATA G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 7 DMX CHANNEL DATA IMAGE G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 8: Fixture Overview

    3. FIXTURE OVERVIEW Lens Display Mode/Esc-button Left-button Down-button Enter-button Right-button Up-button Pan Lock Handle Tilt Lock RJ45 in Power out RJ45 out DMX out Power in DMX in Fuse G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 9: Dimensional Drawings

    4. DIMENSIONAL DRAWINGS G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 10: Installation Instructions

    Make sure remove the lamp from left to right until the lamp is took off. Attention wrap the lamp with soft cloth which go with the lamp to avoid your finger touching the glass of lamp directly. G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 11 Improper installation/ rigging can result in serious bodily injury. Before rigging make sure that the installation area can hold a minimum point load of 10 times the device’s weight. G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 12 Pull the safety cable through the holes on the bottom of the base and over the trussing system or another suitable rigging point Insert the end into the carabiner and tighten the safety screw Important: This step is very important to ensure safe rigging of the fixture G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 13 If you lack these qualifications do not attempt the rigging of this device yourself Improper installation/ rigging can result in serious bodily injury G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 14: Dmx-512 Control Connection

    XLR plug with a 120 resistor connected between pins 2 and 3 which is then plugged into the output (female) XLR socket of the last fixture in the chain Please see illustrations below G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 15: Device Dmx Start Address Selection

    The Display does not need external power to operate Hold down the -button for 3 seconds and the Display will turn on by using the unit’s battery built in battery G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 16 OFF, 01M~99M 15M Stand by Mode Service Setting Password Password=XXX Service Password“=050” RDM UID XXXXXX RDM UID Display Setting Shutoff Time 02~60m 05m Display shutoff time Display Reverse ON/OFF/AUTO Reverse 180 degree Key Lock ON/OFF Key Lock G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 17 Step 01=SCxxx Program 10 Step 64=SCxxx Edit Scenes Edit Scene 001 Pan,Tilt,…… Save and automatically return ~ Edit Scene 250 --Fade Time-- manual scenes edit --Scene Time-- Input By Out Rec. Controller XX~XX Automat. scenes rec G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 18 3. Press <ENTER> the display will show“Auto Program” 4. Tap the <Up/Down> button the display will show“Master “Alone” 5. Press <ENTER>R to confirm or press <MODE/ESC> to return to the main menu 9.2. Information 9.2.1. Time information G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 19 Press < ENTER> the display will show“Time Information” 2 Press <Up/Down> the display will show“Lamp Hours” 3 Press< ENTER> the display will show“Lamp Hours” 4 The display will show“Total Time XXXX(Hours) “Active Time “Idle Time G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 20 “Information”is displayed Press < ENTER> the display will show“Information” Tap the <Up/Down>button until the display will show“Time Information” Press < ENTER> the display will show“Time Information” 2 Press <Up/Down> the display will show“Lamp Time Password”. G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 21 4. The display show“HeadFan1 xxxx RPM”……. 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu 9.2.5. Encode Info 1. Tap <MODE/ESC> button access the main menu Tap the <Up/Down>button until G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 22: Lamp Control

    With this function you can select if the lamp will be switched on when switching the power on. Select “ ON” by turning the encoder if you wish to enable this function or “OFF” if you don’t. 1. Tap <MODE/ESC>button access the main menu Tap the <Up/Down>button until G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 23 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.4. Personality 9.4.1. Status Settings Address via DMX With this function you can adjust the desired DMX-address via an external controller. G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 24 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Pan Degree With this function you can select pan degree for 630 or 540. 1. Tap <MODE/ESC> button access the main menu Tap the <Up/Down> button until G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 25 “Personality” is displayed. Press<ENTER> the display will show “Personality” . Tap the <Up/Down> button until the display will show “Service Setting” . Press<ENTER> the display will show“Service Setting”. 2. Press <Up/Down> the display will show“RDM UID”. G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 26 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.4.5. Initial Status With this function you can display initial effect position. 1 Tap <MODE/ESC> button access the main menu Tap the <Up/Down> button until “Personality”is displayed. Press <ENTER> the display will show“Personality”. G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 27 2 Press <Up/Down> the display will show“Reset Default”. 3 Press< ENTER> the display will show“Reset Default”. 4 The display show“OFF Press <Up/Down> the display will show“ON”. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 28 3 Input a correct password press< ENTER> the display will show“Calibration” 4 The display show“Password=XXXX”. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.7. USERS MODE SET 1 Tap <MODE/ESC> button access the main menu. G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 29 1 If the slave fixture chooses Run For Slave 1 from the menu of 1-3,then it will receive the part 1’s automatic program from link, in the same way when the slave fixture G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 30 2 Press <Up/Down> the display will show“Language Set”. 3 Press< ENTER> the display will show“Language Set”. 4 The display show“English Press <Up/Down> can choose“Chinese”. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 31: Dmx Protocol

    (2.6° to 27°) Wash mode (3.6° to 25°) Zoom Fine: 0-255 Zoom adjustment Fine Focus : 0-255 Continuous adjustment from near to far Focus Fine: 0-255 Continuous adjustment Fine Auto Focus: Beam mode 0-50 Auto Focus Off G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 32 Magenta Color : 0-255 Magenta (0-white, 255-100% magenta) Magenta Color Fine : 0-255 Magenta Fine Yellow Color : 0-255 Yellow (0-white, 255-100% Yellow) Yellow Color Fine : 0-255 Yellow Fine Colour macros - CMY and colour wheel: G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 33 52-61 Rot. gobo 4 62-71 Rot. gobo 5 72-81 Rot. gobo 6 82-91 Rot. gobo 7 92-101 Rot. gobo 8 102-112 Rot. gobo 1 shake 113-123 Rot. gobo 2 shake 124-134 Rot. gobo 3 shake G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 34 Gobo 10 shake slow to fast 176-182 Gobo 11 shake slow to fast 183-189 Gobo 12 shake slow to fast 190-221 Clock-wise scroll from fast to slow 222-223 Reserved 224-255 Counter clock-wise scroll from slow to fast G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 35 30-39 No fuction 40-49 Lamp on 50-59 Lamp off 60-66 Lamp Power Min 190W 67-73 Lamp Power Med 240W 74-79 Lamp Power Max 280W 80-84 Reset All 85-87 Reset Pan&Tilit G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 36 Reset Shutter 97-99 Reset Others 100-119 Internal program 1 120-139 Internal program 2 140-159 Internal program 3 160-179 Internal program 4 180-199 Internal program 5 200-219 Internal program 6 220-239 Internal program 7 240-255 No fuction G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 37: Error Messages

    (sensor failed or magnet missing) or the stepper motor is defective (or its driving IC on the main PCB) .The Gobo_R 1 - movement is not located in the default position after the reset. G6H NOVA User Manual XM1557-V1.1-NR...
  • Page 38 (sensor failed or magnet missing) or the stepper motor is defective (or its driving IC on the main PCB) .The Frost - movement is not located in the default position after the reset. G6H NOVA User Manual XM1557-V1.1-NR...

  • Page 39: Cleaning And Maintenance

    Please refer to the instructions under“Installation instructions”. Should you need any spare parts please order genuine parts from your local dealer. 13. SERVICE For all service needs please contact your local authorized dealer or Terbly directly. Our contact details are Email QA@terbly.com...
