- Page 1 Application for FCC / IC FCC ID: K6620523X50 / IC: 511B-20523X50 FTM-3200DR Operating Manual VHF DIGITAL /ANALOG TRANSCEIVER C4FM/FM...
-
Page 2: Table Of Contents
Application for FCC / IC FCC ID: K6620523X50 / IC: 511B-20523X50 Contents FTM-3200DR Quick Reference Guide ..... 3 Memory Operation ..........23 Introduction ............... 4 Memory Storage ............ 23 Features of this radio ..........4 Split Memory ............23 Accessories & Options ..........5 Naming a Memory Channel ........ -
Page 3: Ftm-3200Dr Quick Reference Guide
Application for FCC / IC FCC ID: K6620523X50 / IC: 511B-20523X50 FTM-3200DR Quick Reference Guide VOL Knob Frequency DIAL Knob Adjusts the audio Selects the operating Frequency. volume level. DIAL M H z V / M TXPO SETUP Power Switch ... -
Page 4: Introduction
S-Meter, thus reducing guesswork in setting the squelch threshold. Congratulations on your purchase of the FTM-3200DR! Whether this is your first rig, or if Yaesu equipment is already the backbone of your station, the Yaesu organization is committed to ensuring your enjoyment of this high-performance transceiver, which should provide you with many years of satisfying operation. -
Page 5: Accessories & Options
Warranty Card Spare fuse (25 A) USB cable Optional Accessories MH-42C6J Microphone MH-48A6JA DTMF Microphone MEK-2 Mic Extension Kit MLS-100 High-Power External Speaker MLS-200-M10 High-Power External Speaker FP-1023 AC Power Supply (USA market only) FP-1030A AC Power Supply FTM-3200DR Operating Manual... -
Page 6: Installation
Note: When disconnecting the microphone, pull the cable while pressing the connector latch. Connecting the Antenna Connect the coaxial cable to the body. Plug the coaxial cable jack into the ANT terminal on the rear panel of the body, then rotate and tighten it. FTM-3200DR Operating Manual... -
Page 7: Mobile Installation
FCC ID: K6620523X50 / IC: 511B-20523X50 Installation Mobile Installation The FTM-3200DR must only be installed in vehicles having a 13.8 Volt negative ground electrical system. Mount the transceiver where the display, controls, and microphone are easily accessible, using the supplied mounting bracket. -
Page 8: Power Connection
Warning! Never apply AC power to the power cable of the FTM-3200DR, nor DC voltage greater than 15.8 Volts. When replacing the fuse, only use a 25-A fuse. Failure to observe these safety precautions will void the Limited Warranty on this product. -
Page 9: Base Station Installation
FCC ID: K6620523X50 / IC: 511B-20523X50 Installation Base Station Installation The FTM-3200DR is ideal for base station use as well as in mobile installations. The FTM- 3200DR is specifically designed to integrate into your station easily, using the information to follow as a reference. -

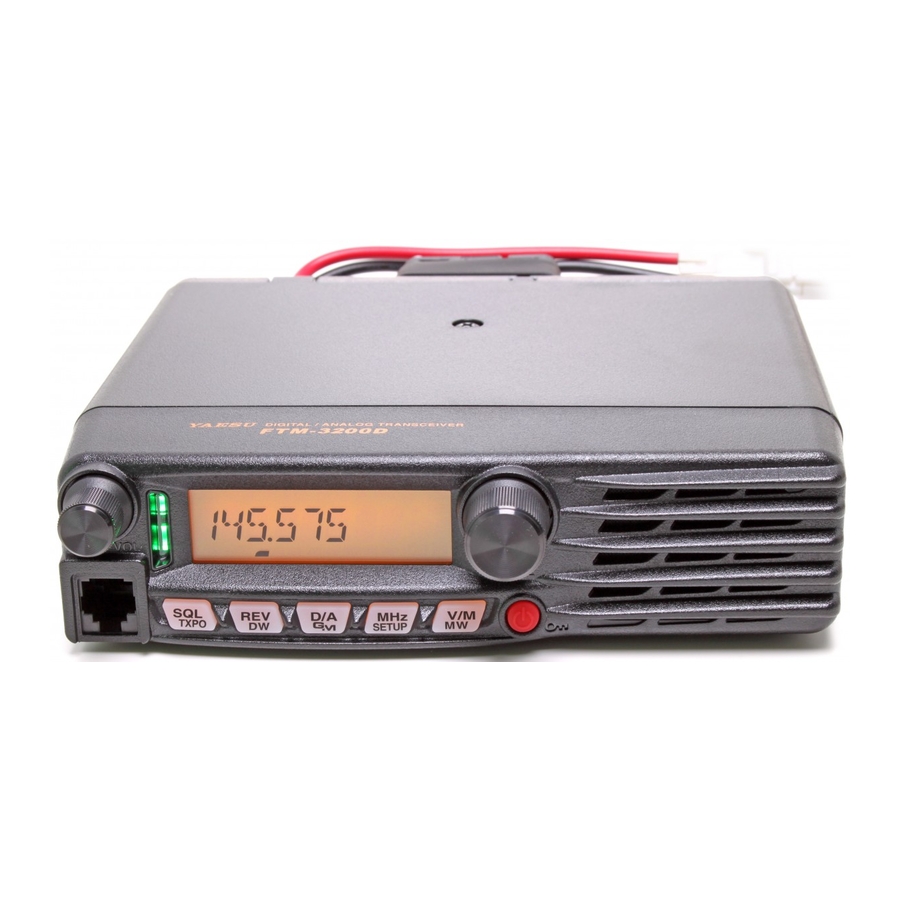

Page 10: Front Panel Controls & Switches
Pressing this key briefly and rotating the DIAL sets the squelch level. Press and hold in this key for over 1 second to select the transmission power (HIGH: 65 W / MID: 30 W / LOW: 5 W). FTM-3200DR Operating Manual... - Page 11 Press and hold in this key for over 1 second to activate the Dual Watch feature. Note: For details, refer to the Advanced Manual (download from the Yaesu website). [ D/A ( GM )] key ...
-
Page 12: Microphone Switches
You can reprogram the [ P1 ] , [ P2 ] , [ P3 ] , and [ P4 ] buttons for other functions, if desired. Note: For details, refer to the Advanced Manual (download from the Yaesu website). MIC ... -
Page 13: Rear Panel Connectors
DATA Jack Use this jack when updating the firmware. When a new firmware update for the FTM- 3200DR is available, go to the YAESU website to download the programming data and update the FTM-3200DR to its newest state. Cooling Fan ... -
Page 14: Basic Operation
This feature allows you to set the squelch so that only sig- nals exceeding a certain S-meter lev- el will open the squelch. For details, refer to the Advanced Manual (down- load from the Yaesu website). FTM-3200DR Operating Manual... -
Page 15: Frequency Navigation
To enter 146.000 MHz, press [ 1 ] à [ 4 ] à [ 6 ] à [ # ] Channel Step Selection The DIAL and microphone [ UP ] / [ DWN ] keys frequency tuning step can be changed. Note: See Setup Menu Item “STEP 43” on page xx. FTM-3200DR Operating Manual... -
Page 16: Selecting The Communication Mode
FCC ID: K6620523X50 / IC: 511B-20523X50 Basic Operation Selecting the communication mode The FTM-3200DR transceiver is equipped with the AMS (Automatic Mode Select) function which automatically selects from 4 modes of transmission corresponding to the signal being received. The transmit mode is selected according to the received signal so that C4FM digital signals, and analog signals are received and transmitted automatically. -
Page 17: Transmission
Note: Keep the microphone about 5 cm away from your mouth. The sensitivity (gain) of the microphone can be adjusted. For details, refer to the Advanced Manual (download from the Yaesu website). 3. Release PTT. The transmit mode/status indicator turns off and the transceiver returns to the receive mode. -
Page 18: Adjusting The Transmit Power
To cancel locking, press the [ Power ( Lock )] key M H z V / M TXPO SETUP again. To lock out some or all of the keys, use the Setup Menu Item “LOCK 23” see page xx for details. FTM-3200DR Operating Manual... -
Page 19: Advanced Operation
FCC ID: K6620523X50 / IC: 511B-20523X50 Advanced Operation Repeater Operation The FTM-3200DR includes the ARS (Automatic Repeater Shift) function which permits communication through repeaters automatically, by simply setting the receiver to the repeater frequency. 1. Tune to the repeater frequency. -
Page 20: Weather Broadcast Reception
National Oceanic and Atmospheric Administration) sends a weather alert accompanied by a 1050 Hz tone and subsequent weather report on one of the NOAA weather channels. You may enable this feature via Setup Menu Item “WX ALERT 50” see page xx for details. FTM-3200DR Operating Manual...
