golmar Stadio Plus Instruction Manual

golmar Stadio Plus Instruction Manual

Video kit digital installation
Hide thumbs Also See for Stadio Plus:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Cód. 50124545
Video Kit
digital installation
Stadio Plus
Instructions manual
T5000ML rev.0113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stadio Plus and is the answer not in the manual?

Questions and answers

Related Manuals for golmar Stadio Plus

Summary of Contents for golmar Stadio Plus

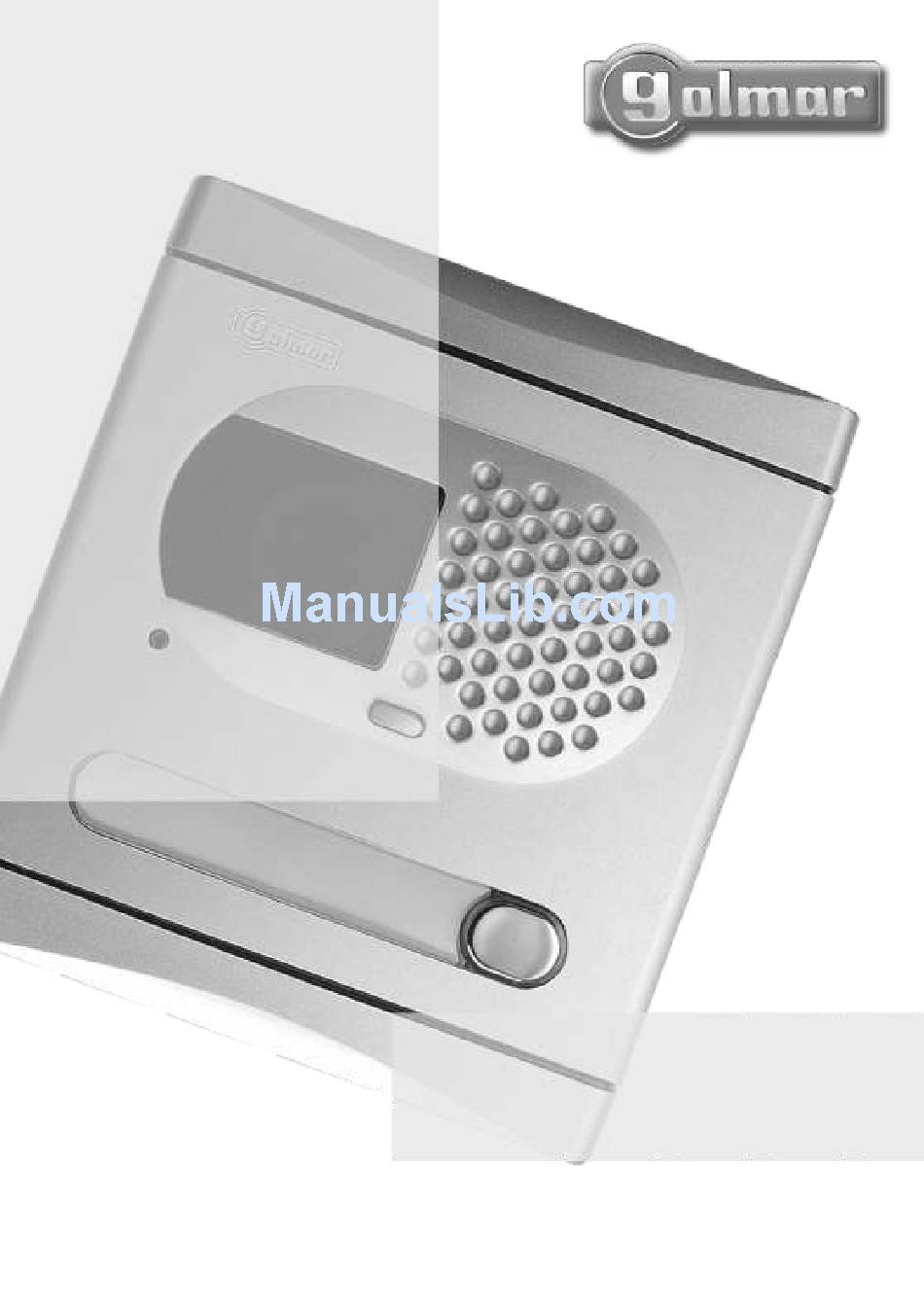

  • Page 1 Cód. 50124545 Video Kit digital installation Stadio Plus Instructions manual T5000ML rev.0113...

  • Page 2: Table Of Contents

    Each time the power supply is restarted, or after a modification, the system will remain blocked during 30 seconds. Always use RG-59 B/U MIL C-17 or RG-11 coaxial cables, (see page 92). Never use coaxial antenna cable. In installations no longers than 100m., Golmar RAP-5130 cable can be used.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Install or modify the equipment without the power connected. The installation and handling of these equipments must be performed by authorised personnel. The entire installation must be at least 40 cm. away from any other installation. With power supply: wDo not use excessive force when tightening the connector screws.

  • Page 4: System Characteristics

    SYSTEM CHARACTERISTICS Coming from previous page OWith Tekna Plus monitors, addition to the T-940 Plus telephones features: wPrivacy on audio and video communications. w"Autoswitch-on" function. w"Video-spy" function with the communication channel remaining free. wCall to a slave porter's exchange. wActivation of two auxiliary devices: secondary telecamera, courtesy light, ... wB/W &...

  • Page 5: Embedding Box Positioning

    DOOR PANEL INSTALLATION mbedding box positioning. 1850 1650 1450 The upper part of the door panel should be placed at 1,65m. height roughly. The hole dimensions are: 125(W) x 140(Al) x 57(D) mm. The door panel has been designed to be placed under most of the environmental conditions. However it's recommended to take additional cautions like rainproof covers.

  • Page 6: Door Panel Installation

    DOOR PANEL INSTALLATION ssembling the EL500SE microprocessed circuit. The EL500SE circuit is to be assembled on the top of the embedding box. Insert the circuit in the top flanges of the embedding box (1). Push-in the circuit in the bottom flanges (2) by pressing the pcb board. old the door panel on the embedding box.

  • Page 7: Push Buttons Wiring

    DOOR PANEL INSTALLATION ush buttons wiring. Plug the push buttons connection cable to the CN6 connector of the EL500SE microprocessor circuit, this cable has 10 conductors (P1 to P8, B and CP) for the connection of push buttons The CP terminal must be connected to the push buttons common terminal.
  • Page 8 DOOR PANEL INSTALLATION escription of the SW1 configuration dip-switch of the EL500SE microprocessor module. The SW1 configuration dip-switch is located at the right side of the circuit. It is accessed by opening the terminal connection block protection cover. Placed to OFF if the EL500SE microprocessor module is configured as EL500 operating mode Set to ON if the EL500SE microprocessor module is configured as EL501 operating mode...
  • Page 9 DOOR PANEL INSTALLATION escription of the SW2 configuration dip-switch of the EL500SE microprocessor module. The SW2 configuration dip-switch is located in the center of the circuit. It is accessed by opening the terminal connection block protection cover. Allows to activate the autoswitch-on function (audio-video communication without previous call) at the door panel that has this switch to ON position.

  • Page 10: Final Adjustments

    DOOR PANEL INSTALLATION lace the nameplate labels. Open the label holder. Place the label and close. inal adjustments. If after starting the system it's considered that the audio volume isn't correct, proceed with the necessary adjustments as shown. The telecamera has a pan and tilt mechanism built in to adjust the telecamera position.

  • Page 11: Power Supply Installation

    POWER SUPPLY INSTALLATION nstalling the FA-805 power supply. The power supply must be installed in a dry and 3,5 x 45 protected place. It's recommended to protect the DIN-7971 power supply by using a thermo-magnetic circuit breaker. To install the power supply directly on the wall, drill two holes of Ø6 mm.

  • Page 12: Description

    MONITOR DESCRIPTION escription of the Tekna Plus monitor. REF. CODE 00000000000 INTER SLAVE MASTER CODE ATENCIÓN Alta tensión. No abrir la tapa. ESCALERA PISO PUERTA Manipular sólo por personal STAIR FLOOR DOOR del servicio técnico. WARNING High voltage. Don't open cover. Handle only by technical service.

  • Page 13: Function Push Buttons

    MONITOR DESCRIPTION unction push buttons. On-Off push button. After any monitor reset and during the next 45 seconds, all the monitor functions will be disabled, with the exception of call reception. If the handset is on the craddle allows the activation of an optional second camera (*). If not, allows to make an intercom call or to activate the second camera (*).

  • Page 14: El562 Module

    MONITOR ADJUSTMENTS l562 module for video installations with twisted pair cable. The monitors included in kits /SC come with the El562 module plugged in the CN4 connector, that's placed in the monitor base. NOTE: on this type of installations the EL500SE microprocessed circuit must be setting with SW1-3 to ON (page 75).

  • Page 15: Monitor Connector Description

    MONITOR CONNECTOR DESCRIPTION escription of the RCTK-PLUS monitor connector. a. Wall attachment hole (x6). b. Monitor attachment hook (x2). c. Vertical wiring input. d. Attachment clip. e. Wiring input hole. f. Installation terminals: +, –: positive, ground. Vin : video signal coaxial input. Malla: coaxial shield.

  • Page 16: Monitor Installation

    MONITOR INSTALLATION ix the monitor connector to the wall. Avoid to place the monitor near to heating sources, in dusty locations or smoky environments. To install the monitor directly over the wall, drill two holes of Ø6mm. and use the supplied screws. The upper part of the monitor connector must be placed at 1,60m.

  • Page 17: Programming

    MONITORS PROGRAMMING rogramming the Tekna Plus monitors. Set to ON the switch number 2 of the SW2 configuration dip switch, that's accessible in the EL500SE module by opening the terminal connector protection cover. The door panel will reproduce a sound to advise that the system has entered into programming mode.

  • Page 18: Description

    TELEPHONE DESCRIPTION escription of the T-940 Plus telephone. Telephone handset. Speaker grille. Microphone hole. Subjection hole. Telephone cord connectors. Function push buttons. On-Off light indicator. Call reception volume control. Hook switch. The telephone has a three positions switch placed on the bottom part of the telephone (closest to the telephone cord connector) that allows to control the call reception level volume.

  • Page 19: Telephone Installation

    TELEPHONE DESCRIPTION erminal connector description. – positive, ground. audio, digital communication. A , D : intercom. INT : SA : auxiliary calling device output. HZ- : door bell push button input. TELEPHONE INSTALLATION ix the telephone. It will be necessary to open the telephone for wiring and fixing purposes.

  • Page 20: Programming

    TELEPHONES PROGRAMMING rogramming the T-940 Plus telephones. Set to ON the switch number 2 of the SW2 configuration dip switch, that's accessible in the EL500SE module by opening the terminal connector protection cover. The door panel will reproduce a sound to advise that the system has entered into programming mode.
  • Page 21 TELEPHONE DESCRIPTION escription of the T-740 Plus telephone Telephone handset Speaker grille Microphone hole Subjection hole Telephone cord connectors Door release push button Hook switch Auxiliary function push button Volume control erminal connector description. +, - : Positive, ground. Audio, digital communication. Al : Connection to external door release push button.

  • Page 22: Function Push Buttons

    TELEPHONE DESCRIPTION unction push buttons If the handset is on the craddle sends a panic call to the porter's exchanges that have enabled the reception of this type of call. If not, allows to call to the master porter's exchange. During call reception and communication progresses allows the lock release activation.

  • Page 23: Telephone Installation

    TELEPHONE INSTALLATION ix the telephone to the wall It is necessary to open the telephone for wiring and fixing purposes To open the telephone, insert a plain screwdriver into the slots and gently lever as shown in the drawing Avoid placing the telephone near sources of heat, in dusty locations or smoky environments The telephone can be fixed using an electrical embedding box or directly on the wall, as shown on the picture If the telephone will be...

  • Page 24: Programming

    TELEPHONES PROGRAMMING rogramming the T-740 Plus telephones. Set to ON the switch number 2 of the SW2 configuration dip switch, that's accessible in the EL500SE module by opening the terminal connector protection cover. The door panel will reproduce a sound to advise that the system has entered into programming mode.

  • Page 25: Installation Diagrams

    INSTALLATION DIAGRAMS onnexion of an a.c. lock release. If an alternating current lock release has been installed, use an alternating current output of the FA- 805 power supply or the TF-104 transformer and connect it to the lock release as it is shown on the respective diagram.
  • Page 26 Malla Malla D4L-PLUS Malla Malla M =Master. S =Slave. Access door panel FA-805 230110 0 AP - - + Malla out+ out- Main...

  • Page 27: Video Installation With Coaxial

    INSTALLATION DIAGRAMS ne or several accesses with coaxial cable. Cascade installation example. Remove the jumper from the CN4 connector in all the monitors (see page 81), except on the one where the video cable finishes (don't uses the video output). Distributed installation example.
  • Page 28 EL562 EL562 EL562 EL562 D6l-Plus/2H M =Master. S =Slave. Access door panel FA-805 230110 0 AP - - + Malla out+ out- Main...

  • Page 29: Video Installation Without Coaxial 95 To

    INSTALLATION DIAGRAMS ne or several accesses with twisted pair. Cascade installation example. Remove JP1 jumper from all of the EL562 monitor modules (see page 81), except on the one where the twisted pair cable finishes (don't uses the video output). EL562 Distributed installation example.

  • Page 30: Optional Connections

    OPTIONAL CONNECTIONS xternal lock release activation. Door panel The lock release can be activated at any moment by using an external push button, that must be connected between 'AP' and ' ' terminals of the door – panel. Door opening timed at 3 or 15 seconds, with the help of the dip switch AP _ SW1-2 (see page 75).

  • Page 31: Aux. Devices Activation With Tekna Plus .97 2Nd Camera Activation

    OPTIONAL CONNECTIONS ctivation of a second camera. The use of a SAR-12/24 relay will be required to activate a second camera and an internal modification on the monitor shall be done, as it's described on page 80. This facility disables the intercom function.

  • Page 32: Intercom

    OPTIONAL CONNECTIONS ntercom function. Tekna Plus monitor and (*) T-740Plus and T-940 Plus telephones have intercom facility between two units of the same apartment . To enable this function check the following conditions: - One of the units has been configurated as master and the other unit as slave with intercom, as described on pages 84, 87 and 91.

  • Page 33: Door Bell Push Button Connection

    OPTIONAL CONNECTIONS uxiliary devices activation with T-740 Plus telephone. First t T-740 Plus telephone must be configured with SW1 dip switch in "PA" output mode function (see page 89). To activate auxiliary devices the use of a SAR-12/24 relay unit will be required. If this device is shared for all the T-740 Plus telephones, link their PA terminal and use just one relay unit.

  • Page 34: Troubleshooting Hints

    TROUBLESHOOTING HINTS An easy way to check that the system is working properly is to disconnect the wiring from the door panel and to check the monitor directly connected to the EL500SE circuit. No shortcircuit will damage the connected units, with the exception of a shortcircuit between CTO and ' ' –...

  • Page 35: Notes

    NOTAS/NOTES...

  • Page 36: Compliance

    Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
