VOLUME/SQUELCH/MONITOR KEY [VOL/SQL MONI]
Push when you adjust the volume level. While the
"VOL" icon blinking, push [UP]/[DWN] to adjust the vol-
ume level.
The Volume Mute function:
While holding down this key, push [Z] to temporary
maximize the volume level. Do the same operation
again to turn OFF the function.
The Volume Loud function:
While holding down this key, push [Y] to temporary
mute the audio output. Do the same operation again to
turn OFF the function.
SCAN/DUAL KEY [SCAN DUAL]
Push to start or stop a normal or priority scan. (p. 15)
Hold down for 1 second to enter the Dual/Tri-watch
mode. (p. 16)
Hold down this key and [Hi/Lo] for 1 second, to activate
the AquaQuake function. (p. 13)
CHARGING CONNECTOR
Connect the supplied charger.

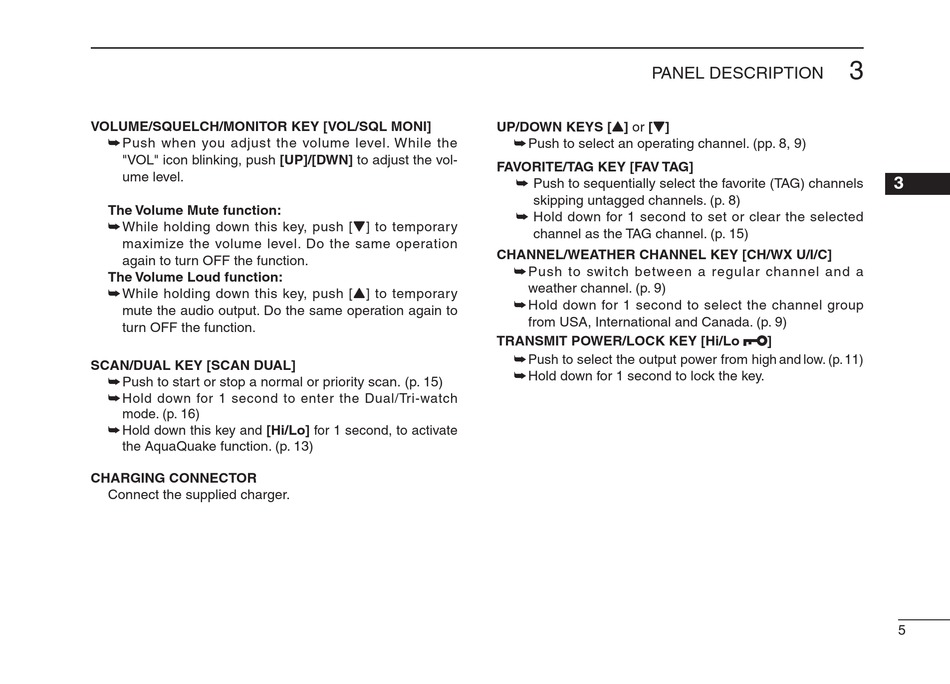

PANEL DESCRIPTION
UP/DOWN KEYS [Y] or [Z]
FAVORITE/TAG KEY [FAV TAG]
Push to sequentially select the favorite (TAG) channels
Hold down for 1 second to set or clear the selected
channel as the TAG channel. (p. 15)
CHANNEL/WEATHER CHANNEL KEY [CH/WX U/I/C]
Push to switch between a regular channel and a
Hold down for 1 second to select the channel group
TRANSMIT POWER/LOCK KEY [Hi/Lo
Push to select the output power from high and low. (p. 11)
Hold down for 1 second to lock the key.
3
1
2
3
4
5
6
7
8
9
]
10
11
12
13
14
15
16
5
