PANEL DESCRIPTION

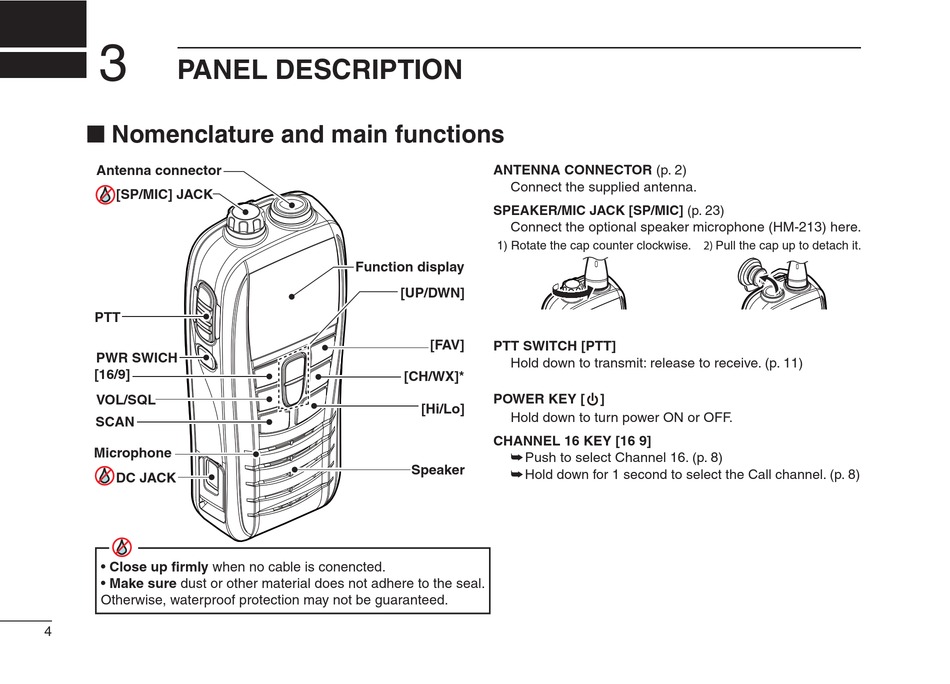

Nomenclature and main functions
Antenna connector
[SP/MIC] JACK
PTT
PWR SWICH
[16/9]
VOL/SQL
SCAN
Microphone
DC JACK
Close up firmly when no cable is conencted.
Make sure dust or other material does not adhere to the seal.
Otherwise, waterproof protection may not be guaranteed.
4
ANTENNA CONNECTOR (p. 2)
Connect the supplied antenna.
SPEAKER/MIC JACK [SP/MIC] (p. 23)
Connect the optional speaker microphone (HM-213) here.
1) Rotate the cap counter clockwise. 2) Pull the cap up to detach it.
Function display
[UP/DWN]
[FAV]
PTT SWITCH [PTT]
Hold down to transmit: release to receive. (p. 11)
[CH/WX]*
POWER KEY [
[Hi/Lo]
Hold down to turn power ON or OFF.
CHANNEL 16 KEY [16 9]
Speaker
]
