8c. Attach the Power and Communications
Cables (Ethernet Connect)
Use an Ethernet UTP cable to connect the RJ-45 connection on
the Ethernet board to the 10BaseT network port jack.
Connect the power cord to the barrel connector on the main
board
. (Make sure that the Ethernet cable is plugged in before
power is supplied.)
After a few seconds, the HandPunch display will show:
ENTER ID/(TIME)(DATE).

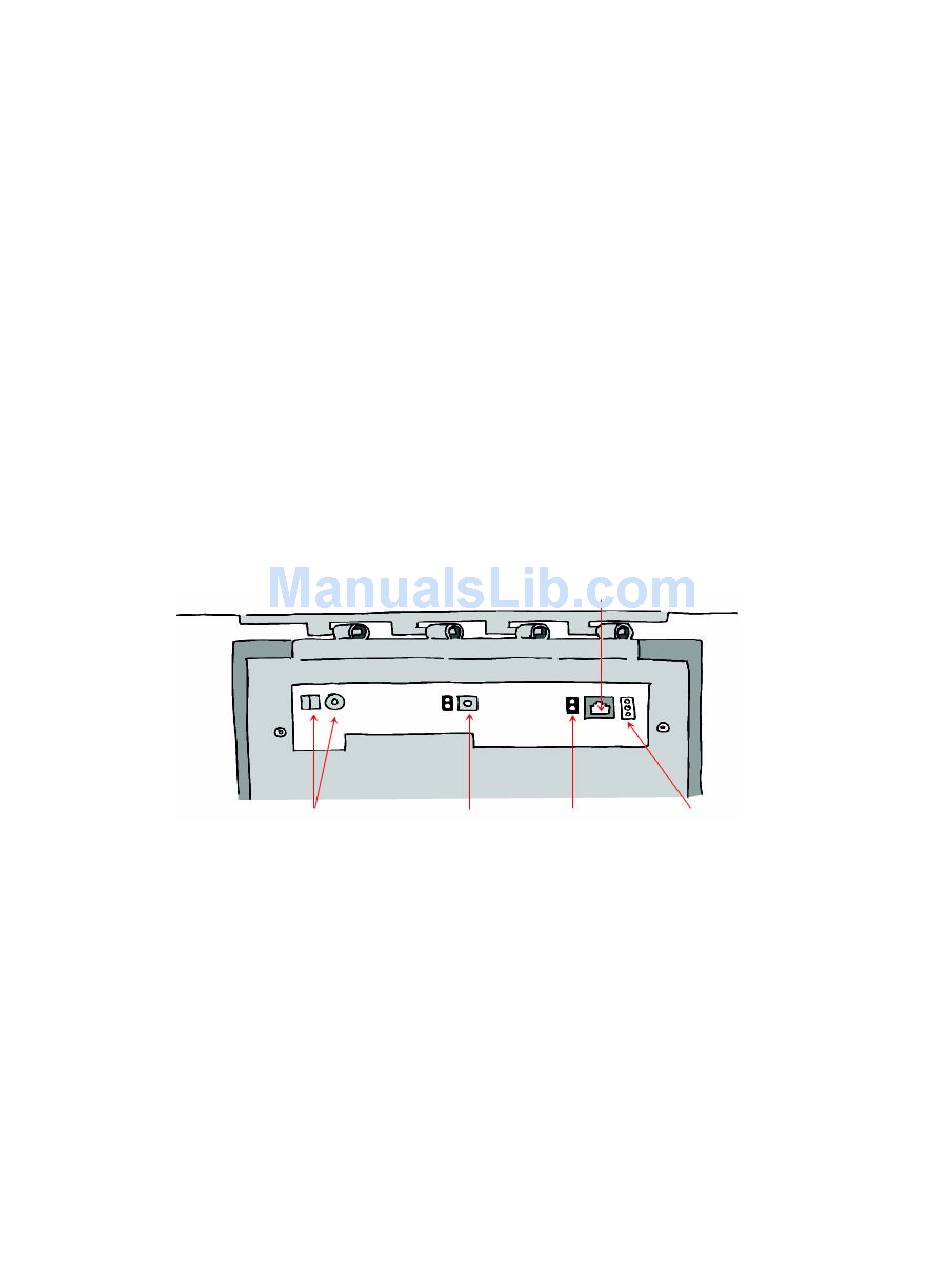

Power Connectors
18
WALL
RJ-45 Ethernet Jack
Reset Switch J7 Battery Jumper
Top of Terminal
Serial RS-232
Connection
