5c. Power and Communications Jack
Installation (Ethernet Connect)

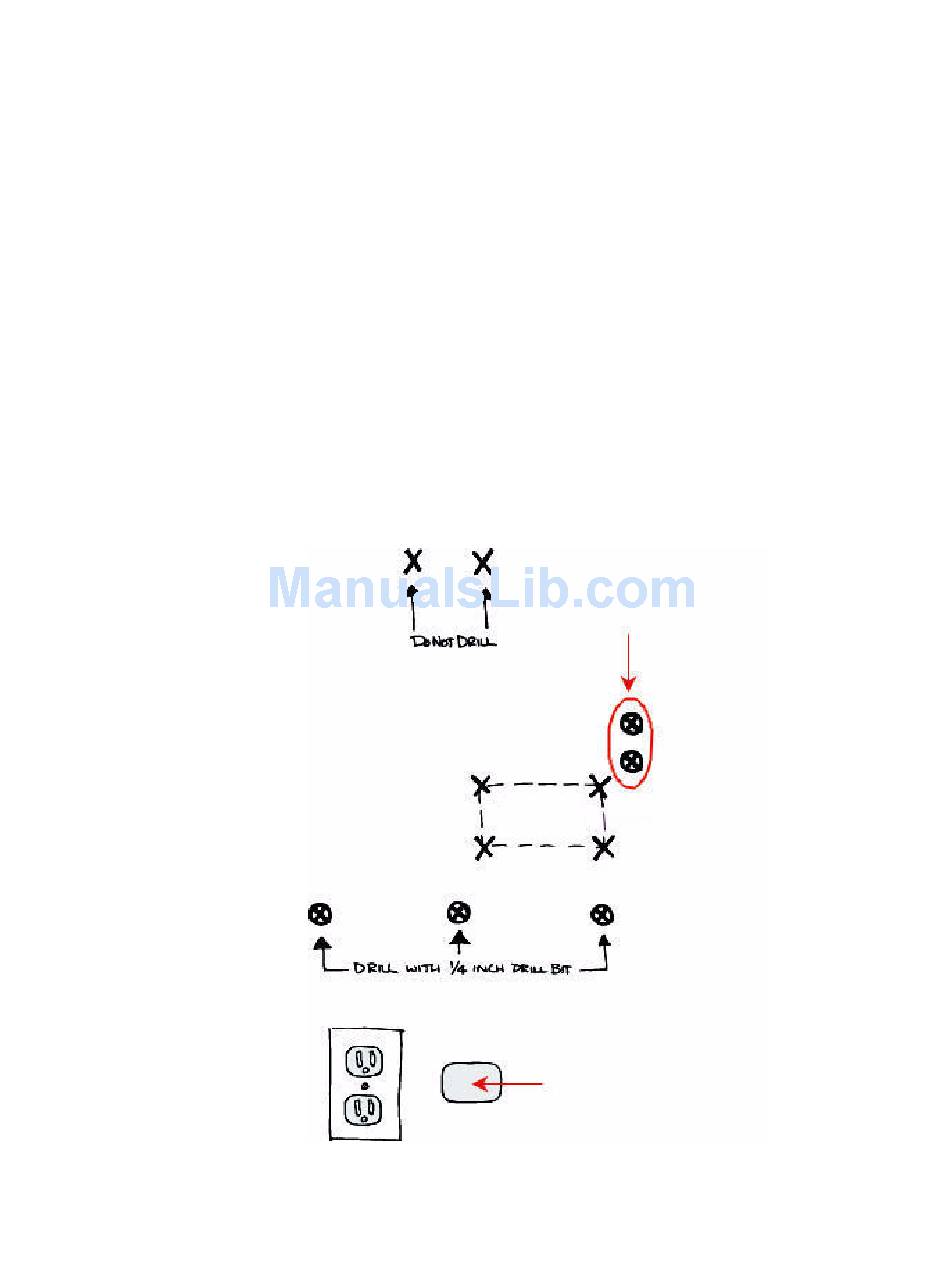

Have a certified electrician install a 110v AC outlet (an outlet
with surge suppression is recommended) within five feet of
where the HandPunch will be mounted.
Install an RJ-45 surface mount jack within five feet of the
HandPunch and have a qualified network cabling technician
connect a 10BaseT port to this jack.
12
For Conduit Clamp
(if needed)
Install 10BaseT port here.
