PCI-DAS4020/12 User's Guide
Connecting the board for I/O operations
Connectors, cables – I/O connectors
Table 2-1
lists the board connectors, applicable cables, and compatible accessory products for the PCI-
DAS4020/12.
Connector type
Compatible cables
Compatible accessory products
Information on signal connections
General information regarding signal connection and configuration is available in the Guide to Signal
Connections . This document is available on our web site at
http://www.measurementcomputing.com/signals/signals.pdf.
BNC connectors
The board's analog input and trigger input connectors are standard female BNC connectors that are
visible from the rear of the computer when you install the board.
Table 2-1. Board connectors, cables, compatible hardware
BNC connector: five standard female
Auxiliary connector: 40-pin header connector
C40FF-x
C40-37F-x
BP40-37-x
With the C40FF-x cable:
CIO-MINI40
With the C40-37F-x cable:
CIO-MINI37
SCB-37
With the BP40-37-x and the C37FF-x or C37FFS-x cable:
SCB-37
CIO-ERB24
CIO-ERB08
SSR-RACK24
SSR-RACK08

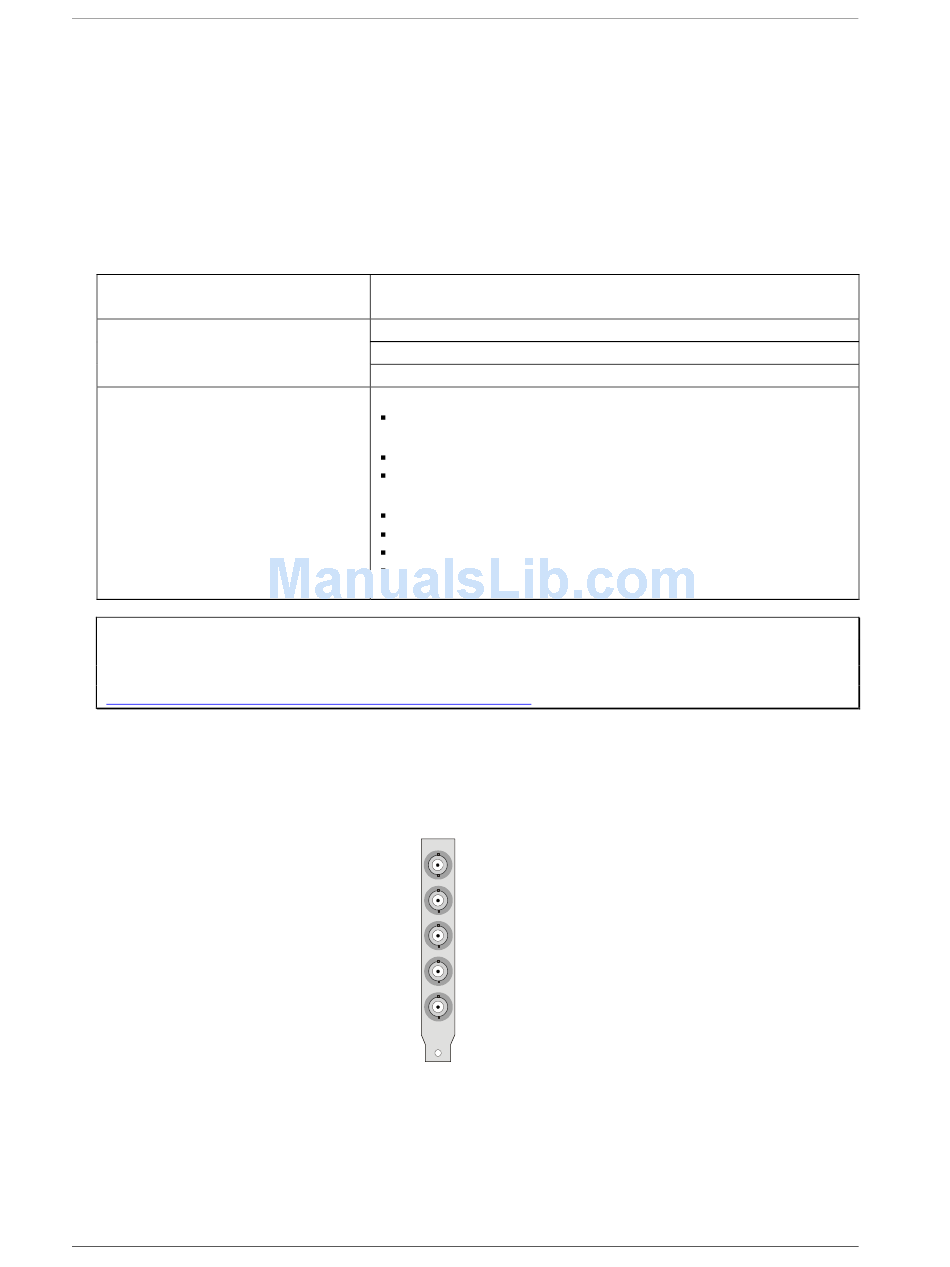

Figure 2-1. Analog inputs and trigger Input BNC connectors
Channel 0
Channel 1
Channel 2
Channel 3
TRIG /Ext Clk
2-4
Installing the PCI-DAS4020/12
