- Page 1 User Guide: EDG0200UG001 Enfora® EDG0200 PCMCIA EDGE Card Revision 1.00...
-
Page 2: Copyright Statement
Further, Enfora Inc. reserves the right to revise this publication, and to make changes from time to time in the contents hereof without obligation of Enfora Inc. to notify any person of such revision or changes. -
Page 3: Safety Information For Wireless Handheld Devices
CAUTION Changes or modifications without the express consent of Enfora, Inc. voids the user’s authority to use the equipment and will avoid any applicable warranty. This equipment has been tested and found to comply with the limits pursuant to Part 15 Subpart B , Part 22 and Part 24 of the FCC rules. -
Page 4: Safety Instructions
• DO NOT use the EDG0200 Card in the vicinity of explosive atmospheres. Turn your EDG0200 Card OFF in a “Blasting Area” or gas station. Obey all signs and instructions • Local laws may prohibit the use of this device while driving in order to avoid distractions and prevent accidents. -
Page 5: General Safety Instructions
DO NOT share the same extension power line for the product with high power- consuming appliances to avoid power overload. • NEVER attempt to disassemble the product! Doing so may cause permanent damage to the product and will void the warranty. EDG02000UG001 Page v Copyright 2005, Enfora Inc. -
Page 6: Table Of Contents
UTTON EFINITIONS ..............14 MOBILE HONE OOLS ISPLAY EFINITIONS ..........15 MOBILE HONE OOLS NTERNET ONNECTION IZARD ....................... 18 ROUBLESHOOTING ..........................19 COPE ........................19 ARDWARE ........................19 OFTWARE ....................20 THER ONSIDERATIONS EDG02000UG001 Page vi Copyright 2005, Enfora Inc. -
Page 7: Overview
Thank you for purchasing the Enfora® EDG0200 PCMCIA Card (hereafter referred to as the EDG0200 Card)! Welcome to the world of wireless data. Your EDG0200 Card is a wireless data modem in PCMCIA card format that uses the EDGE (Enhanced Data Rates for GSM Evolution) or GPRS (General Packet Radio Service) wireless communication system, allowing you to transfer data on the go. -
Page 8: Package Contents
Check the contents of the package. The following items should be included. If there is any item that is damaged or missing, please contact your dealer immediately. Description Quantity The EDG0200 Card BVRP Software CD Table 2 – Package Contents EDG0200UG001... -
Page 9: Appearance

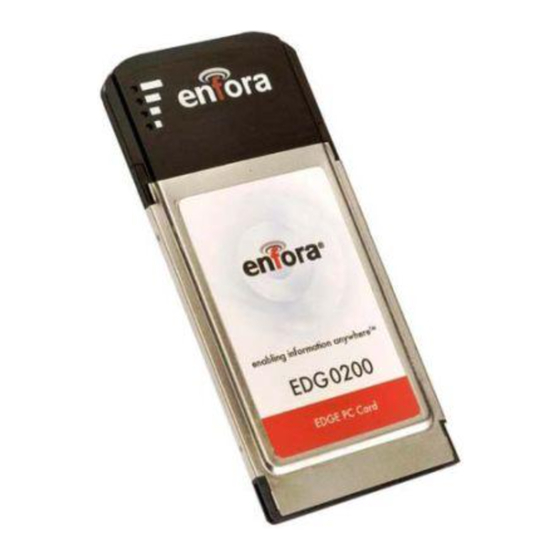

Appearance The EDG0200 Card functions like any standard Type II PCMCIA Card. It operates from either 3.3 V or 5 V PCMCIA Type II slots. Figure 1 – Photo of EDG0200 Signal Strength Indicator Figure 2 – Photo of Antenna with Signal Strength Indicator... -
Page 10: The Network
GPRS is the technology that allows data transmission via the GSM network. Voice minutes are not used when transmitting data with GPRS. However, the wireless carrier will charge the user for data that is transmitted via the EDG0200 Card. Check with your wireless carrier for more information on their data plans. -
Page 11: Installing The Pcmcia Card Into A Laptop
Installing the PCMCIA Card into a Laptop The EDG0200 Card is a standard Type II PCMCIA card that should work in most laptop computers. Follow these instructions to install the card into your laptop. 1. Find the PCMCIA slot on your laptop. Typically the slot is located on the side of your laptop. - Page 12 The following instructions explain how to install BVRP mobile PhoneTools on your computer. 1. Place the Enfora CD into the CD drive of your computer. 2. You will see the BVRP/Enfora setup screen: 3. Click on mobile PhoneTools Software Installation. Click on the Language Version of mobile PhoneTools that you need.
- Page 13 Click here to Install mobile PhoneTools 4. Click on Click here to Install mobile PhoneTools. 5. You will see the following screen: 6. Click on Next to continue. 7. You will see the following License Agreement screen: EDG0200UG001 Page 7 12/12/2005...
- Page 14 8. Click on Yes to continue. You will see the following screen: 9. Click on the radio button marked Complete. 10. Click on Next to continue. You will see the following Setup Status screen: EDG0200UG001 Page 8 12/12/2005...
- Page 15 11. Once the installation is complete, you will see the following screen, which prompts you to configure Persistent Connection Features. The Persistent Connection Features are: 1) Start mobile PhoneTools on boot, and 2) Automatic Internet Connection (connection automatically reconnects if dropped).
- Page 16 Do not check the above checkmark box if you do not want to install Persistent Connection Features. Note: If you choose not to install Persistent Connection Features during Setup, you will have to run the Setup program again if you choose to install them at a later time.
- Page 17 12. If you choose to install Persistent Connection Features click on the check mark box. 13. Click Next to continue. You will see the following screen: EDG0200UG001 Page 11 12/12/2005...
- Page 18 If you did not install Persistent Connection Features double-click on the mobile PhoneTools icon on your desktop and proceed to Step 21. 20. Next, you will see the Installing PCMCIA Card screen. Insert the EDG0200 PC Card into your laptop now.
- Page 19 21. Once you have inserted the card into your laptop, you will see the following screen. Please wait while your PC Card is being configured by the software. 22. You are now ready to begin using your EDG0200 PC Card. EDG0200UG001...
-
Page 20: Mobile Phonetools Button Definitions
mobile PhoneTools Button Definitions mobile PhoneTools Display Definitions EDG0200UG001 Page 14 12/12/2005... -
Page 21: Mobile Phonetools Internet Connection Wizard
mobile PhoneTools Internet Connection Wizard There are two ways to create an Internet connection: 1. Select the Globe Icon within mobile PhoneTools. The Internet Connection Wizard will automatically start if there are no existing Internet connections defined. 2. Use the Menu > Setup > Internet connections option. Then, activate Add new Connection. - Page 22 Use Default Network Customize Network Settings Settings EDG0200UG001 Page 16 12/12/2005...
- Page 23 EDG0200UG001 Page 17 12/12/2005...
-
Page 24: Troubleshooting
Troubleshooting If you have any questions regarding installation, set up, or operation of the EDG0200 PCMCIA EDGE Card, please contact the vendor or distributor from whom you purchased the card, or your wireless network carrier. http://www.enfora.com EDG0200UG001 Page 18 12/12/2005... -
Page 25: Scope
LIMITED WARRANTY Scope Enfora warrants to the original purchaser of the product that, for a period of one (1) year from the date of product purchase, the product hardware, when used in conjunction with any associated software (including any firmware and applications) supplied by Enfora, will be free from defects in material or workmanship under normal operation. -
Page 26: Other Considerations
(iii) caused by use of any software other than any software supplied by Enfora, or by use of the product other than in accordance with its documentation or (iv) the result of electrostatic discharge, electrical surge, fire, flood or similar causes. - Page 27 Governing Law This limited warranty shall be governed by the laws of the State of Texas, United States of America, without regard to conflict of laws principles. This limited warranty shall not be governed in any respect by the United Nations Convention on Contracts for the International Sale of Goods.
