Enfora GSM1308 Quick Manual

The GSM-41J Modem Kit: Enfora GSM1308/1318
This kit enables your SMS-enabled OPLC to communicate via cellular networks.
The kit contains an Enfora GSM1308/1318 modem and related hardware.
The modem can communicate via GSM, GPRS + TCP/IP at 850/900/1800/1900 MHz.
Note:
Standard Vision controllers only: V120, V230, V260, V280, V530, V290 (V290-19-B20B only)
VisiLogic programs including the GPRS Function Block must use FB V5.04 and later. To learn how to
update FBs, refer to the VisiLogic Help topic FBs Library.

Connection

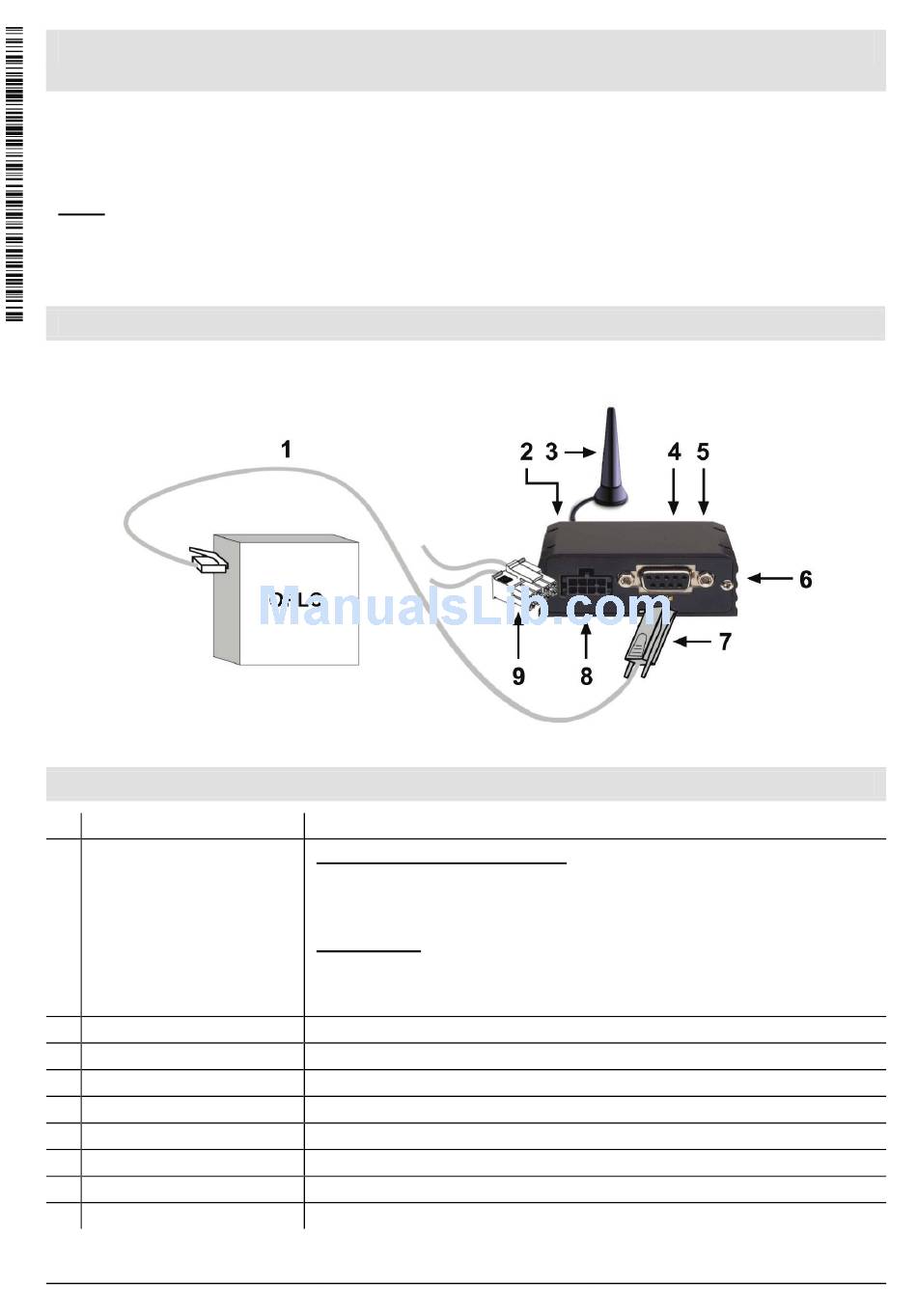

The figure below shows you how to assemble the different elements of the Enfora GSM1308/1318
modem, and how to connect the modem to an OPLC.

Component Identification

# Description
1 Communication cable,
controller to modem
2 GSM antenna connector
3 GSM antenna
4 Sim Card slot
5 LED
6 9-pin RS232 port
7 9 pin male adapter
8 Power supply socket
9 Power supply cable
Unitronics
Notes
Vision Series / M90/91 Series:
To connect the modem to the PLC, use the standard programming
cable that is supplied with your controller, or with your controller's
programming kit.
Jazz Series:
Jazz does not comprise an embedded communication port
Add-on ports are available by separate order
Use the communication cable supplied with the Add-on port
Located on modem
Located on modem. See page 2
Located on modem. See page 2
Located on modem
p/n MJ10-22-CS72
Located on modem
Cable p/n 211300508
1
