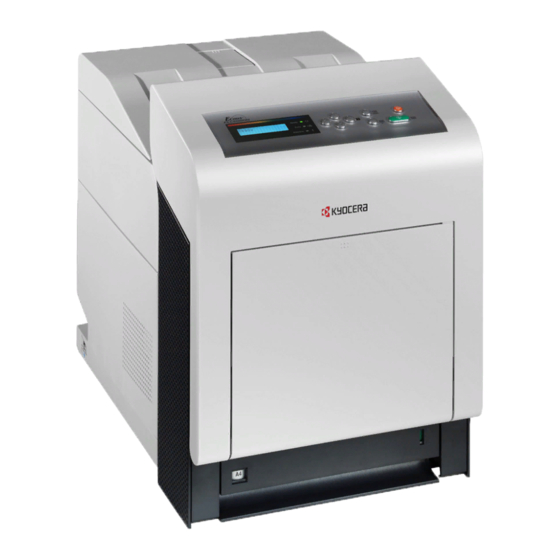

A4 colour laser printer
Hide thumbs Also See for FS-C5100DN:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Operating Manual
FS-C5100DN
FS-C5200DN
FS-C5300DN
Operation Guide

Advertisement

Table of Contents
loading

Related Manuals for Kyocera FS-C5100DN

Summary of Contents for Kyocera FS-C5100DN

  • Page 1 FS-C5100DN FS-C5200DN FS-C5300DN Operation Guide...

  • Page 3: Table Of Contents

    Contents Machine Parts Components at the Front of the Printer ........1-2 Components at the Left of the Printer ........1-2 Internal Components ..............1-3 Components at the Rear of the Printer ........1-3 Operation Panel ................1-4 Printing Operation Changing Network Interface Parameters .........
  • Page 5 All rights are reserved. Copying or other reproduction of all or part of this guide, any copyrightable subject matter without the prior written consent of Kyocera Mita Corporation is prohibited. Any copies made of all or part of this guide, any copyrightable subject must contain the same copyright notice as the material from which the copying is done.
  • Page 6 License Agreements IBM Program License Agreement THE DEVICE YOU HAVE PURCHASED CONTAINS ONE OR MORE SOFTWARE PROGRAMS (“PROGRAMS”) WHICH BELONG TO INTERNATIONAL BUSINESS MACHINES CORPORATION (“IBM”). THIS DOCUMENT DEFINES THE TERMS AND CONDITIONS UNDER WHICH THE SOFTWARE IS BEING LICENSED TO YOU BY IBM. IF YOU DO NOT AGREE WITH THE TERMS AND CONDITIONS OF THIS LICENSE, THEN WITHIN 14 DAYS AFTER YOUR ACQUISITION OF THE DEVICE YOU MAY RETURN THE DEVICE FOR A FULL REFUND.
  • Page 7 3. Limitation of Remedies IBM's entire liability under this license is the following; For any claim (including fundamental breach), in any form, related in any way to this license, IBM's liability will be for actual damages only and will be limited to the greater of: the equivalent of U.S.
  • Page 8 Monotype Imaging License Agreement “Software” shall mean the digitally encoded, machine readable, scalable outline data as encoded in a special format as well as the UFST Software. You agree to accept a non-exclusive license to use the Software to reproduce and display weights, styles and versions of letters, numerals, characters and symbols (“Typefaces”) solely for your own customary business or personal purposes at the address stated on the registration card you return to Monotype Imaging.
  • Page 9 12 You shall not sublicense, sell, lease, or otherwise transfer the Software and/or Typefaces without the prior written consent of Monotype Imaging. 13 Use, duplication or disclosure by the Government is subject to restrictions as set forth in the Rights in Technical Data and Computer Software clause at FAR 252-227-7013, subdivision (b)(3)(ii) or subparagraph (c)(1)(ii), as appropriate.
  • Page 10 THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF...
  • Page 11 THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;...
  • Page 12 Shielded circular cables should be used for interfacing with the computer. Precautions for Use Any modifications without prior permission of Kyocera may cause harmful interference. If any modifications or changes are made to this equipment without prior permission of Kyocera, Kyocera as the manufacturer does not guarantee the compliance with the FCC Rules.
  • Page 13 Cautionary Labels The printer bears any of the following labels. For Europe, Asia, and other countries For U.S.A. and Canada xiii...
  • Page 14 0.1 ppm, we recommend you not to install the printer in a confined area where ventilation is blocked. Declaration of Conformity for U.S.A. Model name: Color Page Printer FS-C5100DN/FS-C5200DN/ FS-C5300DN Trade name: Kyocera Mita Responsible party: Kyocera Mita America, Inc.
  • Page 15 Schalldruckpegel beträgt 70 dB (A) oder weniger gemäß EN ISO 7779. Disclaimer Kyocera Mita will not be liable to customers or any other person or entity for any loss or damage caused or alleged to be caused directly or indirectly by equipment sold or furnished by us, including but not limited...
  • Page 16 Energy Saving Control Function The device comes equipped with a Low Power Mode where energy consumption is reduced after a certain amount of time elapses since the device was last used, as well as a Sleep Mode where printer functions remain in a waiting state but power consumption is still reduced to a minimum when there is no activity with the device within a set amount of time.
  • Page 17 FS-C5100DN FS-C5200DN FS-C5300DN Initial Auto Sleep Setting 5 minutes (60 minutes) 5 minutes (60 minutes) 15 minutes (60 minutes) Power consumption in Auto 16W (45W) [for USA and 15W (45W) [for USA and 18W (70W) [for USA and Sleep Canada]...
  • Page 18 Installation Precautions Environment CAUTION Avoid placing the printer on or in locations which are unstable or not level. Such locations may cause the printer to fall. This type of situation presents a danger of personal injury or damage to the printer. Avoid locations with humidity or dust and dirt.
  • Page 19 Power Supply/Grounding the Printer WARNING Do not use a power supply with a voltage other than that specified. Avoid multiple connections in the same outlet. These types of situations present a danger of fire or electrical shock. Plug the power cord securely into the outlet. If metallic objects come in contact with the prongs on the plug, it may cause a fire or electric shock.
  • Page 20 Precautions for Use Cautions when Using the Printer • Do not place metallic objects or containers with water (flower vases, flower pots, cups, etc.) on or near the printer. This type of situation presents a danger of fire or electrical shock should they fall inside. •...
  • Page 21 Other Precautions • Do not place heavy objects on the printer or cause other damage to the printer. • Do not open the top/left/rear cover, turn off the main switch, or pull out the power plug during printing. • During printing, some ozone is released, but the amount does not cause any ill effect to one's health.
  • Page 22 About the Operation Guide This Operation Guide has the following chapters: Chapter 1 - Machine Parts This chapter explains the names of parts. Chapter 2 - Printing Operation This chapter explains how to print from your workstation. Chapter 3 - Maintenance This chapter explains how to replace the toner container and how to care for your printer.

  • Page 23: Machine Parts

    1 Machine Parts This section provides explanations and illustrations for you to determine the parts and their functions. Try to be familiar with the names and functions of these parts for correct use and optimal performance. This chapter contains explanations on the following topics: Components at the Front of the Printer Components at the Left of the Printer Internal Components...
  • Page 24 Components at the Front of the Printer Operation Panel Front Cover Face-down Tray (Top Tray) MP (Multi-Purpose) Tray Paper Cassette Power Switch Components at the Left of the Printer 10 11 12 13 Left Cover Waste Toner Box Main Charger Units on the Drum Units 10 Magenta Toner Container (M) 11 Cyan Toner Container (C) 12 Yellow Toner Container (Y)

  • Page 25: Internal Components

    Internal Components 14 Paper Transfer Unit 15 Envelope Switch Components at the Rear of the Printer 19 20 16 USB Memory Slot 17 Power Cord Connector 18 Option Interface Slot 19 Network Interface 20 Network indicators 21 USB Interface 22 Rear Cover Machine Parts...

  • Page 26: Operation Panel

    Operation Panel 24 25 30 31 23 Message Display 24 Ready Indicator 25 Data Indicator 26 Attention Indicator 27 Arrow Key 28 [MENU] Key 29 [OK] ([ENTER]) Key 30 [GO] Key 31 [CANCEL] Key Machine Parts...

  • Page 27: Printing Operation

    2 Printing Operation This chapter contains explanations on the following topics: Changing Network Interface Parameters Printing a Network Interface Status Page Loading Printer Driver 2-11 Printing from Application Software 2-14 Printing Operation...
  • Page 28 Changing Network Interface Parameters This printer supports TCP/IP, TCP/IP (IPv6), NetWare, AppleTalk, IPP, SSL Server and IPSec protocols (For details see Advanced Operation Guide.) TCP/IP, TCP/IP (IPv6) settings Press [MENU]. Press repeatedly until Network > appears. Network > Press . Each time you press , the selection changes.
  • Page 29 TCP/IP This section describes how to enable the TCP/IP protocol. If TCP/IP >TCP/IP > is set to Off, use to select On and press [OK] ([ENTER]). Press . Each time you press , the selection changes. >>DHCP >>Bonjour >>IP Address 000.000.000.000 >>Subnet Mask 000.000.000.000...
  • Page 30 TCP/IP (IPv6) This section describes how to enable the TCP/IP (IPv6) protocol. >TCP/IP (IPv6) > If TCP/IP (IPv6) is set to Off, use to selecto On and press [OK] ([ENTER]). Press . Each time you press , the selection changes. >>ICMPv6(NDP) >>DHCPv6 >>Prefix Length...
  • Page 31 Press . Each time you press , the selection changes. Refer to the explanations below when specifying the settings. If you are using NetWare, AppleTalk, IPP, SSL Server or IPSec to connect to a network, you must enter an administrator ID. By default, the administrator ID is 000000.
  • Page 32 NetWare This section explains the procedure for enabling NetWare. >NetWare > Enter the administrator ID and password. Then, if NetWare is set to Off, use to select On and press [OK] ([ENTER]). Press >>Frame Type Auto Press [OK] ([ENTER]). A blinking question mark (?) appears. Each >>Frame Type time you press , the selection changes.
  • Page 33 AppleTalk This section explains the procedure for enabling AppleTalk. >AppleTalk Enter the administrator ID and password. Then, if AppleTalk is set to Off, use to select On. Press [OK] ([ENTER]). A blinking question mark (?) appears. >AppleTalk Press [OK] ([ENTER]) again. Press [MENU].
  • Page 34 SSL Server This section explains the procedure for enabling SSL Server. >SSL Server > Enter the administrator ID and password. Then, if SSL Server is set to Off, use to select On and press [OK] ([ENTER]). Press . Each time you press , the selection changes.

  • Page 35: Printing A Network Interface Status Page

    Printing a Network Interface Status Page You can print out a status page for the network interface. The network status page shows the network addresses, and other information under various network protocols about the network interface card. The default setting is Off (print disable). Adjust/Maintenance Adjust/Maintenance is used to adjust the print quality and to carry out printer maintenance.
