Specifications; Dimensions And Clearances - Control Techniques FM-3 Reference Manual

Power consumption: 3 W from drive power supply.
I/O Supply Voltage: 10 Vdc-30 Vdc.
Function

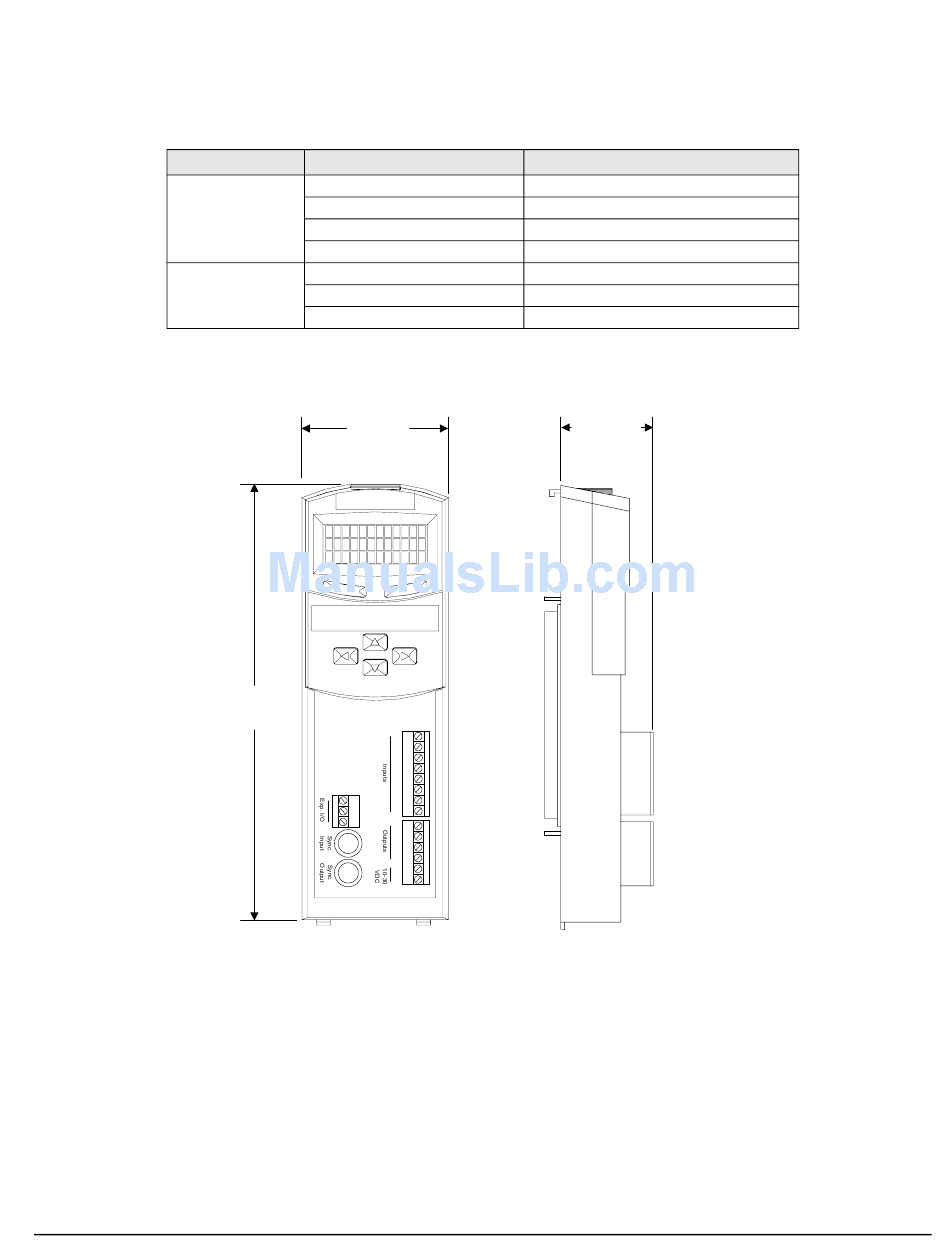

Dimensions and Clearances

FM-3 Programming Module Reference Manual
ON State Voltage
ON State Current
Inputs
OFF State Voltage
OFF State Current
Max. ON State Voltage
Outputs Max. ON State Current
Max. OFF State Current
2.5
(63.5)
7.187
Programming Module
(182.5)
1
2
3
4
5
6
485 + 7
485 - 8
SHLD
1
2
3
4
+
-

Specifications

Electrical Characteristics
10 Vdc-30 Vdc
2 mA-6.5 mA
0 Vdc-3 Vdc
0 µA-400 µA
I/O Supply Voltage -1.5 V
150 mA
100 µA
1.25
(31.75)
223
