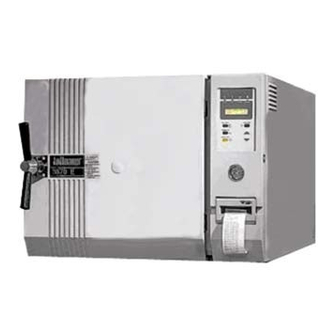

Tuttnauer 2540 EHS Operation & Maintenance Manual

Electronic table-top pre and post vacuum autoclave
Hide thumbs Also See for 2540 EHS:
Table of Contents

Advertisement

Quick Links

See also: Technician Manual
OPERATION
&
MAINTENANCE
MANUAL
Electronic Table-Top Pre and Post Vacuum
Autoclave
models 2540, 3870 EHS
Cat. No. MAN205-0034005EN Rev. D
Tuttnauer USA Co., Ltd., 25 Power Drive Hauppauge, NY 11788, USA,
: (800) 624 5836, (631) 737 4850,
Fax: (631) 737 0720
e-mail: info@tuttnauerUSA.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2540 EHS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tuttnauer 2540 EHS

Summary of Contents for Tuttnauer 2540 EHS

  • Page 1 Electronic Table-Top Pre and Post Vacuum Autoclave models 2540, 3870 EHS Cat. No. MAN205-0034005EN Rev. D Tuttnauer USA Co., Ltd., 25 Power Drive Hauppauge, NY 11788, USA, : (800) 624 5836, (631) 737 4850, Fax: (631) 737 0720 e-mail: info@tuttnauerUSA.com...

  • Page 3: Table Of Contents

    TABLE OF CONTENT DRAWINGS PAGE NO......................GENERAL ................. Incoming Inspection ....................Warranty .................. Warranty Statement ................GENERAL INFORMATION ....................Introduction ................Operating Conditions ................Stand – by heating mode ....................... Utilities ..........Overall Dimensions for the 2540 model ..........Overall Dimensions for the 3870 model .................
  • Page 4 TABLE OF CONTENT (Cont.) DRAWINGS PAGE NO..............MAINTENANCE INSTRUCTIONS ..........Preventive and Scheduled Maintenance ................Draining the Reservoir ................Replacing the Air Filter ..............Replacing the Door Gasket ..............Replacing the Cartridge Fuse ..............Checking the Safety Valve ..............Cleaning water outlet strainer ..........
  • Page 5 TABLE OF CONTENT (Cont.) DRAWINGS PAGE NO..................Suggested Site Drain Drawing ........................Front View ........................Rear View ....................Front Panel Keyboard...

  • Page 6: General

    If any damage is found contact your dealer as soon as possible so that they can file a claim with the shipping carrier and also notify Tuttnauer. All Tuttnauer products are carefully inspected prior to shipment and all reasonable precautions are taken in preparing them for shipment to assure safe arrival at their destination.
  • Page 7 If you have any questions or there are any difficulties with this instrument and the solution is not covered in this manual, please contact your dealer or Tuttnauer USA Co. Do not attempt to service this instrument yourself. Tuttnauer USA Co. 25 Power Drive Hauppauge, NY, 11788, USA...

  • Page 8: General Information

    GENERAL INFORMATION Introduction The EHS is a high speed, high vacuum, high capacity, hospital grade sterilizer with FDA cleared flash cycle. A built in vacuum pump and steam generator allows for increased load size and dramatically reduces total cycle time. The closed door drying system provides a faster and more thorough drying cycle.
  • Page 9 The Jacketed chamber: This autoclave has a jacketed stainless steel chamber. The space between the walls of the chamber and jacket is used to generate and provide the steam required by the autoclave. The heating elements are located inside this cavity as is the mineral free water supplied by the reservoir.

  • Page 10: Operating Conditions

    Utilities For proper operation, these are the required utilities that need to be supplied: Site requirements for installation of a 2540 EHS 1. Counter top able to support a minimum 200 lb. (the unit is shipped with a suitable stand - 26”W x 33”D x 34”H) 2.
  • Page 11 Site requirements for installation of a 3870 EHS 1. Counter top able to support a minimum 400 lb. * (the unit is shipped with a suitable stand - 26”W x 33”D x 34”H) 2. Counter space minimum 26”W x 39”D x 24”H * (see unit dimensions below) 3.
  • Page 12 SUGGESTED SITE DRAIN DRAWING Discharge hoses from EHS Hanger with 90º bend 4” x 4” PVC air break Milford Type Copper Coated Hanger 1 ½” PVC to trap 4” Metal worm gear clamp...

  • Page 13: Overall Dimensions For The 2540 Model

    Overall Dimensions for the 2540 model 2540 EHS Dimensions inches 20.0 16.7 28.1 43.3 1110 F (Front legs) 11.8 F1 (rear legs) 17.1 21.6...

  • Page 14: Overall Dimensions For The 3870 Model

    Overall Dimensions for the 3870 model 3870 EHS Dimensions inches 26.0 20.7 34.5 55.0 1400 32.0 F (Front legs) 17.8 F1 (rear legs) 24.0 28.6...

  • Page 15: Technical Specifications

    Technical Specifications Value Property 2540 3870 Dia. 10” (254 mm) 15” (380 mm) Chamber Depth 18.7” (475 mm) 30” (760mm) Chamber volume 6.1 gal (23 lit.) 22.2 gal (84 lit.) Jacket volume 2.3 gal (8.5 lit.) 4.0 gal (15 lit.) Shipping weight 165 lb (75 kg) 313 lb (142 kg)

  • Page 16: Construction

    Construction The main parts of the autoclave are made of materials as indicated below: ♦ Chamber is built of stainless steel 316 L. ♦ Door is made of stainless steel 304. ♦ Trays are made of stainless steel 304. ♦ Water reservoir is made of hard plastic material. ♦...

  • Page 17: Environment Emission Information

    A. The peak sound level generated by the sterilizer is < 70 / dBA with background noise of 60 dB. B. The total heat transmitted by the sterilizer is: < 100 W / h (341 btu) for 2540 EHS < 150 W / h (512 btu) for 3870 EHS. 2.12...

  • Page 18: Directives And Standards

    2.13 Directives and Standards Every autoclave meets the provisions of the following Directives and is designed, manufactured and tested in compliance with the following Standards: 2.13.1 Technical Directives 1. Medical device directive MDD/93/42/EEC. 2.13.2 Technical Standards 1. A.S.M.E. Code section VIII division 1 for pressure vessels.
  • Page 19 Front View...
  • Page 20 Rear View...

  • Page 21: Sterilization Programs

    STERILIZATION PROGRAMS The autoclave offers 4 sterilization programs, with or without a drying stage and 2 test programs. Program 1 - Unwrapped Instruments (1 - Flash 273) Program 1 is recommended for a single unwrapped instrument and other materials intended for immediate use and for the prevention of cross contamination, when the manufacturer recommends autoclaving at temperatures of 273ºF (no drying cycle is required).

  • Page 22: Program 2 (2 - Wdry 273)

    Program 2 (2 - WDry 273) Program 2 is recommended for wrapped instruments, porous load and other materials when the manufacturer recommends autoclaving at temperatures of up to 273ºF with a drying stage. Nominal parameters ♦ Sterilization temperature: 273ºF - 279ºF. ♦...

  • Page 23: Program 3 (3-Wdry 250)

    Program 3 (3-WDry 250) Program 3 is recommended for delicate wrapped or unwrapped instruments and other material which the manufacturer recommends autoclaving at temperatures of up to 250ºF with a drying stage Nominal parameters ♦ Sterilization temperature: 250ºF - 256ºF ♦...

  • Page 24: Program 4

    Program 4 3.4.1 Program 4 - (4 - Fast 273) This program is available only in the 2540EHS Program 4 is recommended for wrapped instruments, non- lumened and materials that the manufacturer recommends autoclaving at temperatures of up to 273ºF with a drying stage. Nominal parameters ♦...
  • Page 25 3.4.2 Program 4 - (4 - WDry 273) This program is available only in the 3870EHS Program 4 is recommended for wrapped instruments, porous load and other materials when the manufacturer recommends autoclaving at temperatures of up to 273ºF with a drying stage. Nominal parameters ♦...

  • Page 26: Program 5 (5 - B&D Test)

    Program 5 (5 - B&D Test) This is a test program, with fixed sterilization parameters 273ºF and 3.5 minutes that cannot be modified by the operator. Nominal parameters ♦ Sterilization temperature: 273ºF - 279ºF. ♦ Sterilization time: 3.5 minutes. ♦ Dry time: 2 minutes. Operations Sequence: ♦...

  • Page 27: Program 6 (6 - Vacuum Leakage Test)

    Program 6 (6 – Vacuum Leakage Test) Vacuum is produced in the chamber down to (P1) -12.5 psig (25.5 Ih). At this stage all the valves close. The autoclave remains in this stage for 5 minutes. This period enables the condition in the chamber to reach equilibrium.

  • Page 28: Keyboard (Keys And Display)

    KEYBOARD (keys and display) Front Panel Keyboard...

  • Page 29: Description And Functions Of The Front Panel Keyboard

    Description and Functions of the Front Panel Keyboard The command panel is comprised of 3 sections, on the lower section there are 6 keys; 3 command keys and 3 programming keys. The middle section consists of the LCD display with two rows and 16 characters on each line.
  • Page 30 3. Start/ Stop key This key commands the following 3 functions: ♦ Starting the process. ♦ Stopping the process. ♦ Canceling the FAIL message from the command panel and opening the electric door locking if available. Starting the process: For starting a program this key is active only when the autoclave is in the “Ready”...
  • Page 31 5. UP key This key will increase the value displayed above the cursor, for either programming the clock or for setting system parameters by the technician. 6. DN key This key will decrease the value displayed above the cursor, for either programming the clock or for setting system parameters by the technician.

  • Page 32: Description Of The Operational Messages

    Description of the Operational Messages The display is comprised of 2 rows, each row consists of 16 characters. 4.2.1 The upper row: On the left side of the upper row, 10 characters are allotted for the selected programs. 1 - Flash 273 Fast sterilization, fast exhaust, no drying.
  • Page 33 ♦ The format of the display is, MM:SS (two digits for minutes and two digits for seconds). ♦ On completion of the process, the END message is displayed in the screen area between the readouts of temperature and pressure. When a cycle is started by means of pressing the START key, the load number is displayed for 2 seconds on the left side of the lower row.

  • Page 34: Description Of Displayed Error Messages And Safety Measures

    Description of Displayed Error Messages and Safety Measures Low Heat Message is displayed and sterilization does not start if the autoclave has not reached sterilization temperature after heating for 30 minutes. Low Temp. Message is displayed, FAIL indicator lights and cycle is aborted, if the temperature drops for more than 5seconds below the sterilization temperature.
  • Page 35 Add Water Message is displayed, the buzzer is activated four times and the "Water” LED illuminates if the water level switch indicates no water in the mineral free water reservoir and the START button is pressed. In this case the cycle will not begin until water is added and the START button is pressed.

  • Page 36: Printer

    PRINTER Printer Operation The autoclave can be equipped with a character printer, which prints a detailed history of each cycle performed by the instrument (for the record or for subsequent consideration). The printing is made on thermal paper with 24 characters per line and prints the following information each time a cycle is run.
  • Page 37 PRINTER OUTPUT DESCRIPTION Operator :___________ To be filled in manually by operator. Autoclave:001 Autoclave identifying number. 02/03/2002 09:04:44 Date and time sterilization cycle ended. Load number: 00011 Load number. Useful for record keeping and scheduling maintenance Cycle ended −−−−−−−−−−−−−−−−−−− D30:17 187.5°F 26.2Ihg The time, temperature and pressure during post vacuum drying -----------------------...

  • Page 38: Dpu 20 Printer Handling

    DPU 20 Printer Handling The printer is driven and controlled automatically by the control unit, while the autoclave performs a sterilization program. Figure 1 Figure 2 To set the paper roll in the printer perform the following steps: 5.2.1 Gently push the clips for removing the front panel, remove the panel and pull out the printer gently.

  • Page 39: Dpu 30 Printer Handling

    DPU 30 Printer Handling 5.3.1 Setting Paper If the autoclave is equipped with A DPU 30 printer, follow the instructions in this paragraph. 1. Press the paper cover open button, and open the paper cover. Handle the paper cutter carefully not to cut your hand. 2.

  • Page 40: Preparation Before Sterilization

    1. Clean instruments immediately after use. It is recommended that instruments be ultrasonically cleaned using Tuttnauer’s Clean and Simple enzymatic cleaning solution. 2. After ultrasonic cleaning rinse under tap water for 30 seconds and pat dry to remove residual minerals.
  • Page 41 24. Do not stack pouches. It is recommended that a Tuttnauer Pouch Rack be used. This will allow the operator to place pouches on their side, which will increase capacity and provide proper spacing to ensure steam penetration and promote adequate drying.
  • Page 42 25. Packs 1. Place packs upright on trays, side by side. 2. Packs should not touch the chamber walls. 3. Pack instrument sets in a manner that prevents damage to delicate items. 4. Pack hollowware sets so that all openings face the same direction and so that the contents cannot move inside the pack.

  • Page 43: Dental Handpiece Sterilization

    When loading, sufficient space should be allowed between each handpiece to allow effective steam penetration. Tuttnauer recommends the review of ANSI/AAMI publication ST-42-1998 entitled: "Steam sterilization and sterility assurance using table-top sterilizers in office-based, ambulatory-care, medical, surgical and dental facilities."...
  • Page 44 For Unwrapped Cycles: Note: Trays need not be removed for unwrapped cycles. Before placing a dental handpiece onto a sterilizer tray, make sure that the instruments that are not of the same metal (stainless steel, carbon steel, etc.) are separated and placed in different trays. In case carbon steel instruments are used with stainless steel trays, the tray should be lined with a towel or paper-wrap before positioning the instrument.

  • Page 45: Operation

    OPERATION Operating Instructions 1. Open the main feed-water supply valve. 2. Open the mineral-free water supply valve. 3. Ensure the drain is connected. The drainage hose must be fixed very securely to the drain when water is released to reduce the risk of injury to personnel.

  • Page 46: Lifting And Carrying

    12. At the end of the cycle a buzzer rings and the START light switches OFF. The message “END” is displayed. The exhaust valve is opened to prevent formation of a vacuum, if the door is not opened immediately. In the event of program failure, the exhaust valve is opened, a continuous sound followed by beeps is output, the FAIL indicator is lit and the appropriate error message is displayed.
  • Page 47 8.3.3 Unloading On completion of the cycle, the load shall be immediately removed from the sterilizer and a visual inspection made to ascertain that the load is dry, and that sterilizing indicators have made the required color change. Do not touch the strainer’s cover, mounted on the left side of the autoclave, during or shortly after operation.

  • Page 48: Maintenance Instructions

    Should the need arise, technical assistance or a service technician can be requested by either calling your dealer or Tuttnauer USA Co. Warning: Before carrying out any preventive maintenance operation, ensure that there is no pressure in the autoclave.

  • Page 49: Draining The Reservoir

    Draining the Reservoir Caution! Before starting, Make sure that the electric cord is disconnected and there is no pressure in the autoclave. The drain valves are located on the autoclave’s front. Each compartment (jacket reservoir and vacuum pump water reservoir) is connected to a separate drain valve (see location drawing below).

  • Page 50: Replacing The Air Filter

    Replacing the Air Filter In order to “break” the vacuum, at the end of the dry phase, filtered atmospheric air enters the chamber via a solenoid valve. The filtration of the air is performed by the bacteriological filter that is placed at the inlet of the chamber, through a solenoid valve.

  • Page 51: Replacing The Door Gasket

    Replacing the Door Gasket Pull off the gasket from the door groove and install the new gasket referring to the drawings as above points 1, 2 and 3. Caution! This gasket is designed with a trapezoidal cross section. The gasket should be placed with the widest side towards the door.

  • Page 52: Replacing The Cartridge Fuse

    ¼ turn, and pull it out. Insert a new cartridge into the holder and turn the cover clockwise until locked. Make sure that the correct fuse is installed as specified in the drawings below: Model 2540 EHS Model 3870 EHS...

  • Page 53: Checking The Safety Valve

    Checking the Safety Valve The safety valve is located in the water reservoir In order to prevent the safety valve from becoming blocked, it is necessary to allow the steam pressure to escape through the valve. This procedure should be done every month as follows: 1.

  • Page 54: Cleaning Water Outlet Strainer

    Cleaning water outlet strainer Caution! Before proceeding, Make sure that the electric cord is disconnected and there is no pressure in the autoclave. Warnings 1. Do not touch the strainer’s cover, mounted on the left side of the autoclave, during and shortly after operation. Touching the hot strainer’s cover may cause severe injuries.

  • Page 58: Spare Parts List

    SPARE PARTS LIST PART NUMBER DESCRIPTION 2540 3870 1.25A fuse water pump 01910106 01910106 6.3A fuse vacuum pump ELE035-0011 ELE035-0011 FIL175-0016 FIL175-0016 0.2µ HEPA filter Door gasket 02610023 02610019 DPU20 01610406 01610406 Printer paper  DPU30 01610406  DPU20 01610100 Printer ...

This manual is also suitable for:
