Vega VEGAMIP R61 Operating Instructions Manual

Receiving unit
Hide thumbs Also See for VEGAMIP R61:
Table of Contents

Advertisement

Quick Links

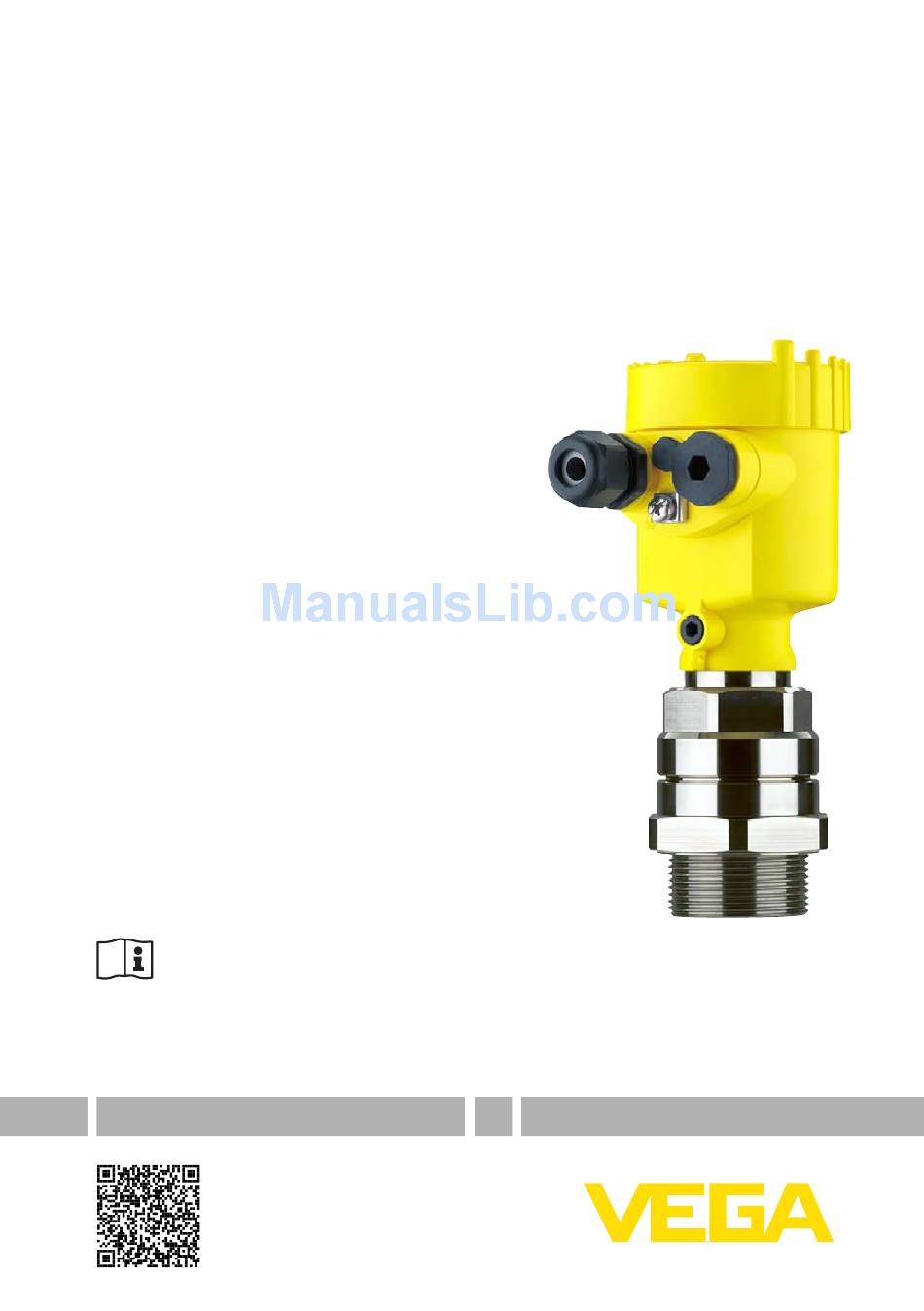

Operating Instructions
VEGAMIP R61
Receiving unit
- Relay
Document ID: 35786

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAMIP R61 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGAMIP R61

Summary of Contents for Vega VEGAMIP R61

  • Page 1 Operating Instructions VEGAMIP R61 Receiving unit - Relay Document ID: 35786...

  • Page 2: Table Of Contents

    How to proceed if a repair is necessary ................36 Dismount..........................37 Dismounting steps......................37 Disposal ......................... 37 Supplement ..........................38 Technical data ........................ 38 Dimensions ........................41 Industrial property rights ....................45 Trademark ........................45 VEGAMIP R61 • Receiving unit...

  • Page 3: Vegamip R61 • Receiving Unit

    Contents Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions manual. Editing status: 2017-11-16 VEGAMIP R61 • Receiving unit...

  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, tip, note This symbol indicates helpful additional information.

  • Page 5: For Your Safety

    Arbi- trary conversions or modifications are explicitly forbidden. For safety reasons, only the accessory specified by the manufacturer must be used. To avoid any danger, the safety approval markings and safety tips on the device must also be observed and their meaning looked up in this operating instructions manual. VEGAMIP R61 • Receiving unit...

  • Page 6: Eu Conformity

    This information is only valid for USA and Canada. Hence the follow- ing text is only available in the English language. Installations in the US shall comply with the relevant requirements of the National Electrical Code (ANSI/NFPA 70). VEGAMIP R61 • Receiving unit...

  • Page 7: Environmental Instructions

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGAMIP R61 • Receiving unit...

  • Page 8: Product Description

    Alternatively, you can access the data via your smartphone: • Download the VEGA Tools app from the "Apple App Store" or the "Google Play Store" • Scan the Data Matrix code on the type label of the instrument or •...
  • Page 9 The VEGAMIP 61 consists of the components: Fig. 1: VEGAMIP 61 with plastic housing Emitting unit VEGAMIP T61 Receiving unit VEGAMIP R61 with control electronics Housing lid Housing with control electronics Process fitting Several antenna versions are available for different applications.

  • Page 10: Packaging, Transport And Storage

    The protective cover protects the sensor housing against soiling and intense heat from solar radiation. You will find additional information in the supplementary instructions manual "Protective cover" (Document-ID 34296). Flanges Screwed flanges are available in different versions according to the following standards: DIN 2501, EN 1092-1, BS 10, ASME B 16.5, JIS B 2210-1984, GOST 12821-80. VEGAMIP R61 • Receiving unit...
  • Page 11 3 Product description You can find additional information in the supplementary instructions manual "Flanges according to DIN-EN-ASME-JIS". Electronics module The electronics module VEGAMIP R61 is a replacement part for microwave barriers of VEGAMIP series 60. You will find additional information in the following operating instruc- tions manual: • "Electronics module VEGAMIP R61 (receiving unit)" (Document-ID 36428) Mounting adapter "Abra- In case of extremely abrasive conditions you can cover the emitting sion protection"...
  • Page 12 3 Product description Fig. 5: VEGAMIP 61 with mounting adapter "High temperature with extension" -40 … +450 °C (-40 … +842 °F) VEGAMIP R61 • Receiving unit...

  • Page 13: Mounting

    "Technical data" meets the existing ambient conditions. Cable glands Metric threads In the case of instrument housings with metric thread, the cable glands are screwed in at the factory. They are sealed with plastic plugs as transport protection. VEGAMIP R61 • Receiving unit...

  • Page 14: Mounting Instructions

    PP, PE, HDPE, POM > 500 mm PA, PVC, PVDF > 250 mm Foodstuffs and wood Flour > 100 mm Cereals, corn, rice > 100 mm Wood chips (dry) > 500 mm Wood chips (moist) > 100 mm VEGAMIP R61 • Receiving unit...
  • Page 15 < 1000 mm PA, PVC, PVDF < 500 mm Rubber < 50 mm Glass or ceramic Inspection glass < 200 mm Aluminiumoxide ceram- < 200 mm ic Al Abrasion protection (ce- < 100 mm ramic) VEGAMIP R61 • Receiving unit...
  • Page 16 Fig. 9: Installation in pipelines Min. distance 100 mm (3.94 in) Threaded version Mount the threaded version of VEGAMIP 61 in the following way: VEGAMIP R61 • Receiving unit...
  • Page 17 In the case of VEGAMIP 61 with NPT thread, the instrument seals in the thread itself. Hence, no counter nut is necessary for these ver- sions. Buildup Avoid long sockets in which the medium can remain and if possible, mount VEGAMIP 61 front-flush. This applies mainly if buildup and dust are expected. VEGAMIP R61 • Receiving unit...
  • Page 18 Select the material according to the diameter of the socket and adapt the length as far as possible to the shape of the vessel wall. Secure the filling material against falling out or turning. If using a fixing screw is technically not possible, you can secure the material in the socket with an adhesive. VEGAMIP R61 • Receiving unit...
  • Page 19 This mounting adapter "Abrasion protection" is screwed onto the thread of VEGAMIP 61 like an adapter. The mounting adapter "Abrasion protection" can only be used with the threaded version (internal horn antenna with PTFE cover) VEGAMIP R61 • Receiving unit...
  • Page 20 The extension is available in four lengths: 40, 60, 80 and 100 mm (1.57, 2.36, 3.15, 3.94 in). VEGAMIP R61 • Receiving unit...
  • Page 21 To get an optimal switching signal, the two sensors must be aligned to each other. The accuracy must be in a range of ±5°. Axis offset The axes of the two sensors can be offset up to < 5% of the sensor distance (d) from each other. Example: with a distance of 1000 mm VEGAMIP R61 • Receiving unit...
  • Page 22 For a reliable function, the emitting and receiving units must be installed in the same polarisation direction. If multiple instrument pairs are installed in one vessel, the instrument pairs can be coded, so to speak, by mounting them in different polari- sation positions so that they do not influence one another. VEGAMIP R61 • Receiving unit...
  • Page 23 On instrument versions with detach- able horn antenna, the antenna extension can be retrofitted. To minimize false echoes, take note of the polarisation plane. Keep the position of the polarisation marking with respect to the antenna extension in mind. Mount the antenna extension according to the fol- lowing illustration. VEGAMIP R61 • Receiving unit...
  • Page 24 4 Mounting Fig. 19: Possibilities for signal deflection Metal plate for deflection of the microwave signal Bent antenna extension Polarisation marking VEGAMIP R61 • Receiving unit...

  • Page 25: Connecting To Power Supply

    Prior to setup you have to replace these protective caps with ap- proved cable glands or close the openings with suitable blind plugs. On plastic housings, the NPT cable gland or the Conduit steel tube must be screwed into the threaded insert without grease. VEGAMIP R61 • Receiving unit...

  • Page 26: Connection Procedure

    7. Connect the screen to the internal ground terminal, connect the external ground terminal to potential equalisation 8. Tighten the compression nut of the cable entry gland. The seal ring must completely encircle the cable 9. Screw the housing lid back on The electrical connection is finished. VEGAMIP R61 • Receiving unit...

  • Page 27: Wiring Plan, Single Chamber Housing

    If necessary, a correspondingly dimensioned resistor must be con- nected in parallel to the PLC input. With a voltage U of 24 V and a PLC inner resistance R > 100 kΩ, the additional load resistance R must be between 6.8 and 8.2 kΩ. VEGAMIP R61 • Receiving unit...
  • Page 28 5 Connecting to power supply Fig. 22: Wiring plan receiving unit - VEGAMIP 61 (receiver) when connecting to a PLC PLC/process control system Internal resistance of the PLC Additional load resistance (6.8 … 8.2 kΩ) Voltage supply VEGAMIP R61 • Receiving unit...

  • Page 29: Setup

    Mode switch (1) With the mode switch (max./min.) you can change the switching status of the relay. You can set the required mode according to the "Function table" (max. - maximum detection or overflow protection, min. - minimum detection or dry run protection). VEGAMIP R61 • Receiving unit...

  • Page 30: Adjustment

    Relay (yellow) Mode max. Overflow protec- tion (6) (7) Relay energized Mode max. Overflow protec- tion (6) (7) Relay deener- gized Mode min. Dry run protection (6) (7) Relay energized Mode min. Dry run protection (6) (7) Relay deener- gized VEGAMIP R61 • Receiving unit...
  • Page 31 "-->" key makes the sensor less sensitive. Press the respective key until the indication is within the LED indica- tion strip. This means one or two LEDs on the LED indication strip will light up. VEGAMIP R61 • Receiving unit...
  • Page 32 The indication of the LED indicating strip does not change, but the instrument will become a little less sensitive with each pressing of the key. VEGAMIP R61 • Receiving unit...
  • Page 33 Fig. 42: LED indicating strip - Setting for products with weak signal damping Switching delay You can adjust the switching delay with the help of the LED indicating strip. Push the two keys (7) and (8) simultaneously for approximately 2 s until the LED indication flashes. VEGAMIP R61 • Receiving unit...
  • Page 34 10 s. Simulation If possible, simulate a filling between the emitting and receiving units with your hand or a metal sheet and check if the switching point is adjusted correctly. If the control lamp changes its switching status, the switching function is correct. VEGAMIP R61 • Receiving unit...

  • Page 35: Maintenance And Fault Rectification

    Instrument switches de- Check switching delay Adjust switching delay correctly layed Instrument switches fre- Wave movements in the Adjust or increase switching delay quently with certain levels vessel Effects through interfering Adjust the instrument to less sensitive reflections VEGAMIP R61 • Receiving unit...

  • Page 36: Exchanging The Electronics

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.

  • Page 37: Dismount

    Pass the instrument directly on to a spe- cialised recycling company and do not use the municipal collecting points. These may be used only for privately used products according to the WEEE directive. VEGAMIP R61 • Receiving unit...

  • Page 38: Supplement

    Ʋ Seal between housing and housing lid Silicone Ʋ Ground terminal 316L Ʋ Cable gland PA, stainless steel, brass Ʋ Sealing, cable gland Ʋ Blind plug, cable gland Ʋ Mounting adapter (option) 316L Sensor length See chapter "Dimensions" VEGAMIP R61 • Receiving unit...
  • Page 39 The contact is then no longer suitable for switching low-level signal circuits. Contact material (relay contacts) AgNi (Au plated) or AgSnO (Au plated) Modes (switchable) Ʋ max. Max. detection or overflow/overfill protection Ʋ min. Min. detection or dry run protection Outside the specified beam angle, the energy of the radar signal has a level of -3 dB (50 %). VEGAMIP R61 • Receiving unit...
  • Page 40 Ʋ VEGAMIP 61 with mounting adapter -40 … +250 °C (-40 … +482 °F) "High temperature" 150 mm (optional) Ʋ VEGAMIP 61 with mounting adapter -40 … +450 °C (-40 … +842 °F) "High temperature" 300 mm (optional) Note max. pressure of the process fitting. VEGAMIP R61 • Receiving unit...

  • Page 41: Dimensions

    Instruments with approvals can have different technical specifications depending on the version. For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under www.vega.com, "Instrument search (serial number)" as well as in the download area. Dimensions...
  • Page 42 SW 60 mm (1.42") 1½ NPT G1½ A Fig. 45: VEGAMIP 61, internal horn antenna (threaded version) Internal horn antenna with PTFE cover, threaded version G1½ Internal horn antenna with PTFE cover, threaded version 1½ NPT VEGAMIP R61 • Receiving unit...
  • Page 43 Plastic encapsulated antenna with PP cover Mounting strap Adapter flange VEGAMIP 61, horn antenna 1½" ø40 2" ø48 SW 46 mm inch (1.81") 3.94" ø1.58" 1½" 4.72" ø1.89" 2" G1½A / 1½ NPT Fig. 47: VEGAMIP 61, horn antenna/316L VEGAMIP R61 • Receiving unit...
  • Page 44 150 mm (5.9 in), -40 … +250 °C (-40 … +482 °F) 300 mm (11.8 in), -40 … +450 °C (-40 … +842 °F) Extension length 40, 60, 80 or 100 mm (1.57, 2.36, 3.15, 3.94 in) VEGAMIP R61 • Receiving unit...
