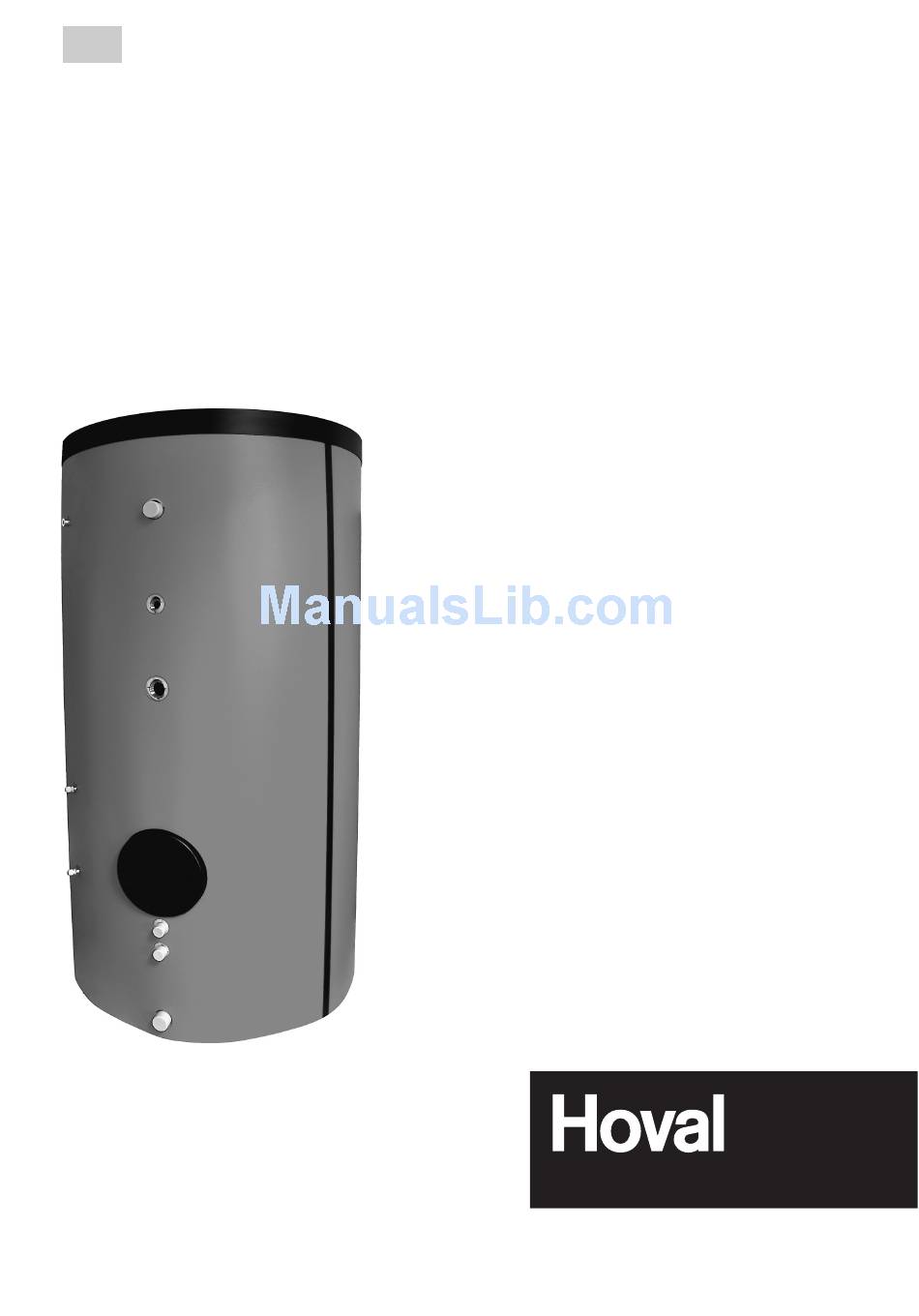

EN
Technical information
Installation instructions

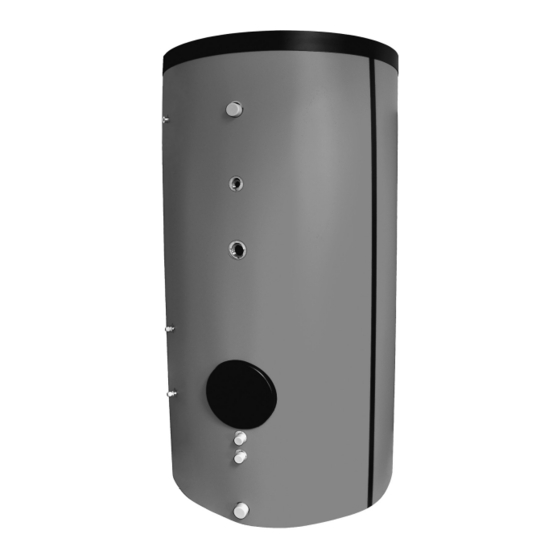

Calorifier
CombiVal CR
CombiVal CSR (300-2000)
MultiVal
CRR (300-2000)
MultiVal
CSRR (540-2000)
(200-2000)
Hoval products must be installed and commis-
sioned only by appropriately qualifi ed experts.
These instructions are intended exclusively for
the specialist. Electrical installations may only
be carried out by a qualifi ed electrician.
4 210 803 / 00 - 09/11
Subject to modifi cations
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hoval CombiVal CR (300)
Summary of Contents for Hoval CombiVal CR (300)
-
Page 1: Technical Information
MultiVal CRR (300-2000) MultiVal CSRR (540-2000) Hoval products must be installed and commis- sioned only by appropriately qualifi ed experts. These instructions are intended exclusively for the specialist. Electrical installations may only be carried out by a qualifi ed electrician. -
Page 2: Table Of Contents
Contents 4 210 803 / 00 Important Notes on Installation ..................2 Technical Data ........................3 Calorifier ..............................3 Hot water output at heating flow 80 °C ....................5 2.2.1 CombiVal CR (200-2000) .......................... 5 2.2.2 CombiVal CSR (300-2000) ........................6 2.2.3 MultiVal CRR (300-2000) .......................... -
Page 3: Technical Data
Technical Data 4 210 803 / 00 Technical Data Calorifier - Calorifier (with integrated heat exchanger) made of stainless steel Duplex - With flange for cleaning - Heat exchanger design varies depending on its type: • CombiVal CR (200-1000): with integrated smooth pipe flat battery •... - Page 4 Technical Data 4 210 803 / 00 volume stand-by losses* weight (litres) (kg) MultiVal CSRR (540) MultiVal CSRR (540) MultiVal CSRR (630) MultiVal CSRR (630) MultiVal CSRR (630) MultiVal CSRR (800) MultiVal CSRR (800) MultiVal CSRR (1000) 1000 MultiVal CSRR (1000) 1000 MultiVal CSRR (1250) 1250...
-
Page 5: Hot Water Output At Heating Flow 80 °C
Technical Data 4 210 803 / 00 Hot water output at heating flow 80 °C 2.2.1 CombiVal CR (200-2000) Hot water output CombiVal Loading pump Biral /10 min. Type mbar Type Type 45 °C 45 °C 60 °C flats CR (200) MX10 AX12 16,5... -
Page 6: Combival Csr (300-2000)
Technical Data 4 210 803 / 00 2.2.2 CombiVal CSR (300-2000) Hot water output CombiVal Loading pump Biral /10 min. Type mbar Type Type 45 °C 45 °C 60 °C flats CSR (300) MX10 AX12 1290 52,7 MX12 AX13 1790 1050 72,9 CSR (400) -
Page 7: Multival Crr (300-2000)
Technical Data 4 210 803 / 00 2.2.3 MultiVal CRR (300-2000) Hot water output MultiVal Loading pump Biral /10 min. Type mbar Type Type 45 °C 45 °C 60 °C flats CRR (300) MX10 AX12 12,8 MX12 13,6 CRR (540) MX10 AX12 24,2... -
Page 8: Hot Water Output At Heating Flow 60 °C
Technical Data 4 210 803 / 00 Hot water output at heating flow 60 °C 2.3.1 MultiVal CSRR (540-2000) Hot water output MultiVal Loading pump Biral /10 min. Type mbar Type Type 45 °C 45 °C 55 °C flats CSRR (540) AX 13 MX 12 CSRR (540) -
Page 9: Heat Exchanger
Technical Data 4 210 803 / 00 Heat exchanger for collector Pressure loss Heating surface (m surface to (m z-value * bottom bottom CombiVal CR (200) CombiVal CR (300) CombiVal CR (540) CombiVal CR (630) CombiVal CR (800) CombiVal CR (1000) CombiVal CR (1250) CombiVal CR (1500) CombiVal CR (2000) - Page 10 Technical Data 4 210 803 / 00 Operating pressure Secondary circuit (sanitary water): Operating pressure for all tanks: 6 bar Primary circuit (heat exchanger): 10 bar Max. operating temperature Calorifier: 95 °C Primary circuit: 95 °C Thermal insulation 80 mm polyester fiber non-woven (200-1000) 100 mm polypropylene (1250) Outer casing made of Polystyrol, red coloured delivery...
-
Page 11: Dimensions Combival Cr (200-2000)
Technical Data 4 210 803 / 00 Dimensions CombiVal CR (200-2000) CombiVal CR (200 - 1000) CombiVal CR (1250 - 2000) (Dimensions in mm) Smooth pipe flat tube battery Smooth pipe heat exchanger 45˚ 45° Sleeve Rp ½" for sensor, thermostat, thermometer Cold water Type (200-630), R 1"... -
Page 12: Dimensions Combival Csr (300-2000)
Technical Data 4 210 803 / 00 Dimensions CombiVal CSR (300-2000) CombiVal CSR (300-540) CombiVal CSR (800-2000) (Dimensions in mm) � � �� �� � � � � � � � � � � � � �� � �� � �... -
Page 13: Dimensions Multival Crr (300-2000)
Technical Data 4 210 803 / 00 Dimensions MultiVal CRR (300-2000) MultiVal CRR (300 – 630) MultiVal CRR (800 – 2000) (Dimensions in mm) Heating battery MultiVal CRR (800,1000): smooth pipe flat tube register at the bottom: MultiVal CRR (1250-2000): smooth pipe heat exchanger 45˚... -
Page 14: Dimensions Multival Csrr (540,630)
Technical Data 4 210 803 / 00 Dimensions MultiVal CSRR (540,630) (Dimensions in mm) 1 Cold water 1" 2 Hot water Rp 1" 3 Flow solar circuit 1" 4 Return solar circuit 1" 5 Heating flow (540, 630) 3,5/4,9 m Rp 1¼"... -
Page 15: Dimensions Multival Csrr (800,1000)
Technical Data 4 210 803 / 00 Dimensions MultiVal CSRR (800,1000) (Dimensions in mm) 1 Cold water 1½" 2 Hot water Rp 1½" 3 Flow solar circuit 1" 4 Return solar circuit 1" 5 Heating flow (800) 4,9 m Rp 1¼" (800, 1000) 7,2/10,0 m Rp 1½"... -
Page 16: Dimensions Multival Csrr (1250-2000)
Technical Data 4 210 803 / 00 2.10 Dimensions MultiVal CSRR (1250-2000) (Dimensions in mm) 1 Cold water 1½" 2 Hot water Rp 1½" 3 Flow solar circuit 1" 4 Return solar circuit 1" 5 Heating flow Rp 1½" 6 Heating return Rp 1½"...
