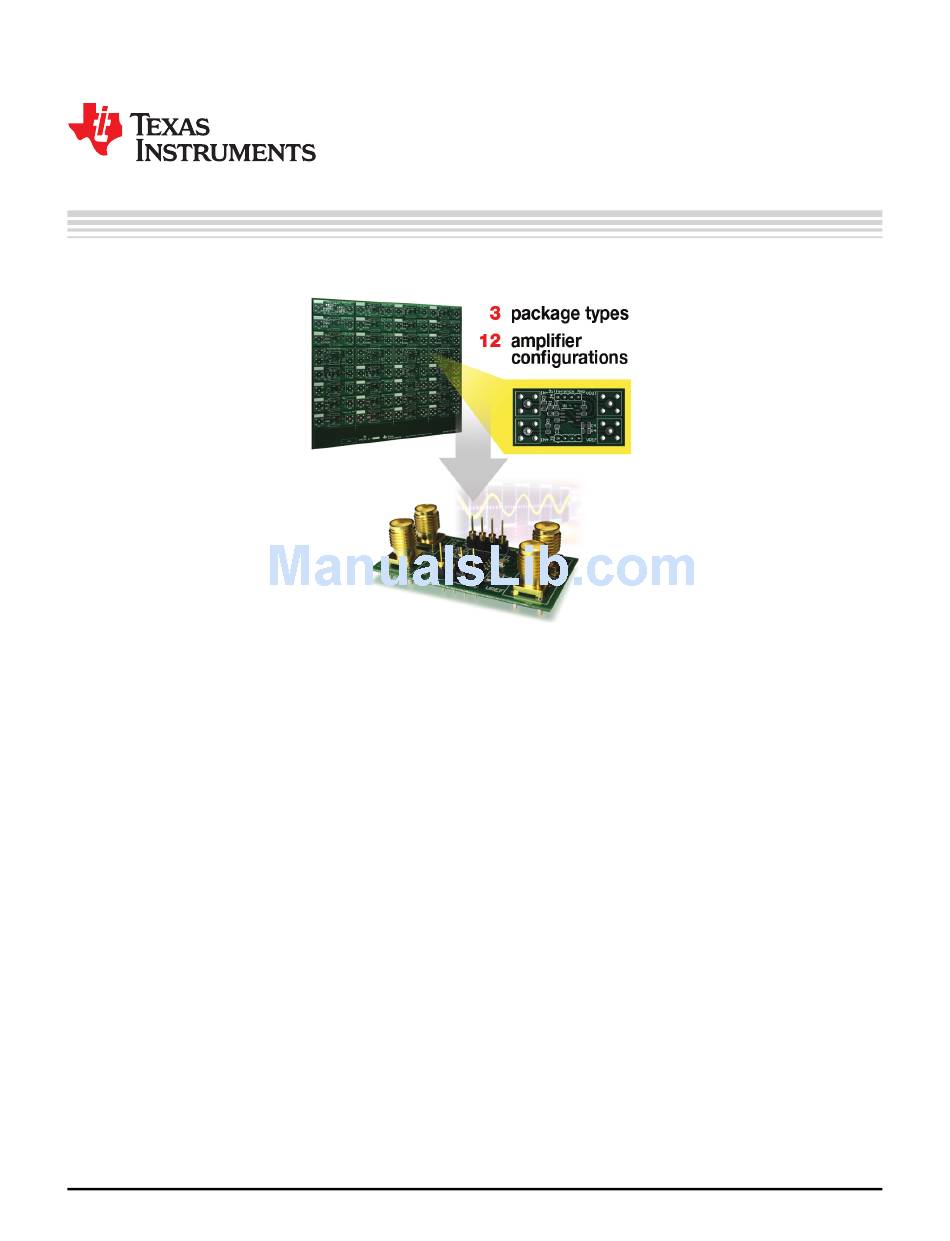

This user's guide contains support documentation for the DIYAMP-SOT23 evaluation module (EVM).
Included is a description of how to set up and configure the EVM, printed circuit board (PCB) layout,
schematic, and bill of materials (BOM) of the DIYAMP-SOT23-EVM.
...................................................................................................................
1
2
3
.................................................................................................................
4
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
SBOU191 - July 2017
Submit Documentation Feedback
..............................................................................................................
................................................................................................
...........................................................................................
List of Figures
.........................................................................................
.....................................................................................
..............................................................................................
.....................................................................................
..................................................................................
..............................................................................
..............................................................................
Copyright © 2017, Texas Instruments Incorporated
DIYAMP-SOT23-EVM
Contents
...................................................
.............................................................
...................................................................
..........................................................
..................................................
.....................................................................
.........................................................................
User's Guide
SBOU191 - July 2017
3
4
7
27
30
4
5
5
5
6
6
6
7
7
8
8
9
9
10
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments DIYAMP-SOT23-EVM
Summary of Contents for Texas Instruments DIYAMP-SOT23-EVM
-
Page 1: Table Of Contents
This user's guide contains support documentation for the DIYAMP-SOT23 evaluation module (EVM). Included is a description of how to set up and configure the EVM, printed circuit board (PCB) layout, schematic, and bill of materials (BOM) of the DIYAMP-SOT23-EVM. Contents ........................ - Page 2 ................Sallen-Key Filter Component Type Selection ......................Bill of Materials Trademarks FilterPro, TINA-TI are trademarks of Texas Instruments. All other trademarks are the property of their respective owners. DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 3: Introduction
Introduction The DIYAMP-SOT23-EVM is an EVM developed to give users the ability to easily evaluate their design concepts. This break-apart EVM has several popular op-amp configurations including: amplifiers, filters, and stability compensation configurations for both single and dual supply. The EVM is designed for 0805 and 0603 package size surface mount components enabling easy prototyping. -
Page 4: Hardware Setup
Hardware Setup www.ti.com Hardware Setup Assembly of the DIYAMP-SOT23-EVM involves identifying and breaking out the desired circuit configuration from the EVM, soldering components, header pins, and inputs and outputs connections. This section presents the details of these procedures. EVM Circuit Locations... -
Page 5: Detach Desired Circuit Configuration
Step 4. Use long-nose pliers to break header strips, provided in the EVM kit, into 4-position lengths. Figure 4. Terminal Strip (TS-132-G-AA) Broken Into 4-Pin Lengths SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 6: 4-Pin Length Terminal Strips Inserted In Dip Socket
Figure 6. Detached Board Configuration Position Over Terminal Pins Step 7. Attach SMA connectors, test points, or wires to the input and output of the separated PCB. Figure 7. Fully-Assembled Circuit Configuration From DIYAMP-SOT23-EVM DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright ©... -
Page 7: Schematic And Pcb Layout
The MFB topology (sometimes called infinite gain or Rauch) is often preferred, due to low sensitivity to component variations. The MFB topology creates an inverting second-order stage. This inversion may, or may not, be a concern in the filter application. SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 8: Single-Supply, Mfb Filter Top Layer
Figure 10. Single-Supply, MFB Filter Top Layer The PCB layout of the bottom layer of the single-supply, MFB filter configuration is displayed in Figure Figure 11. Single-Supply, MFB Filter Bottom Layer DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 9: Single-Supply, Sallen-Key Filter Schematic
The PCB layout of the top layer of the single-supply, Sallen-Key filter circuit configuration is displayed in Figure Figure 13. Single-Supply, Sallen-Key Filter Top Layer SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 10: Single-Supply, Sallen-Key Filter Bottom Layer
There are multiple ways to configure the single-supply, non-inverting amplifier. The following cases show three primary use case configurations for this circuit. DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 11 The op amp is typically configured as a unity-gain buffer. Step 1. Choose a value for the resistor installed in place of C4 Step 2. Compute R3 æ ö ´ ç ÷ è ø offset SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 12: Single-Supply, Non-Inverting Amplifier Top Layer
Figure 17. Single-Supply, Non-Inverting Amplifier Bottom Layer Single-Supply, Inverting Amplifier Figure 18 shows the schematic for the single-supply, inverting amplifier circuit configuration. Figure 18. Single-Supply, Inverting Amplifier Schematic DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 13: Single-Supply, Inverting Amplifier Top Layer
(14) The PCB layout of the top layer of the single-supply, inverting amplifier circuit configuration is displayed in Figure Figure 19. Single-Supply, Inverting Amplifier Top Layer SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 14: Single-Supply, Inverting Amplifier Bottom Layer
÷ ç ÷ ç ÷ (15) è ø è ø è ø è ø If R and R Equation 15 can be simplified to Equation (16) DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 15: Difference Amplifier Top Layer
Figure 22. Difference Amplifier Top Layer The PCB layout of the bottom layer of the difference amplifier circuit configuration is displayed in Figure Figure 23. Difference Amplifier Bottom Layer SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 16: Dual-Supply, Multiple Feedback Filter Schematic
The PCB layout of the top layer of the dual-supply, multiple feedback filter circuit configuration is displayed Figure Figure 25. Dual-Supply, Multiple Feedback Filter Top Layer DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 17: Dual-Supply, Multiple Feedback Bottom Layer
For this EVM, the Sallen-key filter can be configured for unity-gain by populating R1 with a short and leaving R2 open. Gain can be added by adding the appropriate resistors to R2 and R1 as explained in FilterPro. SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 18: Dual-Supply, Sallen-Key Top Layer
Figure 28. Dual-Supply, Sallen-Key Top Layer The PCB layout of the bottom layer of the dual-supply, Sallen-Key filter circuit configuration is displayed in Figure Figure 29. Dual-Supply, Sallen-Key Bottom Layer DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 19: Inverting Comparator Schematic
(20) è ø The PCB layout of the top layer of the inverting comparator circuit configuration is displayed in Figure Figure 31. Inverting Comparator Top Layer SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 20: Inverting Comparator Bottom Layer
The input signal must exceed the upper threshold (VH) to transition high or below the lower threshold (VL) to transition low. Equation 22 Equation 23 will calculate the value of R1 and R2 for the two desired thresholds. (22) (23) DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 21: Non-Inverting Comparator Top Layer
The dc gain of the R with dual-feedback circuit configuration can be calculated using Equation æ ö æ ö ç ÷ ç ÷ (24) è ø è ø SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 22: Example Of F Zero , Where A
This method generally results in a slower settling time than the R circuit as well. DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 23: Dual-Feedback Bottom Layer
Figure 39. R Dual-Feedback Bottom Layer 3.12 Dual-Supply, Non-Inverting Amplifier Figure 40 shows the schematic for the dual-supply, non-inverting amplifier circuit configuration. Figure 40. Dual-Supply, Non-Inverting Amplifier Schematic SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 24: Dual-Supply, Non-Inverting Amplifier Top Layer
Figure 41. Dual-Supply, Non-Inverting Amplifier Top Layer The PCB layout of the bottom layer of the dual-supply, non-inverting amplifier circuit configuration is displayed in Figure Figure 42. Dual-Supply, Non-Inverting Amplifier Bottom Layer DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 25: Dual-Supply, Inverting Amplifier Schematic
Figure (28) Capacitor C3 provides the option to filter the output. The cutoff frequency of the filter can be calculated using Equation p ´ ´ (29) SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 26: Dual-Supply, Inverting Amplifier Top Layer
Figure 44. Dual-Supply, Inverting Amplifier Top Layer The PCB layout of the bottom layer of the dual-supply, inverting amplifier circuit configuration is displayed Figure Figure 45. Dual-Supply, Inverting Amplifier Bottom Layer DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 27: Connections
SMA horizontal connectors attached to the input signal terminal. Figure 47. SMA Horizontal Connectors Figure 48 shows a wire attached to the input and output terminal. Figure 48. Wire Connections SBOU191 – July 2017 DIYAMP-SOT23-EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 28: Through-Hole Test Points
IN+ and IN- for the non-inverting and inverting inputs, respectively. The output connection is labeled VOUT. An example highlighting the input and output is shown in Figure Figure 50. Input and Output Pins in Terminal Area DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 29: Wire Alternative For Terminal Area
Figure 51. Wire Alternative for Terminal Area Enable and Disable Feature The DIYAMP-SOT23-EVM provides a means to test the shutdown feature for op-amp devices equipped with a shutdown pin. The access to the shutdown pin, labeled SD, is located on the terminal area. -
Page 30: Bill Of Materials And Reference
2. TI Precision Labs Training https://training.ti.com/ti-precision-labs-op-amps 3. Analysis of the Sallen-Key Architecture (SLOA024) 4. AC Coupled, Single-Supply, Inverting and Non-inverting Amplifier Reference Design (TIDU871) FilterPro Design Tool DIYAMP-SOT23-EVM SBOU191 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 31 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
