A
F
DDITIONAL
EATURES
6
This chapter describes the additional features available to
you with your Home Wireless Gateway, which include
viewing the Status page, assigning client privileges, and
using the system tools.
Status
Selecting Status from the main menu generates the Status
page (Figure 13) in your Web browser window. On this
page, a graphical representation of your home network
and Internet connection is provided. Flashing arrows signify
that the connection is operating. Broken arrows (such as
the "Wireless" arrows in Figure 13) signify that a
connection is not being used or is not functioning correctly.

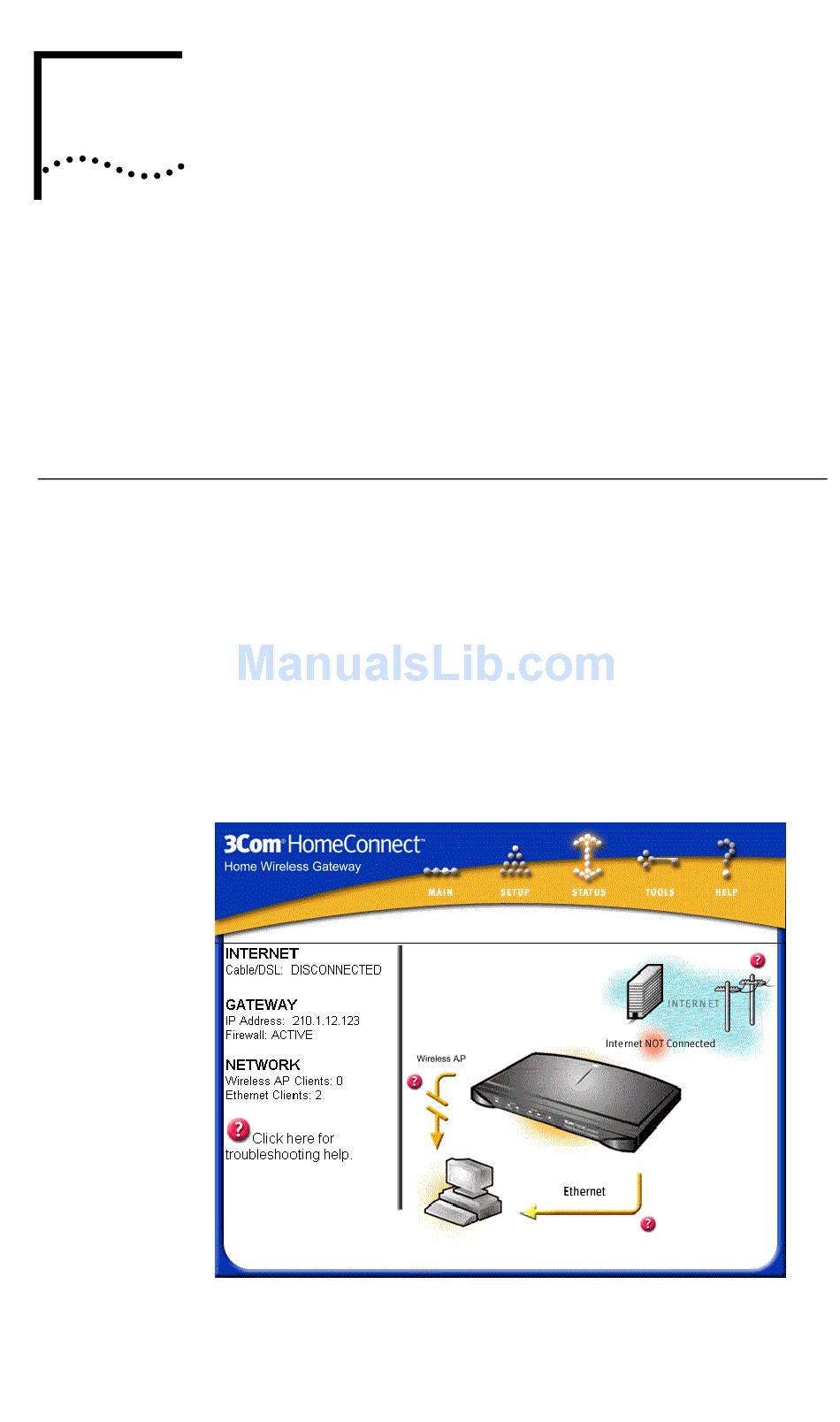

Figure 13 Status Page
On the left side of the page is textual information
describing your network, gateway, and Internet
connections.
