7 Enter the networking setup information you acquired
from your ISP.
When the Cable/DSL Setup | Standard page appears
(Figure 14), you will be asked to enter the information
you received from your ISP. If you have the information
and your ISP has given you an IP address, select Yes after
the first question. Enter the IP address, subnet mask
address, and ISP gateway address in the appropriate text
boxes. Each address will be made up of 4 groups of
numbers, separated by periods. Enter each number
group in a separate text box. For instance, if your IP
address is 222.11.123.100, enter 222 in the first IP
address text box, 11 in the second, and so on.
If your ISP has given you a DNS address, select Yes under
the second question, and fill in those addresses. When
you're finished, click Enter.

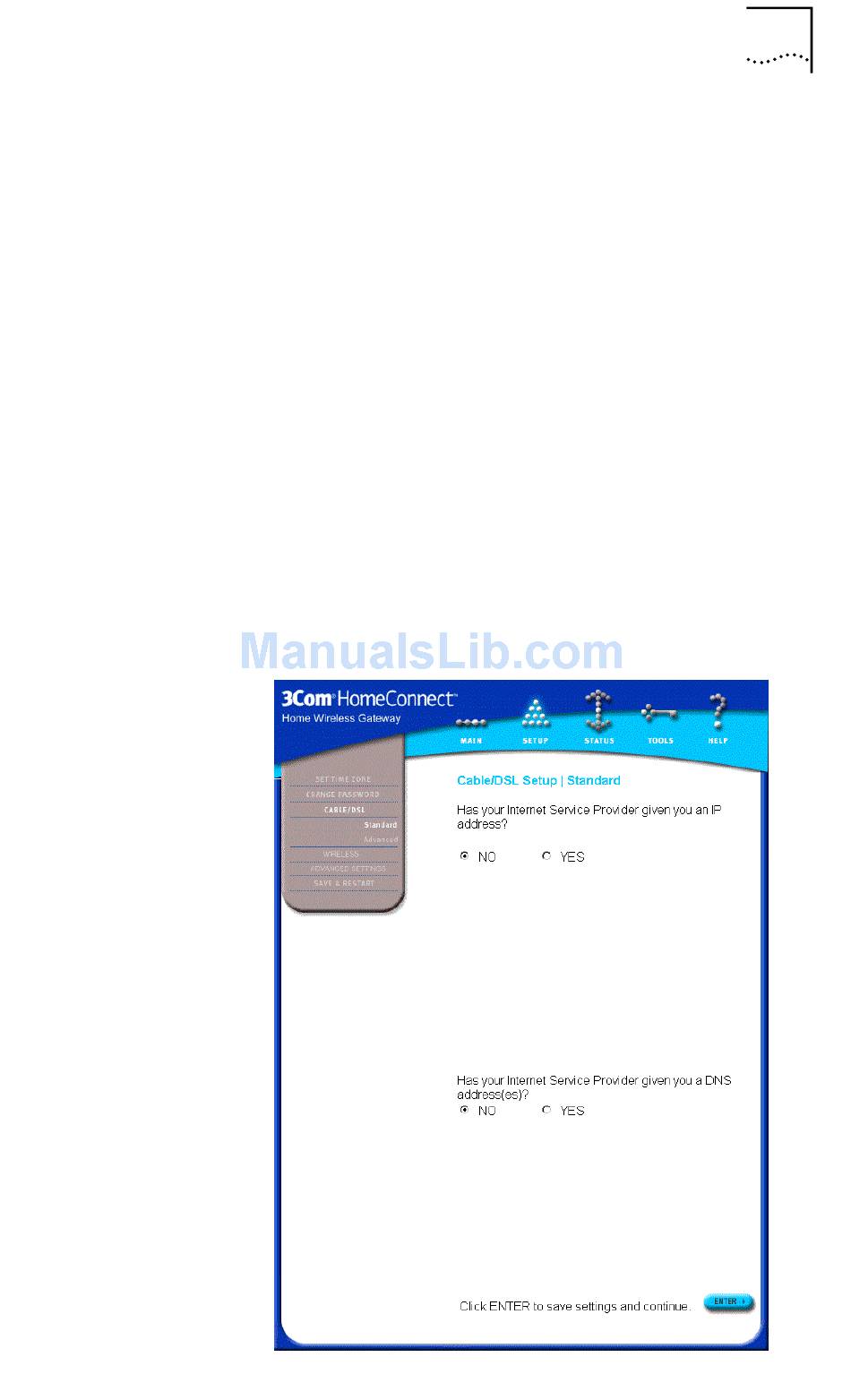

Figure 12 Cable/DSL Setup | Standard Page
Internet Connection Settings 23
