C
8
HAPTER
Power
The Power indicator light informs you when the gateway is
on or off. If this light is illuminated, the gateway is on; if it
is not illuminated, the gateway is off. During firmware
upgrades and resets, this light will blink yellow (see
"Update Firmware" on page 28).
WAN
This light indicates the state of your Internet connection.
When on, the WAN light indicates that the gateway is
connected to the Internet through your external cable or
DSL modem.
Wireless LAN
This light displays the state of your wireless connection. If
the light is blinking rapidly, data is being transmitted to an
associated wireless client. If the light is blinking slowly, no
wireless client is associated with the gateway.
Ethernet LAN
These three lights (one per port) display the state of your
Ethernet connections. If the light is on, that port is
connected to your Ethernet network. If the light is off, the
port is not connected to your Ethernet network.
Rear Panel
The rear panel (Figure 6) of the gateway contains four
ports, a reset switch, and a power adapter socket.

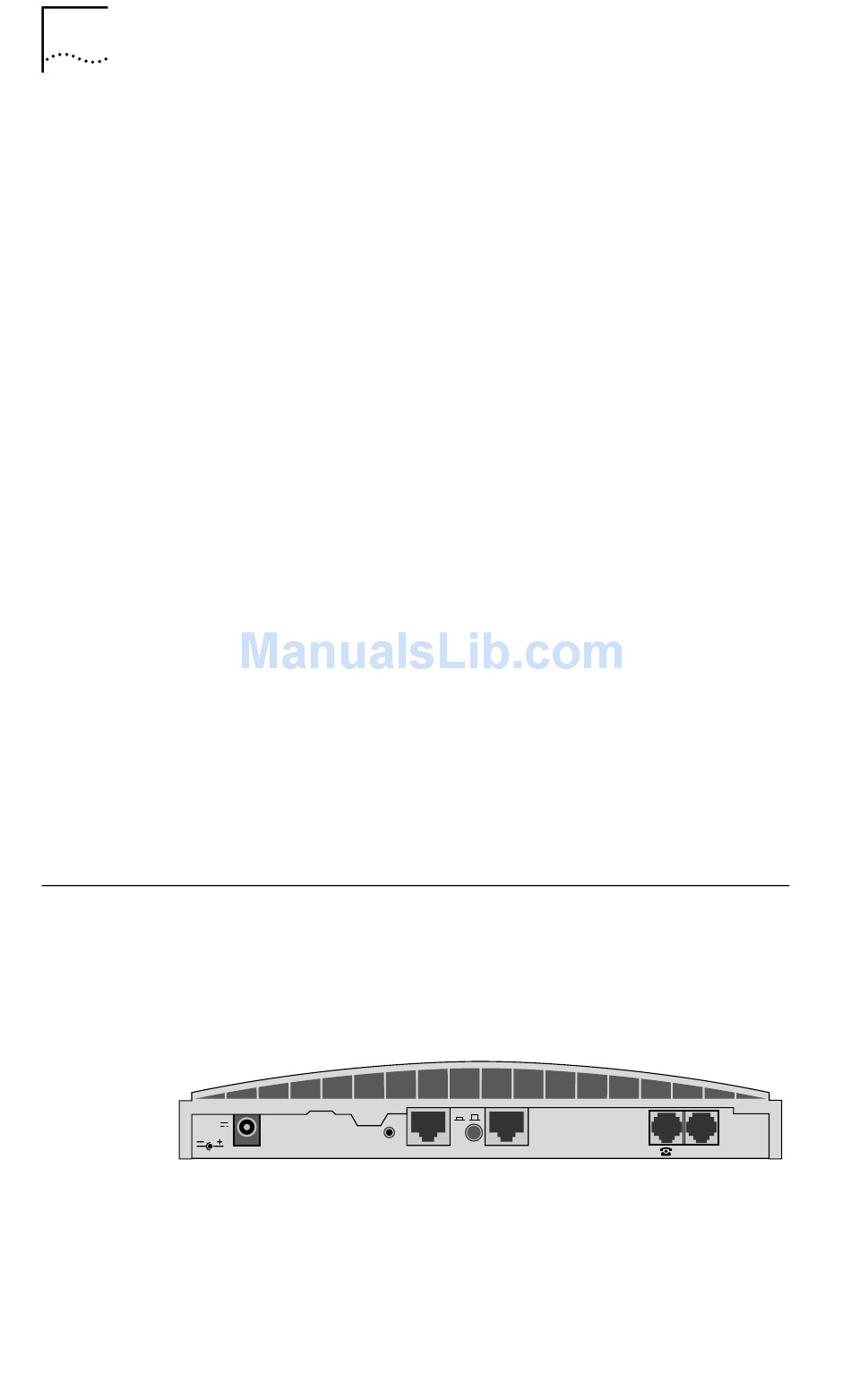

Figure 6 Home Network Gateway - Rear Panel
10 –18 V
0.8A MAX
Power Adapter Socket
The power adapter socket accepts the power adapter
connector. To power up the gateway, simply insert the
connector into the socket, and then plug the other end
into a standard electrical wall socket.
2: H
W
G
OME
IRELESS
Power
ATEWAY
Reset
Cable/DSL Uplink/Normal
Ethernet
Phoneline/56K
