2040 OSD Menu Manual
CCTV Cameras
Menu Functions:
Up
L
Menu
Down
Menu: Menu options / Return to previous menu
Up / Down: Up key or Down key, is option keys vertically for
menu.
L / R: Left or Right key, is option keys horizontally or revising
specification.
" " is Return to previous menu, for sub-menu setting.
Main menu:
1. Lens： Manual lens
2. Exposure:
3. BLC mode: OFF
4. White Balance: Auto white balance
5. Day & Night switch: Auto
6. Function:
http://www.securitycamera2000.com
R
01
Advertisement

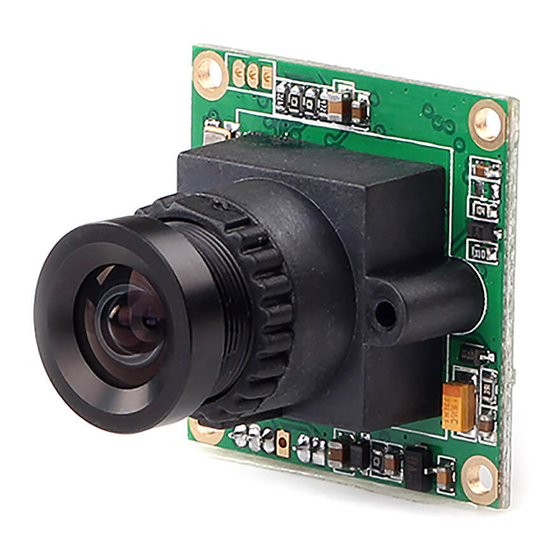

Related Manuals for RunCam PZ0420M
Summary of Contents for RunCam PZ0420M
- Page 1 2040 OSD Menu Manual CCTV Cameras http://www.securitycamera2000.com Menu Functions: Menu Down Menu: Menu options / Return to previous menu Up / Down: Up key or Down key, is option keys vertically for menu. L / R: Left or Right key, is option keys horizontally or revising specification.
- Page 2 7. Image adjust: 8. White dot repair 9. Language: Chinese 10. Reset: 11. Return Main Menu SONY 600TVL 1. Lens type Manual 2. Exposure 3. Back light mode 4. White Balance Auto white balance 5. Day/ Night Sift Auto Shift 6.
- Page 3 Electronic shutter: Auto Image brightness: 0-----255 Auto Gain Control: High D-WDR: OFF Return: return Exposure Electric Shutter Auto Image Brightness 0------255 High D-WDR Back Back (1)>Electric shutter Electric shutter is used to set camera’s shutter speed, that is the number of the video output for each second (e.g. 1/50 means this camera can record 25 pcs pictures in 1 second).
- Page 4 speed slower, 1/250 is recommended. (2) > Image brightness To set up the image overall brightness, you can adjust from 0~255 according to user’s light environment. Default value is 50. Remark: When ‘DC Lens’ is selected, this function is unavailable as this is already been set in DC lens menu.
- Page 5 (5) > Back When finished setting, press ‘UP’ ‘Down’ button to ‘Back’, and use ‘L’ ‘R’ button to select ‘Back’(means back to previous menu) or ‘End’ (means quit the setting), and press ‘Enter’. C. Back Light Mode 1. Back light compensation Press ‘L’...
- Page 6 Press ‘L’ ‘R’ to adjust back light compensation area from left to right, from 0-15, default value: 4. (5) Set Width Press ‘L’ ‘R’ to set back light compensation area’s width, base on the left, to set from 0-15, default value: 3 (6) L/R adjust Press ‘L’...
-
Page 7: White Balance
will turn on the anti-exposure function to make clear image. From 0-55, default value; 200 Remark: Please set this value according to the actual light condition, we suggest not to turn on this function when the area is without strong light condition. (2) Mode Can select All Day / At Night (3) Back... - Page 8 in day or night scene. 4 Modes: Color mode, B&W mode, External Shift, Auto Mode. (1) Auto Mode Press ‘L’ ‘R’ key in ‘Day/ Night Shift’ menu to select ‘Auto Mode’ and press ‘Enter’ to enter to ‘Auto Mode’ sub-menu. Auto Mode Day to Night Setting 0-255...
- Page 9 To set the start position when shifting, value: 0-255. Default value: (c) Night to Day setting To set the end position when shifting, value 0-255. Default value: Remark: To set a ‘Night to Day’ and ‘Day to Night’ value is to avoid the camera shift constantly to make it unusable.
- Page 10 B&W mode only. Day/Night Shift B&W Mode Color synchronized Signal IR Image Optimize IR Brightness High Back Back A. Color synchronized Signal Set from Off/ On. B. IR Image Optimize IR Image Optimize IR Image Optimize program 0-255 Height 0-15 Width 0-15 L/R Adjust...
- Page 11 Remark：This function is reserved and not available right now. F. Function Function 关 1．Camera title 2．Motion detection 3．Private area Shading 4．Car reverse line 6．Communication 8．Back Back (1) Camera Title Press ‘L’ ‘R’ key in ‘Function Camera title’ menu to select ‘On’, and press ‘enter’...
- Page 12 right’ to move title’s position, press ‘Enter’ to back to main menu. (e) > ‘Quit’ is to end title setting and back to previous menu (2) Motion Detection Press ‘L’ ‘R’ key in ‘Motion Detection’ menu to select ‘On’, now the motion detection function is on. Then press ‘Enter’ key to Motion Detection’s sub menu.
- Page 13 (D)> Width Press ‘L’ ‘R’ to set the area’s width, base on the left you can set the right’s value from 0-100. Default value: 4 (E)> L& R Adjust Press ‘L’ ‘R’ to set the area’s left and right position, from 0-15. Default value: 1 (F)>...
- Page 14 shading’ sub-menu. Private Shielding Area Area 1 Display Area Height 0-255 Width 0-255 L&R Adjust 0-255 UP& Down Adjust 0-255 Area color 0-15 Back Back (A)> Area Select private shading area and set in this area, all 8 areas settable. (B)>...
- Page 15 (F)> UP & Down Adjust Press ‘L’ ‘R’ to set the area’s up and down position, from 0-255. (G)> Area Color To set shading area’s color. Value: 0-15 (H)> Back When finished setting, press ‘up’ ‘down’ key to ‘Back’, and use ‘L’...
- Page 16 Communication Camera ID 0-255 Baud Rate 2400 Protocal PELCO-D Display ID ID Position Back Back (a)> Camera ID To set camera’s address ID to distinguish it from other cameras. This ID is also the exclusive ID for controlling this camera. Value: 0-255 (b)>...
-
Page 17: Image Adjustment
‘End’ (means quit the menu) and press ‘Enter’ to back. (6)> Synchronized Mode External Synchronize, Internal Synchronized option, by default: Internal Synchronized. Remark: This camera is now only internal synchronized, external synchronize is reserved and not available now. (7)> Back When finished setting, press ‘up’... - Page 18 (b) 2DNR, ON/OFF. When this is on, noise could be reduce in low illumination. (C) Mirror. Press ‘L’ ‘R’ to turn on this function. The picture will go horizontal mirror. (d) Font Color Font Color Font Color 0-15 Camera ID and Title Color 0-15 Back Back...
- Page 19 Use when there is bad pixel in the CCD, turn off IRIS first and press ‘Enter’ key to repair white dot. The camera will repair itself, after it is done, press ‘Up’ ‘Down’ key to back to previous menu. I. Language Set menu language.
- Page 20 When finished setting, press ‘up’ ‘down’ key to ‘Back’, and use ‘L’ ‘R’ key to select ‘Back’ (means back to previous menu) or ‘End’ (means quit the menu) and press ‘Enter’ to back. K. Quit When finished setting, press ‘up’ ‘down’ key to ‘Back’, and use ‘L’...
