Summary of Contents for RunCam Eagle

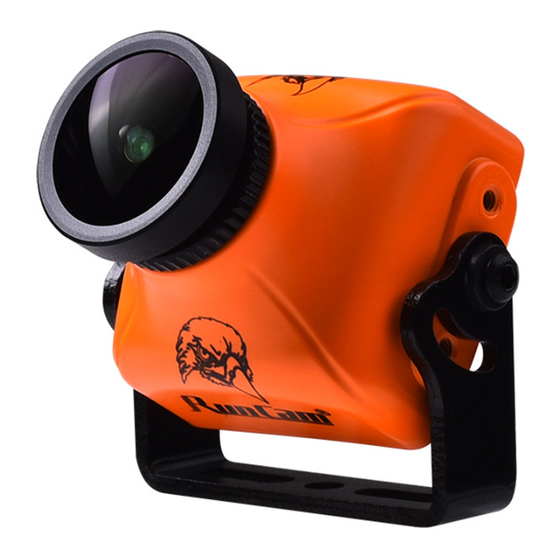

- Page 1 RunCam Eagle 800TVL Global WDR 5-17 VDC FPV Camera 26mm 12mm 29mm 19mm 26mm 28mm 30mm...
- Page 2 Connection For OSD setting ① Monitor Power in 5D-OSD Video out...
- Page 3 Connection For FPV ② * Unplug the 5D-OSD menu cable after OSD setting. Transmitter Power in Video Power 3 mm Screw thread：3 mm maximum...
-
Page 4: Osd Menu
OSD Menu MAINMENU IMAGE IMAGE 3D-NR DAY &NIGHT AUTO IMAGE ENHANCE VIDEO STANDARD PAL-50HZ ENGLISH MIRROR LANGUAGE BRIGHTNESS LOAD DEFAULT ZOOM IN SOFT VERSION ********** RETURN SAVE &EXIT EXIT · DAY&NIGHT (Auto/External/B&W/Color) · WDR (ON/OFF) · VIDEO STANDARD (PAL-50Hz/NTSC-60Hz) · MIRROR (OFF/ON) ·... - Page 5 OSD Menu 3D-NR IMAGE ENHANCE AUTO NR-MODE SHARPNESS RETURN SATURATION RETURN · NR-MODE (AUTO/MANUAL: 0-15) · SHARPNESS (AUTO/MANUAL: 0-15) · SATURATION (AUTO/MANUAL: 0-15)
- Page 6 Model RunCam Eagle Image Sensor 1/1.8" CMOS Sensor Horizontal Resolution 800TVL Lens FOV 16:9 Version 130° / 4:3 Version 140° Signal System NTSC/PAL Switchable on OSD menu Synchronization Internal OSD Set S/N Ratio >50dB Electronic Shutter Speed Auto Min. Illumination 0.01Lux/1.2F...
