Quick Links
1
Quick Guide
Battery Cover
Switch Button
Installation Method 1
Installation Method 2
2
Camera Rotation
3
Camera Operations
Function
Power On/Off
Start/Stop
Recording
Turn on/Turn
off WiFi
Low Battery
Reminder
Charging status

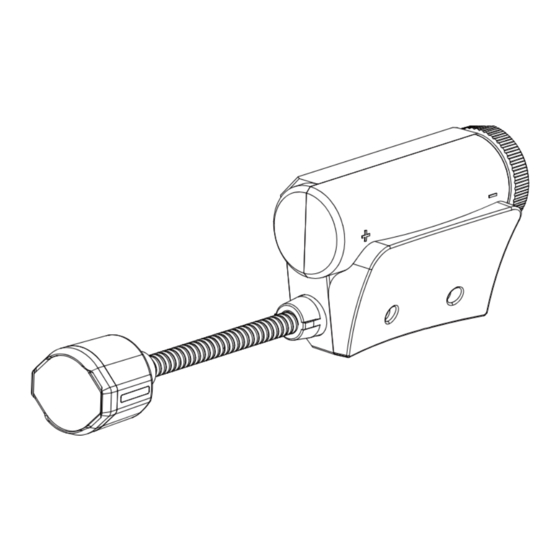

HelmetCam
User Manual
90° Rotating
Handle
Lock Hole (M2.5)
Can be twisted and
rotated 90 degrees.
Operation
-Push up the switch button to power on, red light
stays on, camera vibrates.
-Push down the switch button to power off, camera
vibrates, all lights turn off.
-Push up the switch button, camera starts recording
automatically after power on, red light flashes slowly,
camera vibrates.
-Push down the DIP switch button, camera vibrates,
stops recording and powers off.
-In power-on state, short press the WiFi button to
enable WiFi, camera vibrates, red light stays on,
blue light flashes slowly.
-In WiFi state, short press the WiFi button to disable
WiFi, camera vibrates, red light stays on.
-When the battery is low, the camera vibrates every 5
seconds, 3 times in total, and automatically powers
off after 5 minutes.
-When device is charging, the light will be solid green.
-When device is fully charged, the light will be off.
WiFi Button
Flexible Hose
Lens Protective
LED Light
Red: Booting / Recording,
Blue: WIFI / Firmware Update
Velcro Bracket
Slider Bracket
Advertisement
Related Manuals for RunCam HelmetCam
Summary of Contents for RunCam HelmetCam
- Page 1 HelmetCam User Manual Quick Guide Battery Cover WiFi Button Flexible Hose Lens Protective Switch Button LED Light 90° Rotating Red: Booting / Recording, Handle Blue: WIFI / Firmware Update Installation Method 1 Velcro Bracket Installation Method 2 Lock Hole (M2.5)
- Page 2 2:Go to the WLAN/Wi-Fi setting on mobile phone and find a device HelmetCam_XXXXXXX to connect, typing in the password 1234567890 3:Go to RunCam App, select HelmetCam to connect. Preview and configuration will be available after a successful connection. Firmware update To ensure the best performance of the camera, please use it with the latest firmware.
- Page 3 HelmetCam User Manual...
Need help?
Do you have a question about the HelmetCam and is the answer not in the manual?
Questions and answers

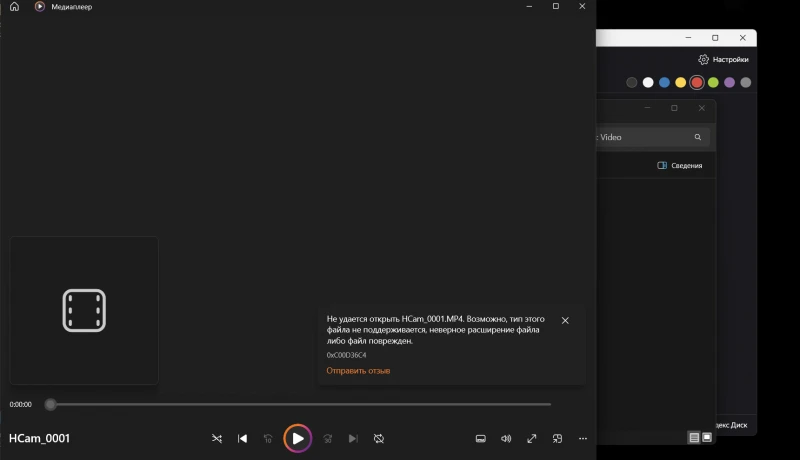

Здравствуйте! Приобрел камеру Helmet Camera RunCam. Есть проблема все записи не открываются на компьютере, не воспроизводятся. Ошибка 0хС00D36C4
Recordings from the RunCam Helmet Camera may not open on the computer and show error 0xC00D36C4 if the microSD card is not inserted properly, is corrupted, or not formatted correctly. To fix this, ensure a microSD card is inserted, try changing the USB cable or USB port, and format the microSD card via a computer or the RunCam App.
This answer is automatically generated
Привет, камера записывает только по 3 секунды, почему?
