Changes or modifications not expressly approved by the Warning manufacturer responsible for compliance could void the user's authority to operate the equipment ENERGY STAR As an ENERGY STAR partner, Hansol Electronics Inc. has determined that this product meets energy Star guidelines for energy efficiency.
Good Posture Guide Parts Place the monitor to face the user and then adjust the monitor angle. Take a break (for about 10 minutes) at every hour during the work with monitor. Refer to the following figure to take the correct posture. Look down the monitor below the horizon.
Connection to Signal Source The range of control Angle How to Adjust the Stand Basic Connection Port for AC power cable Forward 4 Port for Audio cable from audio source. Port for Head Phone or External Speaker Port for signal cable from signal source. <...
Installing Monitor Driver Run (Click) "Install" at Floppy Diskette driver and select the model name to set the optimum display in Window 95, 98 or 2000, XP. Use the Driver provided. Click 'Monitor'. Click 'Next>'. Click 'Advanced..'. Click 'Change..'. Automatic Installation 1.

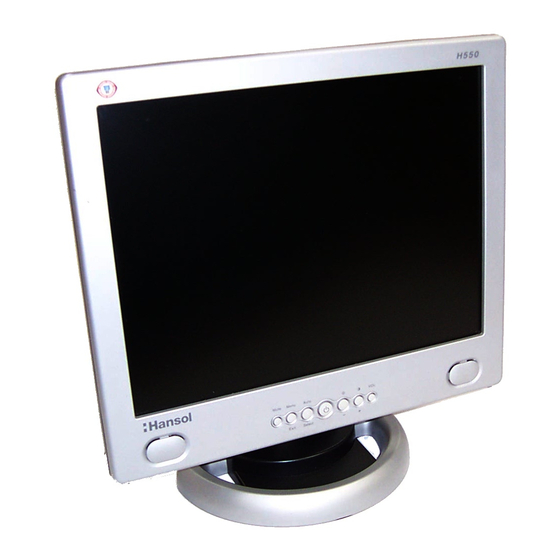

Name and Function of Front Front panel Functions Power button Power button is located in the lower center of the Front Bezel. You can push the button to turn on/off the power. Power Indicating LED Dark : Power off Green : Normal mode Green blinking : DPMS mode or Check Signal Cable mode.
Adjusting OSD Power Management Feature The monitor is equipped with a power saving circuit that confirms to the world-standard Display Power Manager Signalling Brightness / Contrast (DPMS) mode of Video Electronics Standard Association (VESA). The power management feature requires that the video card of the computer should support DPMS function.
Image Phase MENU SELECT SELECT 1. Press the MENU button to access main menu. 1. Press to move Phase ICON. 2. Use to move Image ICON. 2. Use SELECT button to select it. 3. Press SELECT button into the submenu. 3.
Preset Color OSD H-Position MENU SELECT 1. Use to select the Mode 1, and Mode 2. 2. Press the Menu button to return previous state. 1. Use to move OSD H-Position ICON. 2. Press SELECT button to select it. 3. Use to adjust OSD left or right.
Page 10
Special Auto-Config Information SELECT MENU SELECT MENU 1. Use to move the Information ICON. 1. Press the MENU button to access main menu. 2. Press SELECT button to select it. 2. Use to move Special ICON. 3. Press SELECT button into the submenu. You can know display information Accoding to the characteristic of video card, display information can be incorrect...
Specification Standard Signal Table Horizontal Frequency Vertical Frequency Clock Frequency Resolution Model H550(B17CF (KHz) (Hz) (MHz) (720 X 400) 28.322 31.469 70.087 Type Amorphous active matrix super TFT LCD (640 X 480) 31.469 25.175 59.940 Screen Size 38.1cm (Diagonal) (640 X 480) 37.500...
Troubleshooting Power LED is dark. Check the power connection. Adjust COLOR at User Mode in OSD Color Color is irregular. No picture. (Refer to page 4) Menu. OSD, "check cable." Check the resolution and frequency of is displayed on the Check the computer power is on.
Warning To prevent damage or loss, please read this warning carefully. When connecting/disconnecting the plug, pull out the plug itself, and never pull the cord to prevent fire caused by short. To prevent electric shock, do not connect/dis- connect the plug with wet hand. If you see smoke or smell something burning, stop using the unit, switch off the power, pull out the plug, and then contact your local service station.
