User's Guide
H550(B15HF)

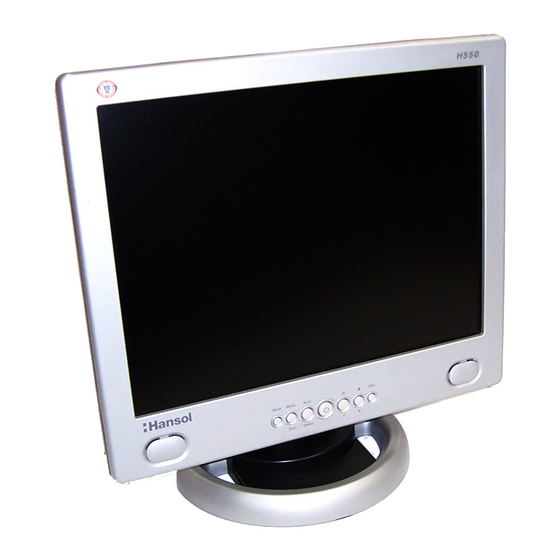

TFT-LCD Monitor
Table of Contents
................................................................................................................11
...................................................................... 13
Advertisement
Table of Contents
Related Manuals for Hansol H550
Summary of Contents for Hansol H550
-
Page 1: Table Of Contents
User’s Guide H550(B15HF) TFT-LCD Monitor Table of Contents Regulatory Information .......................... 2 Introduction Package ..............................3 The range of control Angle ........................3 Connection to Signal Source ........................4 Controls Front panel ..............................5 Functions ..............................5 Adjusting OSD ............................6 Power Management Feature ........................11... -
Page 2: Regulatory Information
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. - Energy Star As an ENERGY STAR partner, Hansol Electronics Inc. has determined that this product meets energy Star guidelines for energy efficiency. Notice... -
Page 3: Introduction
TFT-LCD Monitor Introduction Congratulations on your purchase of this top quality color monitor! The items illustrated below are contained in the carton. Package First, be sure that your carton includes all of them. If any items are missing or damaged, please contact your local dealer or supplier. U.S.A/ Signal Cable Stereo Cable... -
Page 4: Connection To Signal Source
TFT-LCD Monitor Introduction Basic Connection Connection to Signal Source ① Port for AC power cable. ② Port for Audio cable from audio source. ③ Port for Head Phone or External Speaker. ④ Port for signal cable from signal source. ⑤ Kensington Lock. ①... -
Page 5: Controls Front Panel
TFT-LCD Monitor Controls - Front panel MUTE BUTTON VOL BUTTON MENU/EXIT BUTTON BUTTON – BUTTON SELECT/AUTO BUTTON POWER BUTTON (Power indicating LED) - Functions Power button Power button is located in the lower center of the Front Bezel. You can push the button to trun on/off the power. Power Indicating LED Dark : Power off Green : Normal mode... -
Page 6: Adjusting Osd
TFT-LCD Monitor Controls Brightness & Contrast - Adjusting OSD MENU – + SELECT 1. Press the MENU button to access main menu. 2. Use –,+ to move Brightness and Contrast ICON. 3. Press SELECT button into the submenu. Brightness – + SELECT –... - Page 7 TFT-LCD Monitor Horizontal Position – + SELECT – + 1. Use –,+ to move H-Position ICON. 2. Press SELECT button to select it. 3. Use –,+ to adjust display left or right. According to the characteristic of video card, control range can be changed. Vertical Position –...
- Page 8 TFT-LCD Monitor Color MENU – + SELECT 1. Press the MENU button to access main menu. 2. Use –,+ to move Color ICON. 3. Press SELECT button into the submenu. Preset Color – + MENU 1. Use –,+ to select the Mode 1, and Mode 2. 2.
- Page 9 TFT-LCD Monitor OSD H-Position – + SELECT – + 1. Use –,+ to move OSD H-Position ICON. 2. Press SELECT button to select it. 3. Use –,+ to adjust OSD left or right. OSD V-Position – + SELECT – + 1.
- Page 10 TFT-LCD Monitor Language MENU – + SELECT – + 1. Use –,+ to move Language ICON. 2. Press SELECT button to select it. 3. Use –, + to select language. Factory Reset – + SELECT 1. Use –,+ to move the Factory Reset ICON. 2.
-
Page 11: Power Management Feature
TFT-LCD Monitor Power The monitor is equipped with a power saving circuit that confirms to the world-standard Display Power Manager Signalling (DPMS) mode of Video Electronics Standard Association(VESA). Management The power management feature requires that the video card of the computer should support DPMS function. Feature Status LED Sign... -
Page 12: Specifications
TFT-LCD Monitor Specifications B15HF ITEM Type Amorphous active matrix super TFT LCD Screen Size 38.1cm (Diagonal) Maximum Resolution 1024 X 768 @ 75Hz Pixel Range 0.297mm X 0.297mm Display Colors 16.7M Color Panel Contrast Ratio 350 : 1 60° / 60° / 40° / 60° ( Viewing Angle Left / Right / Up / Down) Response Time... -
Page 13: Pin Assignment Table D-Sub Mini 15Pin Connector
TFT-LCD Monitor Pin assignment Pin No. Assignment table D-Sub Mini 15pin connector Red Video Green Video Blue Video Ground Red Video Ground Green Video Ground Blue Video Ground (15 Pin D-Sub) 5V Input Ground Ground H-Sync. V-Sync. -
Page 14: Troubleshooting
TFT-LCD Monitor Troubleshooting Problem Solution Power LED is dark. Check the power connection (Refer to Introduction) No picture. OSD, “check cable.” is Check the computer power is on. displayed on the screen. Check the signal cable between monitor and computer. Message, “No cable.”...
