Summary of Contents for Hansol H530

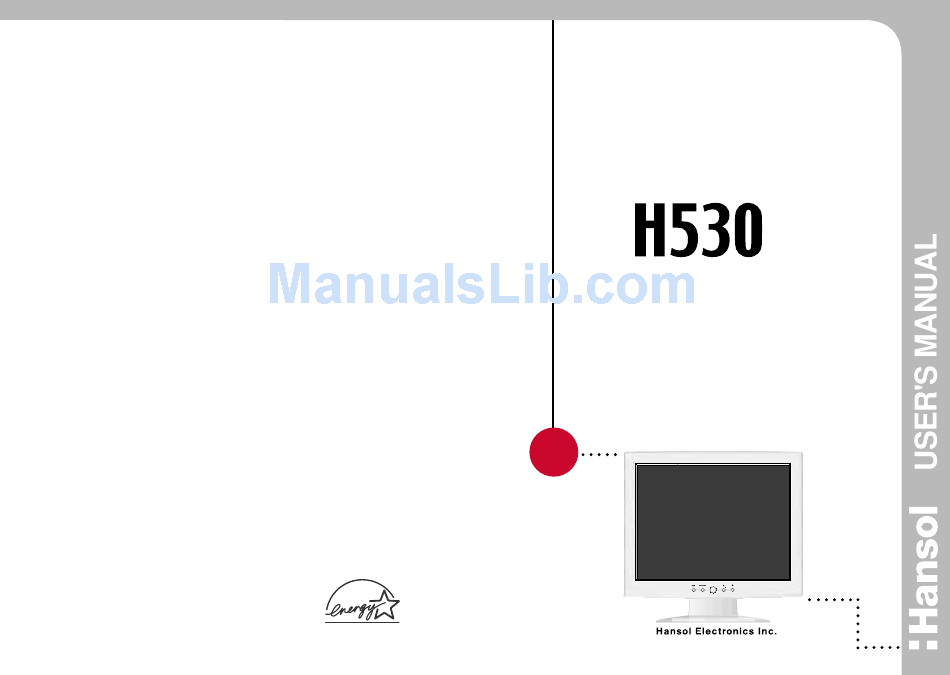

- Page 1 TFT-LCD Color Monitor Printed on the recyclable paper Printed in Korea www.hansolel.co.kr Part No. 942255020001-01...
-
Page 2: Table Of Contents
Table of Contents INFORMATION TO USER : This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Parts interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and,if not installed and used in accordance with... -
Page 3: Parts
Good Posture Guide Parts Place the monitor to face the user and then adjust the monitor angle. Take a break (for about 10 minutes) at every hour during the work with monitor. Refer to the following figure to take the correct posture. Look down the monitor below the horizon. -
Page 4: Connection To Computer
The range of control Angle Connection to Computer How to Adjust the Stand Basic Connection Forward 4 12V DC connection Computer cable terminal For PC For Macintosh Use adapter. Default Adapter for Macintosh (Optional) Refer to the table on the rear side of the optional Macintosh adapter and adjust DIP switch by the resolution. -
Page 5: Installing Monitor Driver
Automatic Installation 1. Insert the Diskette to the Floppy Diskette driver. 2. Double-click "Install.exe". 3. Select the model(H530) and click "OK" button. 4. Select inf file, and then click "OK" button. Click 'Have Disk..'. 5. Click "Exit" button to close the installation. -
Page 6: Name And Function Of Front
Name and Function of Front Front panel Functions Power button Power button is located in the lower center of the Front Bezel. You can push the button to turn on/off the power. Power Indicating LED If the green LED around the power switch turns into blinking amber, it indicates the monitor is in power saving mode. -
Page 7: Power Management Feature
Power Management Feature Adjusting OSD When not in use for a long time, the monitor Brightness automatically reduces its power consumption, meeting power saving standards of EPA and NUTEK. The monitor is equipped with a power saving circuit that Brightness confirms to the world-standard Display Power Manager Signalling MENU SELECT... -
Page 8: Vertical Position
Vertical Position Color V-Position Color MENU SELECT MENU SELECT 1. Press the Menu button. 1. Press the Menu button. 2. Use to move Color ICON. 2. Use to move V-Position ICON. AUTO EXIT 3. Use SELECT button to select it. AUTO EXIT 3. - Page 9 OSD Overlay Special OSD Overlay OSD Overlay SPECIAL SELECT MENU OSD Overlay MENU SELECT 1. Use to move OSD Overlay ICON. 1. Press the Menu button. 2. Use SELECT button to select it. 2. Use to move SPECIAL ICON. 100% AUTO EXIT 3.
-
Page 10: Standard Signal Table
Standard Signal Table Auto-Config Auto-Config Horizontal Frequency Vertical Frequency Clock Frequency Resolution (KHz) (MHz) (Hz) Auto - Config MENU SELECT (720 X 400) 28.322 31.469 70.087 (640 X 480) 31.469 25.175 1. Press the Menu button. 59.940 2. Use to move the Auto-config ICON. (640 X 480) 37.500 75.000... -
Page 11: Specification
Specification Troubleshooting Model H530( Power LED is off. Check the power connection. Type Amorphous active matrix super TFT LCD No picture. (Refer to page 4) Screen Size 38.1cm (Diagonal) Maximum Resolution 1024 X 768 @ 75 Hz Pixel Range 0.297 mm X 0.297 mm... -
Page 12: Warning
Warning To prevent damage or loss, please read this warning carefully. Adjust COLOR at User Mode in OSD Color Color is irregular. Menu. When connecting/disconnecting the plug, pull out the plug itself, and never pull the cord to prevent fire caused by short. - Page 13 M e m o...
