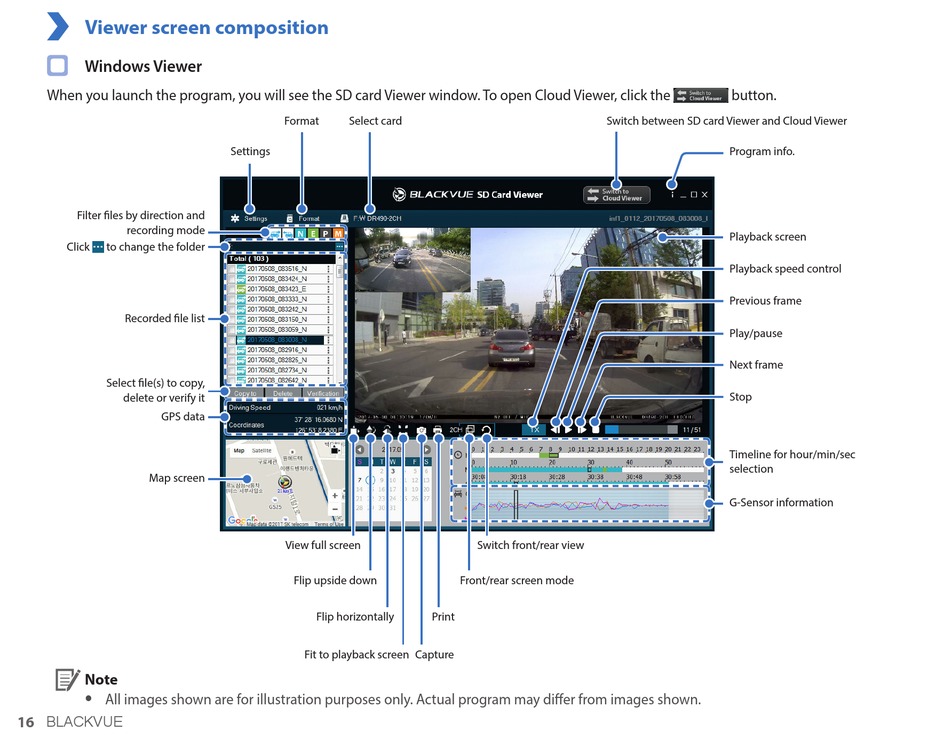

Viewer screen composition
Windows Viewer
When you launch the program, you will see the SD card Viewer window. To open Cloud Viewer, click the
Filter files by direction and
recording mode
Click
to change the folder
Recorded file list
Select file(s) to copy,
delete or verify it
GPS data
Map screen
Note
y All images shown are for illustration purposes only. Actual program may differ from images shown.
16
BLACKVUE
Format
Select card
Settings
View full screen
Flip upside down
Flip horizontally
Fit to playback screen Capture
Switch between SD card Viewer and Cloud Viewer
Switch front/rear view
Front/rear screen mode
Print
button.
Program info.
Playback screen
Playback speed control
Previous frame
Play/pause
Next frame
Stop
Timeline for hour/min/sec
selection
G-Sensor information
