5.6.2

Suspension bracket

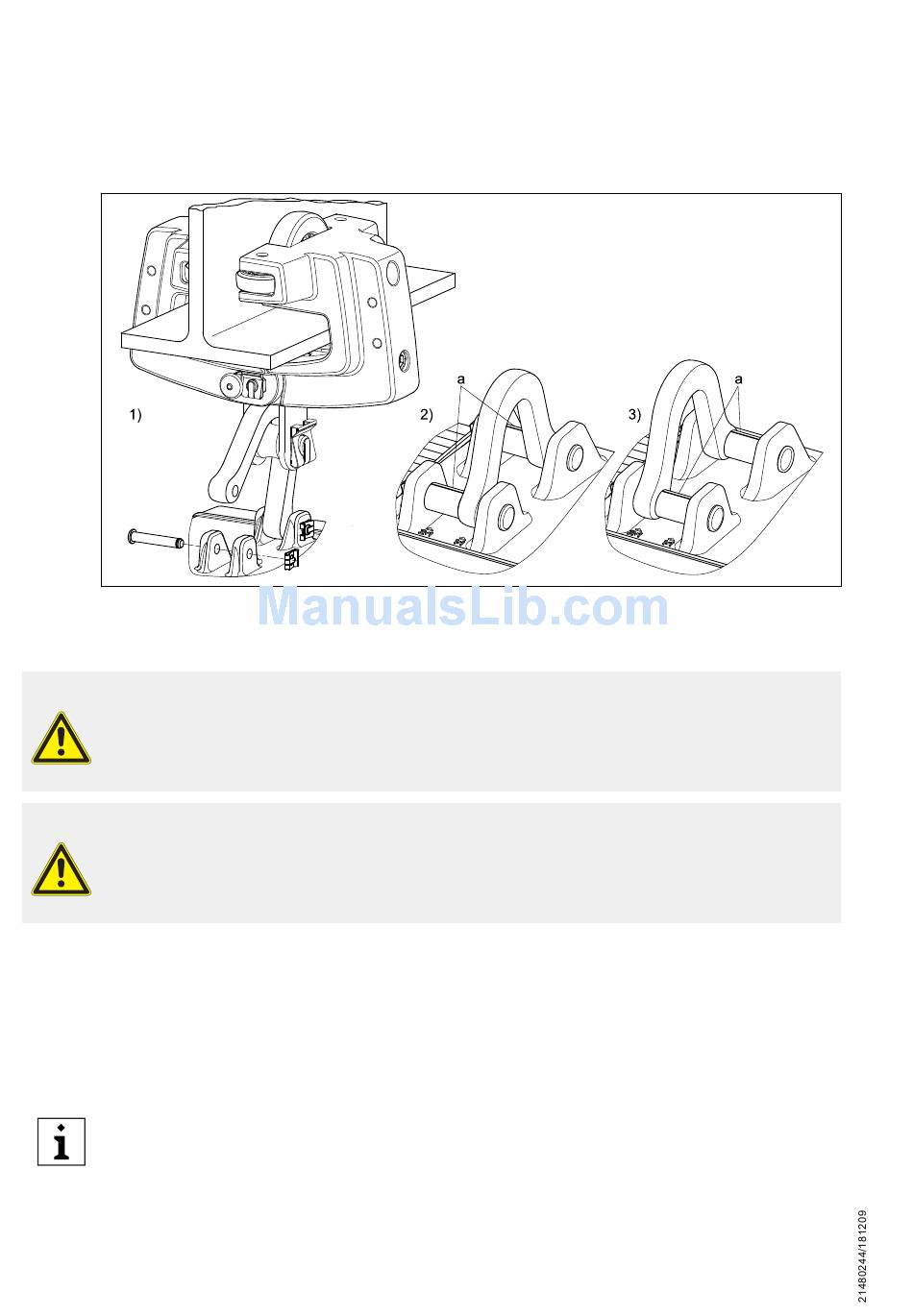

Fig. 19
1 DC-Com 1 - 5 suspension bracket opened
2 DC-Com 10 reeving 1/1
WARNING
Overload
There is a danger to life and limb due to overloading the components.
– The suspension / supporting structure for the chain hoist must be designed for the loads.
DANGER
Falling down of the chain hoist
There is danger to life and limb and of material damage.
Do not move the chain hoist or leave it unsupervised when the suspension bracket is open.
The chain hoist is delivered with the long suspension bracket completely fitted to the chain hoist. The short suspen‐
sion bracket can be ordered for an optimum C dimension.
Fitting:
1. Remove the retaining clip and pin on one side.
2. Suspend the suspension bracket (DC 10 according to the reeving) in the trolley.
3. Slide the pin through the suspension and the suspension bracket (for DC 10 additional spacer tube (a)) and
secure with the retaining clip again.
Make sure that the suspension bracket is fitted in accordance with the reeving arrangement of the chain hoist. If
the suspension bracket is fitted inappropriately, the chain hoist is suspended at an angle. Suspension of the chain
hoist at an angle results in premature wear of the chain drive. In the case of special fittings on the chain hoist, make
sure that an appropriate counterweight compensation is taken into account.
44
3 DC-Com 10 reeving 2/1
a Spacer tube
43215244.eps
