Technical data

3.1

Design overview

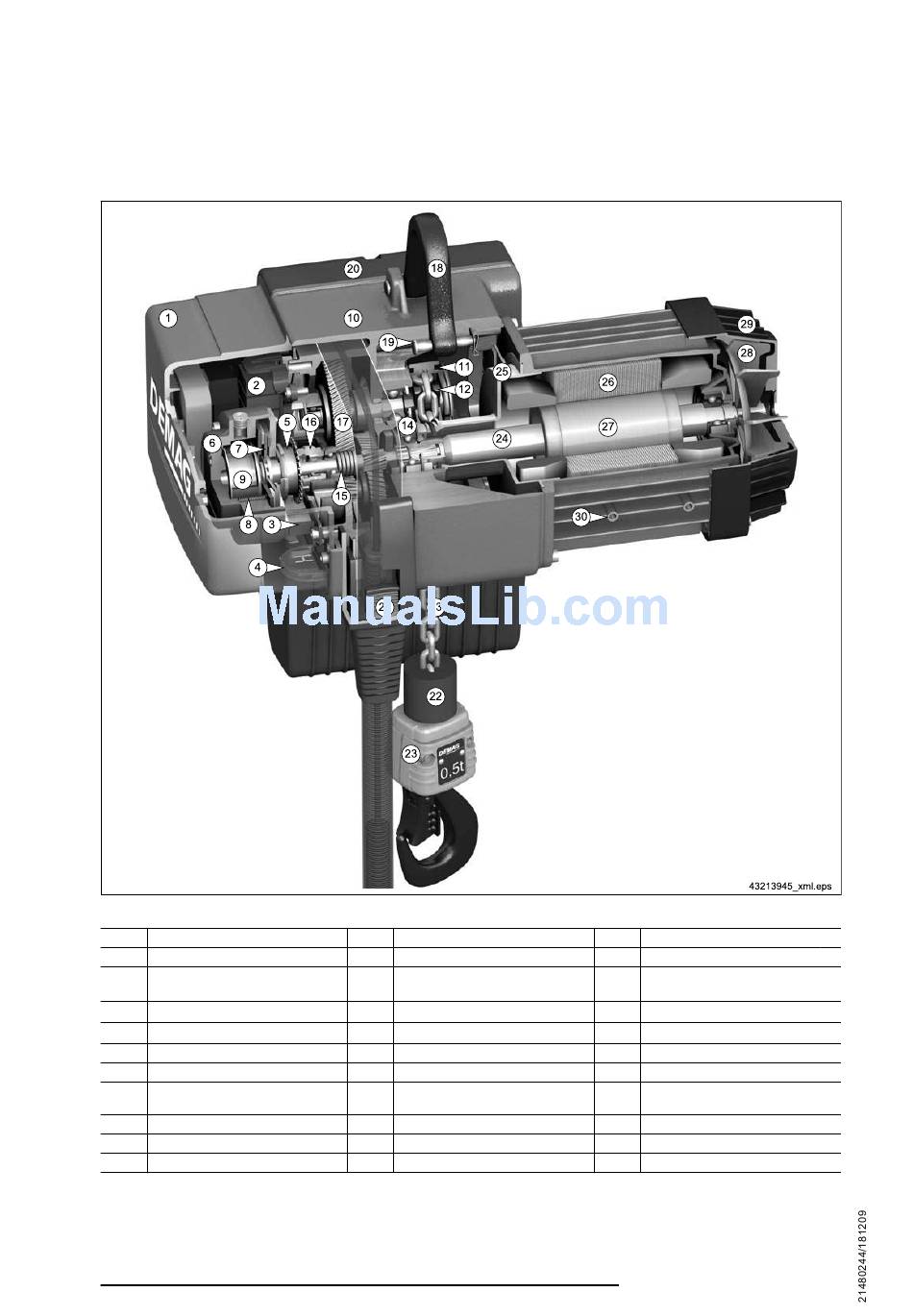

Fig. 4 Single-fall design
Item Designation
1 Electrical equipment cover
2 Control
3 Operation hours counter
4
Window
5 Pulse wheel for speed monitoring
6 Magnet brake
7 Brake disk with linings
8 Brake springs
9 Brake magnet
10 Gearbox housing
Tab. 4
16
2)
Figure deviating from scope of supply
Item
11
12
13
2) 14
15
16
17
18
19
20
Designation
Chain guide
Sprocket
Round section steel chain
Slipping clutch
Dished washer pack
Slipping clutch adjusting nut
DC 1 - 5 two-stage helical gearbox
DC 10 three-stage helical gearbox
Suspension bracket
Suspension bolt
Service cover
Item Designation
21 Adjusting mechanism for control cable
Switch-off buffer for operating limit
22
2)
switch
23
Hook assembly with capacity plate
24 Motor shaft
25 Winding head cap
26 Stator
27 Rotor
28 Fan
29 Fan cover
30 Mounting points
2)
