You control the On/Standby state of the
Red and Violet lasers by clicking on the
appropriate icon. Additionally, if the
Blue laser is in the Standby state, switch
it on by clicking on the Blue laser icon.
On - Laser is in full power mode
Standby
- Laser is in standby power
mode
Warming Up
power from Standby
Not Installed

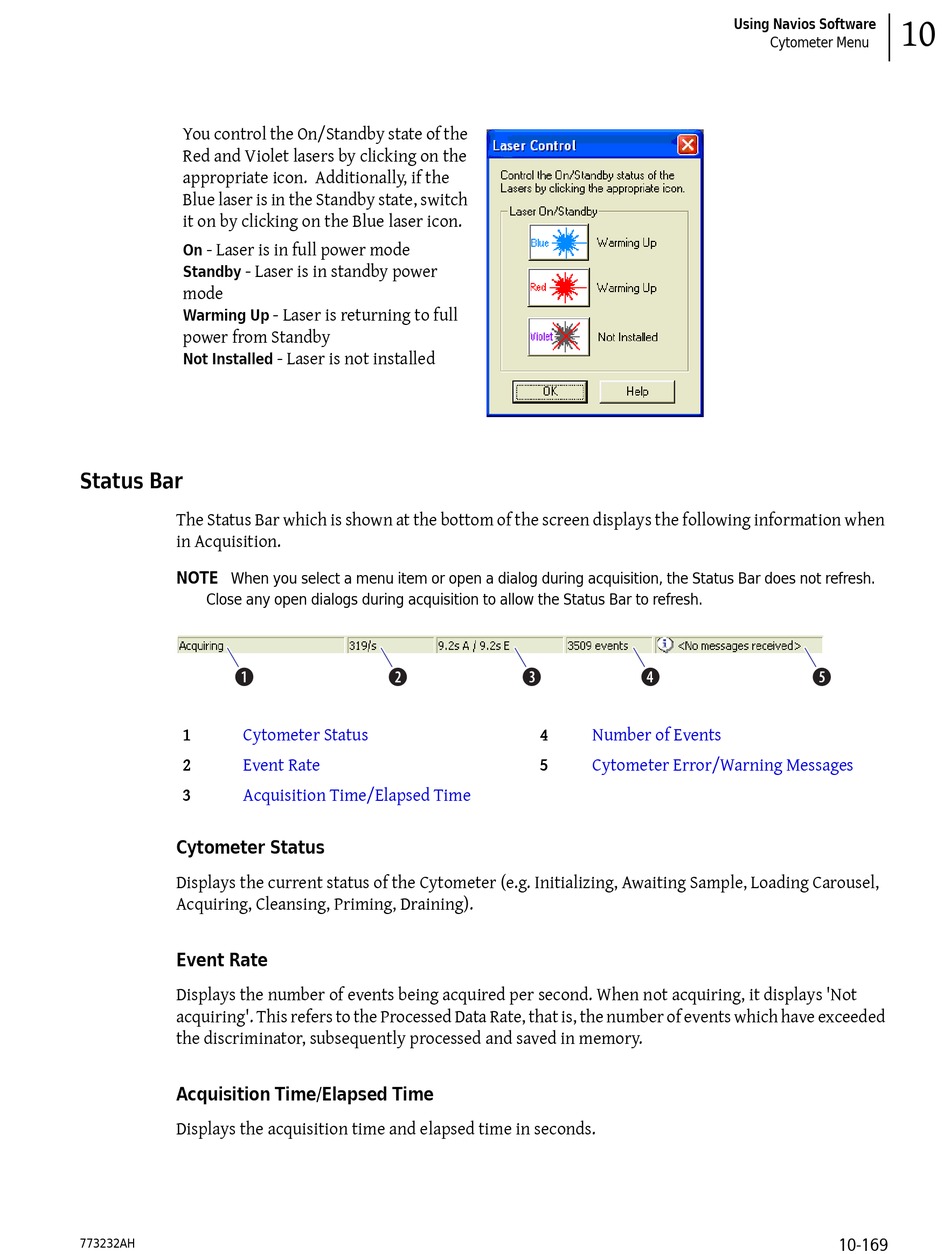

Status Bar

The Status Bar which is shown at the bottom of the screen displays the following information when
in Acquisition.
NOTE
When you select a menu item or open a dialog during acquisition, the Status Bar does not refresh.
Close any open dialogs during acquisition to allow the Status Bar to refresh.
b
1

Cytometer Status

2

Event Rate

3

Acquisition Time/Elapsed Time

Cytometer Status
Displays the current status of the Cytometer (e.g. Initializing, Awaiting Sample, Loading Carousel,
Acquiring, Cleansing, Priming, Draining).
Event Rate
Displays the number of events being acquired per second. When not acquiring, it displays 'Not
acquiring'. This refers to the Processed Data Rate, that is, the number of events which have exceeded
the discriminator, subsequently processed and saved in memory.
Acquisition Time/Elapsed Time
Displays the acquisition time and elapsed time in seconds.
773232AH
- Laser is returning to full
- Laser is not installed
c d e
4
Number of Events
5
Cytometer Error/Warning Messages
Using Navios Software 10
Cytometer Menu
f
10-169
