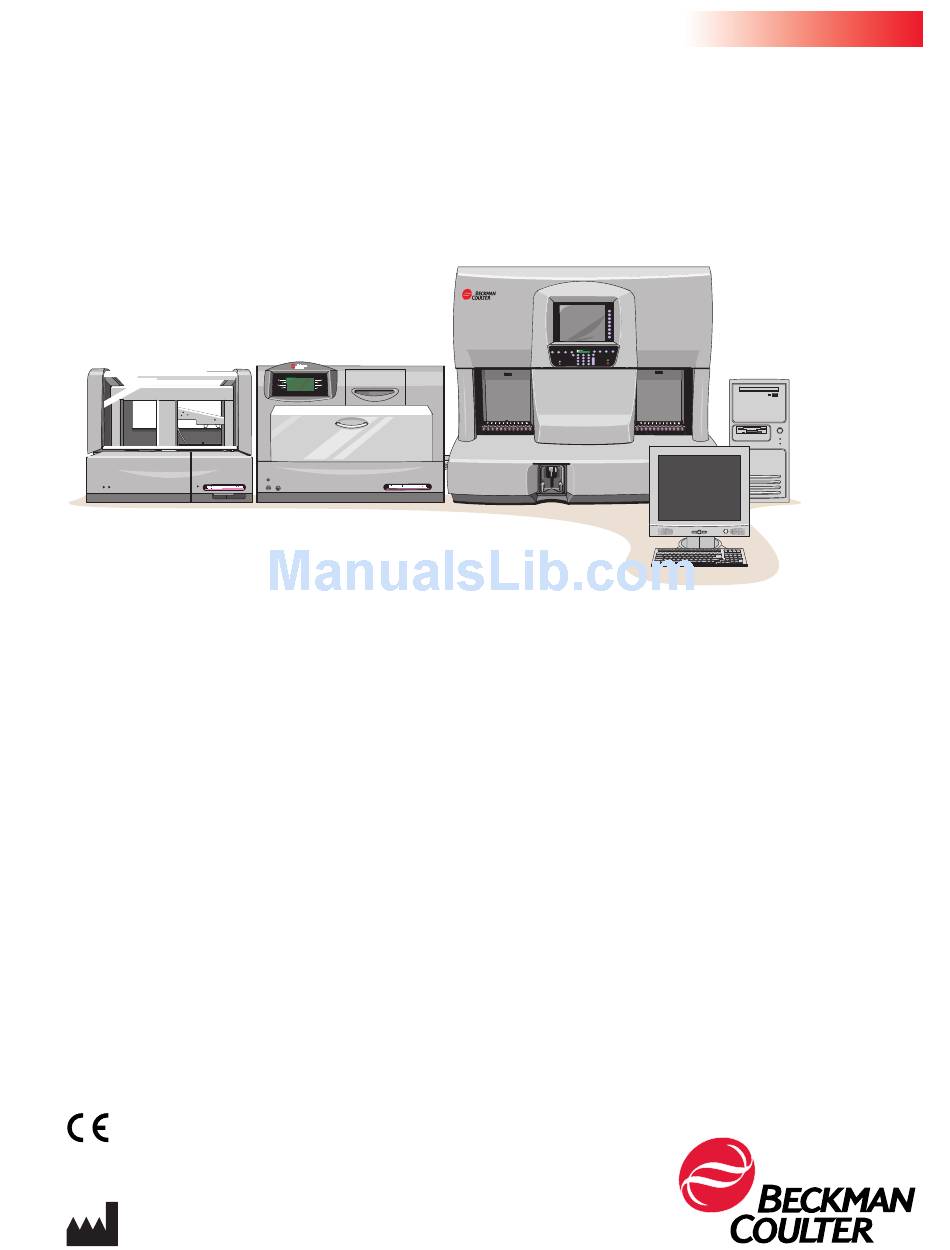

COULTER

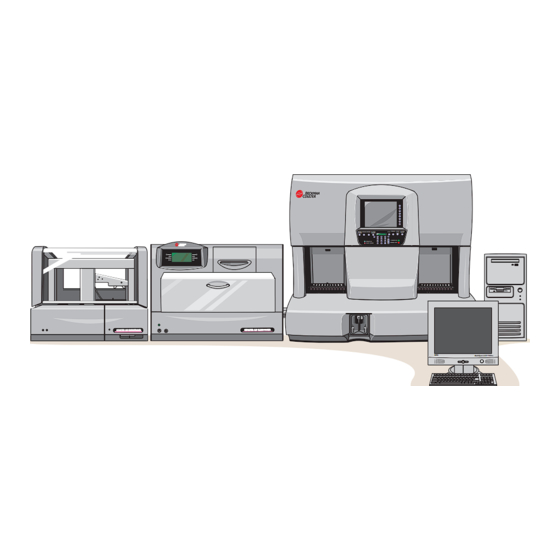

LH 780 System
PN 773022BC (December 2010)
Beckman Coulter, Inc.
250 S. Kraemer Blvd.
Brea, CA 92821
Instructions for Use
I
II
III
IV
V
VI
VII
VIII
PRIME
DRAIN RINSE CLEAR
STOP PREMIX START
ALARM
CONT
RESET
APERT
APERT
ID
F
1
2
3
4
5
6
E
N
POWER ON
START UP
7
8
9
T
.
E
POWER OFF
SHUT DOWN
CE
0
R
NEC
MultiSync LCD 1700m+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LH 780 System and is the answer not in the manual?

Questions and answers

Related Manuals for Beckman Coulter LH 780 System

Summary of Contents for Beckman Coulter LH 780 System

  • Page 1 ® COULTER LH 780 System Instructions for Use VIII PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM CONT RESET APERT APERT POWER ON START UP POWER OFF SHUT DOWN MultiSync LCD 1700m+ PN 773022BC (December 2010) Beckman Coulter, Inc. 250 S. Kraemer Blvd.

  • Page 2: Warnings And Precautions

    This equipment is used in a manner other than specified. Operate the instrument as instructed in the Product Manuals. r You introduce software that is not authorized by Beckman Coulter into your computer. Only operate your system’s computer with software authorized by Beckman Coulter.

  • Page 3: Revision Status

    This document applies to the latest software listed and higher versions. When a subsequent software version changes the information in this document, a new issue will be released to the Beckman Coulter website. For labeling updates, go to www.beckmancoulter.com and download the most recent manual or system help for your instrument.
  • Page 4 REVISION STATUS PN 773022BC...

  • Page 5: Table Of Contents

    CONTENTS WARNINGS AND PRECAUTIONS, ii REVISION STATUS, iii CONTENTS, v INTRODUCTION, xiii ® HOW TO USE YOUR COULTER LH 780 SYSTEM HARD-COPY MANUALS, xiii ABOUT THIS MANUAL, xiv ONLINE HELP SYSTEM, xiv CONVENTIONS, xiv CONTROLS AND INDICATORS, 1-1 ANALYZER, 1-1...

  • Page 6: Contents

    CONTENTS Power On/Off (Workstation), 1-17 Workstation Keyboard, 1-17 Monitor and Volume Controls, 1-18 Using Command Center, 1-18 Process Type, 1-19 Bar-code ID Field, 1-19 Status Area, 1-20 Default Type, 1-21 Last Message, 1-21 Reviewing System Status, 1-21 STARTUP, 2-1 LOGGING OFF/ON THE WORKSTATION, 2-1 Logging OFF , 2-1...
  • Page 7 CONTENTS Transmit, Print and Archive, 3-10 Deleting Control Data, 3-10 Adjusting Control Limits, 3-11 Providing Comments for Quality Assurance, 3-11 Performing NRBC Quality Control, 3-11 EXTENDED QC, 3-13 Overview, 3-13 Extended QC - Random Error, 3-14 Extended QC- Systematic Error, 3-14 Extended QC- Total Error, 3-15 ANALYSIS, 3-16...
  • Page 8 CONTENTS Cleaning the Cassette, 4-8 LOADING THE CASSETTE, 4-9 Using Cassette Clips, 4-9 Installing the Cassette Clips, 4-10 USING HANDHELD SCANNER, 4-11 Setting Up Bar-Code Configuration, 4-12 CYCLING SAMPLES IN AUTOMATIC ASPIRATION MODE, 4-13 CYCLING SAMPLES IN MANUAL ASPIRATION MODE, 4-13 4.10 CHANGING THE NUMBER OF ASPIRATIONS PER TUBE, 4-15 4.11 CHANGING TEST...
  • Page 9 CONTENTS Definitive Messages, 5-14 Auto Validation Overview, 5-15 SHUTDOWN, 6-1 POWER ON/OFF OVERVIEW, 6-1 Workstation, 6-1 Analyzer/Diluter, 6-1 Power Supply, 6-2 PERFORMING DAILY SHUTDOWN, 6-2 PERFORMING EXTENDED SHUTDOWN AND RESTART, 6-2 Shutdown, 6-2 Restart, 6-2 SHUTTING DOWN THE WORKSTATION, 6-3 RESETTING THE WORKSTATION, 6-4 Using the Command...
  • Page 10 CONTENTS DataBase Storage Limits and Saving Results, 7-10 TODO LIST OVERVIEW, 7-10 Setting Up AutoSequencing, 7-11 RANDOM ACCESS OVERVIEW, 7-12 Random Access, 7-12 COLLATION OVERVIEW, 7-13 How Collation Works, 7-13 Printing Collated Reports, 7-13 SEARCHING FOR RESULTS OVERVIEW, 7-14 Searching, 7-14 Results of a Search, 7-14 Search...
  • Page 11 CONTENTS 8.13 SETTING UP REPORTING UNITS, 8-12 Manually Setting Up Controls in Units Other Than US1 or US2, 8-13 8.14 SETTING UP FLAGGING LIMITS, 8-14 Flagging Preferences, 8-15 Defining Definitive Messages, 8-16 Editing Existing Flagging Limits, 8-16 8.15 SETTING UP RULES FOR FLAGGING SAMPLE RESULTS , 8-17 Defining Delta Check Criteria, 8-18...
  • Page 12 CONTENTS Turning AutoStop OFF/ON, 8-36 Turning SlideMaker OFF/ON, 8-36 Setting Up When to Make a Slide, 8-37 Turning Decision Criteria OFF/ON, 8-37 Turning AutoNumbering OFF/ON, 8-37 Turning AutoCollation OFF/ON, 8-38 Turning XB Analysis OFF/ON, 8-38 Turning Xm Analysis OFF/ON, 8-38 Specifying Default Control Lot Numbers, 8-39 Change the Control Lot...

  • Page 13: Introduction

    Use the Reference manual for in-depth information about what the instrument does, the methods it uses, its specifications, and information on installation, safety and software options. The Reference manual for the LH 780 System is included in the online Help system; it is available in hard copy by request.

  • Page 14: About This Manual

    INTRODUCTION ABOUT THIS MANUAL ABOUT THIS MANUAL Your LH 780 System Operator’ s Guide is a source of information for the day-to-day operation of your instrument. This information is organized as follows: Chapter 1, Controls and Indicators Provides description of controls and indicators on the Analyzer, Diluter, Power Supply and Workstation.

  • Page 15: Controls And Indicators

    CONTROLS AND INDICATORS ANALYZER The Analyzer is a subsystem of the LH 700 Series System that physically sits on top of the Diluter. Move the cursor over the illustration to see links to additional information. *SYSTEM RUN* 04/30/05 12:30:18 STATUS : READY TEST MODE ALERT: ASPIRATIONS/TUBE 01...

  • Page 16: Diluter

    CONTROLS AND INDICATORS DILUTER DILUTER This is the fluidics portion of the LH 700 Series System. The Diluter is the subsystem that aspirates the sample, dilutes it and mixes it. Move the cursor over the illustration to see links to additional information. Numeric Keypad Move the cursor over the illustration in Help to see links to additional information.

  • Page 17: Numeric Keypad--0-9

    CONTROLS AND INDICATORS DILUTER Numeric Keypad--. PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM APERT APERT CONT RESET Press to add a decimal point. POWER ON START UP SHUT DOWN POWER OFF Numeric Keypad--0-9 Press these keys to specify a numeric PRIME DRAIN RINSE...

  • Page 18: Numeric Keypad--Ce

    CONTROLS AND INDICATORS DILUTER Numeric Keypad--CE PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM APERT CONT RESET APERT Press prior to pressing POWER ON START UP clear the previous entry and respecify a SHUT DOWN POWER OFF sample ID or an function.

  • Page 19: Numeric Keypad--Drain

    CONTROLS AND INDICATORS DILUTER Numeric Keypad--DRAIN DRAIN PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM APERT APERT CONT RESET Press Empty the RBC bath and the vacuum POWER ON START UP isolator chamber into the waste SHUT DOWN POWER OFF chamber.

  • Page 20: Numeric Keypad--F

    CONTROLS AND INDICATORS DILUTER Numeric Keypad--F PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM APERT APERT CONT RESET Press before you specify the number of a function you want to perform. POWER ON START UP SHUT DOWN POWER OFF Example: Press specify the Prime CBC Lytic Reagent function.

  • Page 21: Numeric Keypad--Power On

    CONTROLS AND INDICATORS DILUTER Numeric Keypad--POWER ON PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM POWER ON APERT CONT RESET Press to turn the APERT instrument on. The instrument: POWER ON START UP SHUT DOWN POWER OFF Performs reagent and waste level sensing.

  • Page 22: Numeric Keypad--Prime Apert

    CONTROLS AND INDICATORS DILUTER Numeric Keypad--PRIME APERT PRIME PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM APERT APERT CONT RESET APERT Press Ensure pneumatics are ON and at POWER ON START UP correct operating levels. SHUT DOWN POWER OFF Drain and rinse baths. Apply vacuum to apertures to remove bubbles from lines to vacuum isolators.

  • Page 23: Numeric Keypad--Shut Down

    CONTROLS AND INDICATORS DILUTER Numeric Keypad--SHUT DOWN PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM SHUT DOWN APERT Press APERT CONT RESET Rinse all lines. POWER ON START UP Perform daily instrument cleaning by SHUT DOWN POWER OFF introducing cleaning agent into the Diluter to prevent protein buildup.

  • Page 24: Numeric Keypad--Start/Cont

    CONTROLS AND INDICATORS DILUTER Numeric Keypad--START/CONT START PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM CONT APERT APERT CONT RESET Press to start or continue automatic sample processing. POWER ON START UP The instrument: SHUT DOWN POWER OFF Automatically primes. Rocks the bed at least 14 times to mix samples before aspiration.

  • Page 25: Numeric Keypad--Stop

    CONTROLS AND INDICATORS DILUTER Numeric Keypad--STOP STOP PRIME DRAIN RINSE CLEAR STOP PREMIX START ALARM APERT APERT CONT RESET Press to stop processing samples after the current sample cycles. After stopping processing, the instrument POWER ON START UP drains and rinses the Hgb cuvette. SHUT DOWN POWER OFF If the rocker bed is mixing samples,...

  • Page 26: Power Supply

    CONTROLS AND INDICATORS POWER SUPPLY POWER SUPPLY Side/Front The Power Supply allows you to monitor: Pressure Vacuum Voltage Temperature. The Power Supply also allows you to adjust pressure. When the Power Supply is unplugged, the system receives no power. 1-12 PN 773022BC...

  • Page 27: Back

    CONTROLS AND INDICATORS POWER SUPPLY Back 250V FUSES POWER TO DILUTER PRESSURE TO DILUTER POWER PRIMARY POWER POWER SUPPLY CORD Power Supply Function Levels The actual level of the function appears on the display. The levels are updated automatically whenever changes occur. 60 PSI pressure level.

  • Page 28: Power Supply Function Status

    CONTROLS AND INDICATORS POWER SUPPLY Power Supply Function Status Green indicates the function is within normal range; red indicates outside normal range. Input Power (AC) Status PNEU 60 PSI 30 PSI 5 PSI VACUUM AC LINE 30.0 5.0 28 115 TEMP Output Voltage (DC) Status 60 PSI...
  • Page 29 CONTROLS AND INDICATORS POWER SUPPLY 60 PSI MAIN 5 PSI 30 PSI ADJUST POWER ADJUST ADJUST 60-PSI pressure level. This should be 60 ±5 PSI. 1/16A 250 V 60 PSI MAIN 5 PSI 30 PSI ADJUST POWER ADJUST ADJUST Master circuit breaker enables/disables input power 1/16A 250 V...

  • Page 30: Workstation

    WORKSTATION CAUTION Possible system damage could occur if the LH Workstation is used to operate personal software that has not been authorized for use by Beckman Coulter. Only use software that is authorized by Beckman Coulter. The Workstation: Stores and recalls sample data...

  • Page 31: Power On/Off (Workstation)

    CONTROLS AND INDICATORS WORKSTATION Power On/Off (Workstation) Before turning the Workstation off, you should try to shut down the Workstation to avoid loss of any data. If you cannot shut down the Workstation, turn the Workstation off, wait 30 seconds and restart the Workstation.

  • Page 32: Monitor And Volume Controls

    CONTROLS AND INDICATORS WORKSTATION Monitor and Volume Controls Press Auto to change the monitor settings. Refer to the instructions in the manual that came with your monitor. A u t o E x i t E n t e r Using Command Center The LH Workstation always appears with a light green Command Center at the bottom of the screen.

  • Page 33: Process Type

    CONTROLS AND INDICATORS WORKSTATION Process Type This field displays the current processing of the sample analysis data received from the instrument. To change the process type: Select for the process type. Select the type of processing you want for the instrument: Select For Results Considered As From AUTO ANALYSIS...

  • Page 34: Status Area

    Workstation that it should stop. Check the History Logs for detailed messages. The database is functioning improperly. Shut down and restart the Workstation. If the problem persists, call your Beckman Coulter Representative. Information systems communications is functioning improperly. Check the History Logs for detailed messages.

  • Page 35: Default Type

    CONTROLS AND INDICATORS WORKSTATION Last batch of Xm results was outside the defined limits. Check the History Logs for detailed messages. The Remote Communication Service (RCS) is enabled. The SlideMaker has stopped. The SlideStainer has stopped. Default Type to select the default test type for sample processing. Options are C, CD, CDR, CR, and R.
  • Page 36 CONTROLS AND INDICATORS WORKSTATION 1-22 PN 773022BC...

  • Page 37: Startup

    STARTUP LOGGING OFF/ON THE WORKSTATION Logging OFF Select on the Command Center to display the Log Off window. Select to confirm that you want to log off the current user name and display the Log On window. Logging ON Type your user name that was defined by your laboratory administrator. Type your password that was defined by your laboratory administrator.

  • Page 38: Setting Up Analyzer Date And Time

    STARTUP PERFORMING DAILY STARTUP If you have not already done so, check the baths to ensure they function properly. Setting Up Analyzer Date and Time Go to the Analyzer screen. Press MAIN MENU Press ANALYZER FUNCTIONS Press DATE AND TIME Press SET DATE &...

  • Page 39: Checking Power Supply And Vacuum Level

    22 in. Hg minimum at sea level AC LINE 90 - 264 V Turn adjustment controls clockwise to increase pressure; counterclockwise to reduce pressure. If the vacuum is out of range, call your Beckman Coulter Representative. Check Baths Open the aperture compartment door. DRAIN Press on the Numeric Keypad.

  • Page 40: Automatic Startup Cycles

    STARTUP PERFORMING DAILY STARTUP Close the aperture compartment door. Automatic Startup Cycles START UP Pressing starts automatic startup cycles. When you press this button, the system flushes the cleaning agent from all Diluter components and tubing if cleaning reagent is not already removed.

  • Page 41: Checking Hgb Voltage Test Results

    STARTUP PERFORMING DAILY STARTUP Select to see the specific background Diff test results. Acceptable background results indicate the count did not exceed the preset tolerances. If results appear with a red background they are unacceptable. If an incomplete computation (..) of the Hgb parameter occurs, verify that the Hgb-blank and Hgb-read voltages are acceptable.

  • Page 42: Checking Ramp Test Results

    When Background Fails Perform a background test or rerun startup. If the problem occurs again, call your Beckman Coulter Representative. When Diluter, Analyzer, Power Supply, Communications, HGB Voltage, or VCS Module Fail Perform a background test, if necessary rerun startup.

  • Page 43: Quality Control

    This can help you better understand control results and interpret them more quickly. Beckman Coulter recommends that Quality Control checks be performed using patient or commercial controls in both automatic (primary) and manual (secondary) modes at intervals established by your lab.
  • Page 44 Perform steps 6 through 9 up to three more times. If you do not get a result below 500, cycle a new vial of primer. If you still do not get a result below 500, call your Beckman Coulter Representative. 13. At the Numeric Keypad, press to reactivate the function for the latex control.

  • Page 45: Running Latex Control-Retic

    QUALITY CONTROL LATRON STOP 17. At the Numeric Keypad, press twice to exit this function. The Numeric Keypad displays READY. Running Latex Control—Retic Perform instrument startup. Check that the instrument process type on the Command Center is set to AUTO ANALYSIS or CONTROL.

  • Page 46: Running Latex Control-Diff And Retic

    LATRON If you do not get a result below 500, cycle a new vial of primer. If you still do not get a result below 500, call your Beckman Coulter Representative. 13. At the Numeric Keypad, press to reactivate the function for the latex control. The Numeric Keypad displays PRESS MANUAL OR CLEAR APERTURE.

  • Page 47: Series Cell Control And Retic-C

    Perform steps 6 through 9 up to three more times. If you do not get a result below 500, cycle a new vial of primer. If you still do not get a result below 500, call your Beckman Coulter Representative. 13. At the Numeric Keypad, press to reactivate the function for the latex control.

  • Page 48: Aspirate Control In Manual Mode

    Prepare the controls according to the directions in the package insert. Ensure the controls are properly set up on the Workstation. Note: If you run a Beckman Coulter control without setting it up, the Workstation automatically creates control setup information for you. The control information identifies the lot number, source, type and level of the control.

  • Page 49: Reviewing Control Results

    Beckman Coulter recommends review, appropriate to the requirements of the patient population, of all results displaying a flag, code or message.

  • Page 50: When A Control Is Outside Its Expected Ranges

    Rerun the control to ensure the problem was not a statistical outlier. Ensure the control material was not contaminated by running another vial or level of control. Watch for normal sample flow as part of troubleshooting the instrument. If necessary, call your Beckman Coulter Representative. PN 773022BC...

  • Page 51: When A Latex Control Is Outside Its Expected Ranges

    QUALITY CONTROL 5C SERIES CELL CONTROL AND RETIC-C When a Latex Control is Outside its Expected Ranges Ensure the control setup information (assigned values and expected ranges) matches those on the package insert. If they do not, change the control information to match the package insert, then rerun the control.

  • Page 52: Transmit, Print And Archive

    QUALITY CONTROL 5C SERIES CELL CONTROL AND RETIC-C Double-click one of the source folders to expand or collapse the list of control types for the selected control source. Double-click one of the folders representing a control type to expand or collapse the list of lot numbers for the selected control source and type.

  • Page 53: Adjusting Control Limits

    QUALITY CONTROL 5C SERIES CELL CONTROL AND RETIC-C Adjusting Control Limits Select on the Command Center to display the Quality Assurance application. Select to display the Controls window. Select the specific control for which you want to adjust limits. The control results table, statistics and graphs appear on the window.
  • Page 54 At the end of 30 days, calculate the mean difference and expected ranges for the positive control as indicated in the table (K through N). Beckman Coulter suggests using the following range as a guideline until your own expected range can be established: Minimum Difference -12.8...

  • Page 55: Extended Qc

    QUALITY CONTROL EXTENDED QC EXTENDED QC Overview Extended QC Rules are derived from the German Quality Control Guidelines for the Medical laboratory, known in Germany as Rili-BÄK. Rili-BÄK (Guidelines of the Federal Chamber of Physicians), was first published in 1987 and amended in 1990 and 1993 covering clinical chemistry, immunochemistry and other tests, but not hematology.

  • Page 56: Extended Qc - Random Error

    QC programs or certain middleware products for the purpose of extended QC monitoring. Beckman Coulter does not support the use of any such third-party control products or related Quality Control programs. Therefore, validation of non- Beckman Coulter control products and related software is solely the responsibility of the laboratory.

  • Page 57: Extended Qc- Total Error

    QUALITY CONTROL EXTENDED QC in the statistics section of the QC summary results screen. The user must acknowledge the alert, and the event is logged on the QC Event log. Extended QC- Total Error Total Error is Extended QC’ s measurement of inaccuracy, as compared to an established limit. Total Error is defined as the deviation of a single measurement from the Target Value that was setup for your 5C Cell control (e.g.

  • Page 58: Xb Analysis

    QUALITY CONTROL XB ANALYSIS XB ANALYSIS Overview XB Analysis is a quality-control method that monitors instrument performance (calibration) by tracking the MCV, MCH, and MCHC parameters of all patient samples. For more information about XB Analysis, refer to the XB Analysis topic in the Reference Information section of the Help.

  • Page 59: Adding Comments To An Xb Batch

    QUALITY CONTROL Xm Analysis Overview Select: This To Display This Current XB batch results and statistics XB batch results and statistics of the batch immediately prior to the current batch. XB batch results and statistics of the batch previous to the last batch. XB batch means and statistics.
  • Page 60 QUALITY CONTROL Xm Analysis Overview known target values, to monitor instrument performance. For more information about Xm Analysis, refer to Setting Up Xm Analysis. Setup Options When you set up Xm Analysis, you have the following options: You can specify that you want Xm to automatically stop processing on an instrument. Otherwise, Xm status appears in the Xm history log, and it is up to you to investigate it.
  • Page 61 QUALITY CONTROL Xm Analysis Overview You can configure the limit for each parameter by: Manually entering a limit Automatically calculating a limit. You can specify 2SD or 3SD limits as a deviation from target. The limits are updated once a batch is completed. You can set/lock the last batch limit.

  • Page 62: Reporting

    QUALITY CONTROL Xm Analysis Overview Reporting Auto-Print Reports You can auto-print batch mean summary report (graphical and tabular) with the following options: Every 20 batches If batch is out of limits Upon Demand Reports The following reports can be printed at your request: Batch means summary (graphical and tabular) Batch runs Exporting...

  • Page 63: Adding Comments To An Xm Batch

    PARTICIPATING IN IQAP Use this procedure to download control folder data from the LH Workstation to your removable media for submission to the Beckman Coulter Interlaboratory Quality Assurance Program (IQAP). You will be supplied with self-adhesive return labels and pre-addressed mailers. Control data should be submitted to IQAP on a monthly basis as soon as you have finished using a set of controls.

  • Page 64: Troubleshooting

    QUALITY CONTROL PARTICIPATING IN eIQAP Select . An IQAP Disk Storage window appears. Ensure the removable media (formatted CD, formatted diskette, flash drive) is inserted in the appropriate drive or attached to the computer. Select the lot numbers you want copied to the removable media. Select to begin copying the control information.
  • Page 65 QUALITY CONTROL PARTICIPATING IN eIQAP 3.5 inch diskette CD-ROM, or flash drive. Follow instruction on the eIQAP site to upload data. Use a CD or flash drive for the eIQAP upload if the computer you use does not have a 3.5 inch floppy drive. 3-23 PN 773022BC...
  • Page 66 QUALITY CONTROL PARTICIPATING IN eIQAP 3-24 PN 773022BC...

  • Page 67: Run Samples

    CLSI publication H4-A3 (for capillary) CLSI publication H3-A3 (for venipuncture) Beckman Coulter recommends you use a dipotassium (K2) or tripotassium (K3) salt of EDTA. IMPORTANT Misleading results could occur if you fail to leave space at the top of the tube between the sample and the stopper.

  • Page 68: Identifying Samples Overview

    RUN SAMPLES IDENTIFYING SAMPLES OVERVIEW IDENTIFYING SAMPLES OVERVIEW Automatic Aspiration Mode The Workstation identifies a sample by: Reading the cassette number and cassette position of each sample at the time it is cycled Reading the tube’ s bar-code label automatically Allowing you to provide sample demographic information that includes optional identifiers, such as a patient identifier Time-stamping sample results with the date and time they were analyzed.

  • Page 69: Setting Up Identifiers

    RUN SAMPLES IDENTIFYING SAMPLES OVERVIEW Using a pipette, dispense 200 µL blood into a second clean tube which does not contain any anticoagulant. Use a pipette to dispense 200 µL diluent into the same (second) tube. Mix well. On the Workstation Command Center: Enable Predilute (CBC).

  • Page 70: Using Bar-Code Labels

    System; however, your laboratory may require tube adapters or cassette clips. Check the tube list for details. If your laboratory requires adapters or clips, contact your Beckman Coulter Representative. USING BAR-CODE LABELS Beckman Coulter recommends the use of bar-code labels for specimen identification.

  • Page 71: Labeling Requirements-Tubes With Sleeve Adapters

    RUN SAMPLES USING BAR-CODE LABELS C o r r e c t I n c o r r e c t You can use up to two labels in addition to the sample tube manufacturer's label. S t o p p e r >...

  • Page 72: Labeling Requirements-Tubes With Cassette Clips

    RUN SAMPLES USING BAR-CODE LABELS Ensure that the bar-code symbol and a 3 mL 1/4-inch blank space on either side of the bar-code symbol are visible through the read window when you insert the tube into the adapter. 2 mL You must position the gray sleeve TOP OPENING adapters in a cassette so that their keys...

  • Page 73: Clips,

    RUN SAMPLES USING BAR-CODE LABELS You can use a maximum of two C o r r e c t I n c o r r e c t labels in addition to the sample tube S t o p p e r manufacturer’...

  • Page 74: Cassette Handling

    RUN SAMPLES CASSETTE HANDLING CASSETTE HANDLING The cassette is the carrier for the C a s s e t t e a l i g n m e n t sample tubes (patient, control, or m a r k e r L a b e l special test) used in Automatic a l i g n m e n t...

  • Page 75: Loading The Using Cassette

    RUN SAMPLES LOADING THE CASSETTE LOADING THE CASSETTE WARNING Risk of personal injury. Forcing a tube into the cassette improperly could cause it to break. Do not force a tube into a cassette. If a tube should break, use your laboratory’s safety procedure for cleaning the broken glass.

  • Page 76: Installing The Cassette

    RUN SAMPLES LOADING THE CASSETTE Installing the Cassette Clips Install the cassette clips into the HEMOGARD cassettes for tubes with HEMOGARD Closure. You can use any of the tubes approved for this cassette with these cassette clips in place. Place the bottom of the cassette clip into the opening of the cassette.

  • Page 77: Using Handheld

    1. Risk of sample misidentification. When using the handheld scanner, occasional misread errors can occur as the result of partial label scans and damaged or misapplied labels. Beckman Coulter recommends that you verify each bar-code reading to assure correct patient identification.

  • Page 78: Setting Up Bar-Code

    RUN SAMPLES USING HANDHELD SCANNER After the sample ID appears on the Analyzer. Press to accept the sample ID or STOP to reject the sample ID. Ensure the sample ID is correctly displayed at the Analyzer screen. Cleaning the Scan Window Note: The following information is reprinted from the Welch Allyn IT 3800/3900 Handheld Linear Imager User's Guide by by permission of Welch Allyn, Inc.

  • Page 79: Cycling Samples In Automatic Aspiration

    RUN SAMPLES CYCLING SAMPLES IN AUTOMATIC ASPIRATION MODE 10. Press one of the following: SYSTEM RUN To cycle samples. RETURN To display the Analyzer MAIN MENU screen. CYCLING SAMPLES IN AUTOMATIC ASPIRATION MODE STOP WARNING Risk of personal injury. If a problem occurs while the system is cycling, press and wait for the system to stop before you do anything to correct the problem.

  • Page 80: Mode,

    RUN SAMPLES CYCLING SAMPLES IN MANUAL ASPIRATION MODE Ensure the sample ID is displayed correctly at the Analyzer screen. If you need to change the ID, go back to step a. To scan the sample ID into the Barcode field at the Workstation At the Workstation: Place the cursor in the barcode field.

  • Page 81: Changing The Number Of Aspirations Per

    RUN SAMPLES CHANGING THE NUMBER OF ASPIRATIONS PER TUBE Aspirate the sample. IMPORTANT Risk of missing identifier. If you fail to send the sample ID to the instrument within 60 sec- onds of data entry in the Bar-Code ID field, the sample ID is cleared. This minimizes the risk of sample mis- identification.

  • Page 82: Enabling/Disabling Blood

    RUN SAMPLES ENABLING/DISABLING BLOOD DETECTOR Note: If Random Access is enabled, review Random Access Overview, Heading 7.7. 4.12 ENABLING/DISABLING BLOOD DETECTOR Go to the Analyzer screen. Press MAIN MENU Press SYSTEM CONFIGURATION. Press until the appropriate setting appears. BLOOD DETECTOR Note: The system flags all parameters with a P (partial aspiration) when samples are analyzed with blood detectors disabled.

  • Page 83: Reviewing Data

    REVIEWING DATA REVIEWING SAMPLE RESULTS Select on the Command Center to display the Patient Tests application. If necessary, select to display the Results & Graphics window that contains: Parameters Flags Codes Definitive messages Suspect messages Histograms DataPlots Identification information. If necessary, find the sample results you want to review. Specify the way you want the window updated: Keeps the current sample displayed.
  • Page 84 REVIEWING DATA Results & Graphics Overview Tab Time Aspiration Mode Status Instrument Listname Elapsed Time Parameters UWBC RET% RET# MCHC RDW-SD NRBC% NRBC# Suspect/Definitive This field identifies suspect and definitive messages associated with the sample result. Suspect messages appear for sample results based on an abnormal cell distribution or population.

  • Page 85: Reviewing 2D

    REVIEWING DATA REVIEWING 2D DATAPLOTS REVIEWING 2D DATAPLOTS By default, DataPlots present a combined view of population density and membership. Colors represent different types of cells. Shades of colors represent the number of cells—bright colors being the most dense. Button Population Color Button...

  • Page 86: Reviewing 3D

    REVIEWING DATA REVIEWING 3D DATAPLOT Position of individual populations as compared to normal/typical positions Amount of separation between populations as compared to normal/typical separation Relative concentration of each population as compared to normal/typical concentrations Presence of unexpected or non-typical populations. Refer to the Reference manual for more information about DataPlot development.

  • Page 87: Retrieving Data

    REVIEWING DATA REVIEWING HISTOGRAMS 3D DataPlot without the selected population. Select the button a second time to include the corresponding population. Retrieving Data You can also view data for results that have previously been saved. By default, the Workstation stores data for the last 2000 samples. You can change the amount of data the Workstation stores as part of setup.

  • Page 88: What To Look For

    REVIEWING DATA EDITING SAMPLE RESULTS What to Look For IMPORTANT Incorrect results can occur if you estimate the number of cells from the distribution curves. Curves show only the relative, not actual, number of cells in each size range. Do not estimate the number of cells from the distribution curves.

  • Page 89: Reviewing Patient

    Delta Check and Reflex Decision Rules are not reevaluated. Beckman Coulter Inc. does not claim to identify every abnormality in all samples. Beckman Coulter suggests using all available flagging options to optimize the sensitivity of instrument results. All flagging options include reference ranges (H/L), action and critical limits, definitive flags, suspect flags, parameter codes, delta checks, decision rules and system alarms.

  • Page 90: Rules For Flagging Results

    REVIEWING DATA PROCESSING RESULTS OVERVIEW Rules for Flagging Results (Decision Rules & Criteria) You can define rules for delta checking. When the Workstation finds a sample for a patient that already has sample results in the DataBase, it uses the rules you define to determine how to flag the sample.
  • Page 91 Flags, codes, suspect and definitive messages are used to alert you to an instrument malfunction, specimen abnormality, abnormal data pattern, or abnormal results. Beckman Coulter recommends review, appropriate to your patient population, of all results displaying a flag, code or other message.

  • Page 92: Flags,

    Beckman Coulter Inc. recommends avoiding the use of single messages or outputs to summarize specimen results or patient conditions. There may be situations where the presence of a rare events may fail to trigger a suspect message.
  • Page 93 Beckman Coulter Inc. recommends avoiding the use of single messages or outputs to summarize specimen results or patient conditions. There may be situations where the presence of a rare events may fail to trigger a suspect message.

  • Page 94: Codes,

    All flagging options include reference ranges (H/L), action and critical limits, definitive flags, suspect flags, parameter codes, delta checks, decision rules and system alarms. Beckman Coulter Inc. recommends avoiding the use of single messages or outputs to summarize specimen results or patient conditions.

  • Page 95: Suspect Messages,

    REVIEWING DATA SUSPECT MESSAGES IMPORTANT The operating temperature influences the rate of kinetic reactions. The LH 700 Series should be recalibrated whenever the ambient temperature changes by 10 degrees Fahrenheit. If you have to recalibrate the CBC due to a large change in laboratory ambient temperature, you should also re-evaluate the differential flagging sensitivity settings for your typical patient population.

  • Page 96: 5.12 Definitive Messages

    All flagging options include reference ranges (H/L), action and critical limits, definitive flags, suspect flags, parameter codes, delta checks, decision rules and system alarms. Beckman Coulter Inc. recommends avoiding the use of single messages or outputs to summarize specimen results or patient conditions.

  • Page 97: Auto Validation Overview

    REVIEWING DATA DEFINITIVE MESSAGES Basophilia BA% or BA# high Eosinophilia EO% or EO# high Erythrocytosis RBC high H&H Check Failed Hct < ((Hgb*3) - 3) Hct > ((Hgb * 3)+3) Hypochromia (X) MCH low X indicated 1+ or 2+ gradient range Large Platelets MPV high Leukopenia...
  • Page 98 REVIEWING DATA DEFINITIVE MESSAGES Decision Rule criteria, it could appear in either the Delta Check or Reflex folders (depending which one was triggered), or in the Review folder, depending whether they have configured Delta Check and Reflex failures to go to the Review folder. It is possible, if the sample fails both decision rule-related and non-rule related criteria, for the sample to appear in both or all three folders.
  • Page 99 REVIEWING DATA DEFINITIVE MESSAGES Any active parameter which has a nonnumeric value (+++++, :::::, .., -----), a Review flag, Partial Aspiration (P), exceeds linearity (+), or MCV exceeds threshold (*). Any suspect flag, where the active parameter set includes at least one parameter from the suspect message parameter group.
  • Page 100 REVIEWING DATA DEFINITIVE MESSAGES Sample Results: (printed and transmitted) Comments: Make Retic Smear and scan slide 4.8 x 10 cells/µL 2.53 x 10 cells/µL 80 aL x 10 cells/µL 6.3 g/dL 10.3 fL 19.6 % 77.4 fL 24.9 pg MCHC 32.1 g/dL 16.1 % Ret %...
  • Page 101 REVIEWING DATA DEFINITIVE MESSAGES Sample Setup: Run the sample in the Retic mode, sample results are as follows. Comments: Make Retic Smear and scan slide WBC 4.8 x 10 cells/µL 2.53 x 10 cells/µL 80 aL x 10 cells/µL 6.3 g/dL MPV 10.3 fL 19.6 % 77.4 fL...
  • Page 102 REVIEWING DATA DEFINITIVE MESSAGES 5-20 PN 773022BC...

  • Page 103: Shutdown

    Analyzer/Diluter Use the following guidelines for shutting down the Analyzer. Every 24 Hours: Beckman Coulter recommends that you shut down the instrument for at least 30 minutes every 24 hours. If you leave your instrument powered on in Shutdown and the pneumatics are off, an automatic purge occurs every 24 hours to prevent flow cell and sample line clogging.

  • Page 104: Power Supply

    Note: Per your system configuration, the cleaning agent is automatically removed from the instrument at the time preset in the Analyzer. This can be set from within 30 minutes to 24 hours. Ask your Beckman Coulter Service Representative if the timing needs to be changed.

  • Page 105: Shutting Down The Workstation

    SHUTDOWN SHUTTING DOWN THE WORKSTATION POWER ON Press to power on the instrument. Use F17 twice to remove the deionized water from the cleaning agent pump. Use F67 four times to remove the deionized water from the Diluter. SHUT DOWN Press to remove the deionized water from the cleaning agent lines.

  • Page 106: Resetting The Workstation

    SHUTDOWN RESETTING THE WORKSTATION RESETTING THE WORKSTATION Use any of the following methods to reset the Workstation. If these methods fail to work, power down the Workstation and power it back up after approximately 5 minutes. Using the Command Center Select .

  • Page 107: Database And Todo List

    DATABASE AND TODO LIST DATABASE & TODO WINDOW This window enables you to see sample information stored in the database. The tree list on the left side of the window provides an organized view of the database. The DataBase & ToDo list in the upper right portion of the window displays specific records in the database.

  • Page 108: Transmitting, Printing And Archiving

    DATABASE AND TODO LIST COMMON FUNCTIONS (OVERVIEW) Deselect all items in the selected folder. Increment Slides Made column for the selected results. Transmitting, Printing and Archiving Similar to the Results & Graphics window, standard buttons appear at the top and side of this window.

  • Page 109: Archiving Data

    DATABASE AND TODO LIST COMMON FUNCTIONS (OVERVIEW) Archiving Data If you need to be able to retrieve sample results for samples run several months ago, use the archive function Archiving data allows you to copy data (patient demographics, results, and flags) to removable media in a spreadsheet format.

  • Page 110: Printing

    DATABASE AND TODO LIST COMMON FUNCTIONS (OVERVIEW) Select to confirm your deletion. The Workstation deletes the sample information and returns to the previous window. Printing Select the items you want to print. If you are currently viewing the Results & Graphics window, only the current results can be printed.
  • Page 111 DATABASE AND TODO LIST COMMON FUNCTIONS (OVERVIEW) Patient Application For This Window Workstation Prints Results & Graphics Sample data based on the parameters specified for inclusion and reporting options defined for the sample. DataBase & ToDo Sample data based on the parameters specified for inclusion and reporting options defined for the sample.

  • Page 112: Archiving

    CDs so that you always have one available. Be sure to store them carefully. Place a blank CD in the CD writer drive. From the workstation desktop (Beckman Coulter main screen), double click on the "Burn CD and DVDs" icon. The Easy Creator 5 screen appears.

  • Page 113: Reviewing Archived Information

    DATABASE AND TODO LIST COMMON FUNCTIONS (OVERVIEW) Go to your Archive screen for Patient Records or Control Records. Select from the toolbar. Choose one of the following three options: All Patient (or Control) Records All Unarchived Patient (or Control) Records Selected Patient (or Control) Records If you choose the first or second option, Select and skip to Step 2.

  • Page 114: Saving Sample Results

    DATABASE AND TODO LIST SAVING SAMPLE RESULTS The archived information appears with the same flags and codes that appear on the LH Workstation. Transmitting Select the items you want to transmit to your information system. If you are currently viewing the Results & Graphics window, only the current results can be transmitted. If you are currently viewing the DataBase &...

  • Page 115: Adding A Sample Request To The Todo List

    DATABASE AND TODO LIST ADDING A SAMPLE REQUEST TO THE TODO LIST ADDING A SAMPLE REQUEST TO THE TODO LIST Select on the Command Center to display the Patient Tests application. Select . The Add Test window appears with blank fields. If you want to add a test or sample request: Select the specific test identifiers you want to add.

  • Page 116: Database Overview

    DATABASE AND TODO LIST DATABASE OVERVIEW Select to save the test information. Reports with Pending status include a special message indicating the status. When all tests complete processing, the report includes a special message that indicates the change in status. DATABASE OVERVIEW When the Workstation first receives sample information, the Workstation stores the data in a series of files and the DataBase.

  • Page 117: Setting Up Autosequencing,

    DATABASE AND TODO LIST TODO LIST OVERVIEW You download information from your information system and the instrument has not yet processed them. You generate the list manually because you have no information system and you want to store identification data for your samples in the ToDo list. You add a test to an existing sample result.

  • Page 118: Random Access Random Access,

    DATABASE AND TODO LIST RANDOM ACCESS OVERVIEW Select to display the AutoSequencing window. Select the level at which you want to control AutoSequencing. At the patient and test levels, for each identifier you want AutoSequenced: Select the identifier— Patient Sequence Number Patient ID Sample ID Cass/Pos...

  • Page 119: Overview,

    DATABASE AND TODO LIST COLLATION OVERVIEW If your samples have not been preassigned, check that the Default Type is set to the correct operating mode. The Default Type will determine the test mode if a positive identifier is not available. Note: Multiple aspirations per tube will interfere with Random Access sample processing.

  • Page 120: Results Of A Search,

    DATABASE AND TODO LIST SEARCHING FOR RESULTS OVERVIEW SEARCHING FOR RESULTS OVERVIEW Searching All text fields in Database Explorer include From and To fields. To retrieve all Patients IDs beginning with '123', specify '123' in the From field, and '1239999' in the To field. Results of a Search Select on the DataBase &...

  • Page 121: Name,

    DATABASE AND TODO LIST FINDING SAMPLE RESULTS USING THE DATABASE EXPLORER BUTTON Flag Selection Specific Flag Selection If you want to save the search criteria to use again later, type a criteria name and select Select to begin the search. The list of matches is sorted by numeric characters followed by alphabetic characters.

  • Page 122: Information,

    DATABASE AND TODO LIST VIEWING DATABASE COUNT INFORMATION 7.11 VIEWING DATABASE COUNT INFORMATION Select on the Command Center to access the Status application. Select to display the current database count information. The system displays the number of completed records and the number of ToDo records in each database folder.

  • Page 123: Setup,

    SETUP SYSTEM SETUP OVERVIEW Your COULTER LH 700 Series System provides a lot of flexibility in setup. You can tailor the way your system appears and runs to suit your laboratory's needs. Select a button on the System Setup window to access different setup options you can set to control the processing on your Workstation.

  • Page 124: Information,

    SETUP CHANGING REAGENT INFORMATION Workstation user names. Windows® 2000 Control Panel settings. CHANGING REAGENT INFORMATION WARNING Misleading results can occur if a diluent is used with the incorrect diff lytic reagent. Use only LH ® ® Series Diluent with LYSE S III diff lytic reagent.
  • Page 125 The window you see varies depending on the source and type of control you selected. 10. Perform one of the following depending on the source and type of control: This Control Do This Beckman Coulter (non-latex) Follow the instructions on the Removable Media Entry of Lot Specific Information window. Other (non-latex) Specify non-latex reference values.

  • Page 126: Values,

    SETUP SETTING UP CONTROLS 11. If desired, select to set up lab limits for the control. 12. Select To return to the System Setup window. Another tab To change additional Quality Assurance Setup information. The Workstation asks you if you want to save the changes you made to the current information.

  • Page 127: Information,

    SETUP SETTING UP CONTROLS Type the expiration date for the control and press Specify whether you want to use this lot number as a default. Type the values in the appropriate fields: Assigned Values Expected Range Select To save the reference values and return to the Setup New Control Folder window.

  • Page 128: Controls,

    SETUP SETTING UP CONTROLS Select the existing control you want to edit. Select This To Edit This Reference values Lab limits Edit the values as needed. Select to save the reference values and return to the list of existing controls set up for your laboratory.

  • Page 129: Analysis,

    SETUP Enabling Extended QC If you returned to the existing controls list, select: To return to the System Setup window. Another tab To change additional Quality Assurance Setup information. The Workstation asks you if you want to save the changes you made to the current information.

  • Page 130: Analysis,

    Note: When target values or limits are modified in XM or XB analysis, all existing batches are evaluated against the new target values or limits. Beckman Coulter suggests that the existing batch mean tables be printed prior to changing these values.

  • Page 131: Controls,

    SETUP SETTING UP SHIFTS FOR CONTROLS SETTING UP SHIFTS FOR CONTROLS Note: To perform this task, you must log on with a user name that was set up as an Advanced Operator or a Lab Administrator. If you need to access this function, contact your laboratory administrator.

  • Page 132: Identifier,

    SETUP SETTING UP A POSITIVE IDENTIFIER Select: To save the changes. The Workstation stores the changes and updates the date last modified and the user name. The Workstation windows update immediately. The next report that prints contains the new labels you provided.

  • Page 133: Range,

    SETUP SETTING UP THE RBC HISTOGRAM NORMAL RANGE Patient ID Sample ID Cass/Pos Type the AutoSequence starting number. Use to move between fields. Select to save the sequence starting numbers. The next time the Workstation requires a sequence number, it uses the numbers you saved. 8.11 SETTING UP THE RBC HISTOGRAM NORMAL RANGE Select on the Command Center to display the System Setup window.

  • Page 134: 8.13 Setting Up Reporting Units

    WBC is disabled. Diff#s, NRBC# and associated definitive messages are not based on the UWBC parameter. If you choose to disable WBC, Beckman Coulter advises that you also disable the Diff#s, NRBC# and the associated definitive flags.

  • Page 135: Manually Setting Up Controls In Units Other Than Us1 Or Us2

    SETUP SETTING UP REPORTING UNITS Manually Setting Up Controls in Units Other Than US1 or US2 Note: Prior to setting up controls, ensure that the Reporting Units are set to US-1. Select on the Command Center to display the System Setup window. Select to display the General Settings window.

  • Page 136: 8.14 Setting Up Flagging Limits

    Delta check and Reflex Decision Rules are not reevaluated. Beckman Coulter suggests using all available flagging options to optimize the sensitivity of instrument results. All flagging options include reference ranges (H/L), action and critical limits, definitive flags, suspect flags, parameter codes, delta checks, decision rules and system alarms.

  • Page 137: Flagging Preferences

    SETUP SETTING UP FLAGGING LIMITS Select the limit name that you want to set the flagging limits for. 10. Select and display the Laboratory Flagging Limits Setup window. 11. Specify whether you want to Auto Validate the results that match this limit. 12.

  • Page 138: Defining Definitive Messages

    SETUP SETTING UP FLAGGING LIMITS The REPORT checkbox default is ON ( ) for Imm NE 1. If REPORT is deselected, then Imm NE 1 reporting is disabled (OFF). The Software Release Number is printed below the Institution Name and is indicated as D:X.X [00000] R:X.X.

  • Page 139: 8.15 Setting Up Rules For Flagging Sample Results

    Delta check and Reflex Decision Rules are not reevaluated. Beckman Coulter suggests using all available flagging options to optimize the sensitivity of instrument results. All flagging options include reference ranges (H/L), action and critical limits, definitive flags, suspect flags, parameter codes, delta checks, decision rules and system alarms.

  • Page 140: Defining Delta Check Criteria

    SETUP SETTING UP RULES FOR FLAGGING SAMPLE RESULTS Specify a Rule Short Title. IMPORTANT REVIEW YOUR DECISION RULES THAT CONTAIN MULTIPLE PARAMETERS. If you create a rule that has more than one parameter or contains more than one item that is related to a parameter, all of the parameters included in the rule (even if an OR condition is used) must also be included in the parameters reported in your report profile.

  • Page 141: Defining Reflex Manager Criteria

    SETUP SETTING UP RULES FOR FLAGGING SAMPLE RESULTS Select the specific parameter. Specify the value you want used for the criterion. If you want more than one condition included in this criterion, specify the logical operator you want to use. Specify the rule action you want used.

  • Page 142: 8.16 Setting Up The Rbc Histogram Normal Range

    SETUP Setting Up the RBC Histogram Normal Range Specify the unique patient identifier to use for delta checking. Specify where you want sample results that match the delta checking criteria to appear. After setting up the Reflex Manager and Delta Check characteristics, select to save the changes and return to the Decision Rules &...

  • Page 143: 8.17 Setting Up Reports

    SETUP SETTING UP REPORTS 8.17 SETTING UP REPORTS Note: To perform this task, you must log on with a user name that was set up as a Lab Administrator. If you need to access this function, contact your laboratory administrator. Select on the Command Center to display the System Setup window.

  • Page 144: 8.18 Setting Up Institution Details

    SETUP SETTING UP INSTITUTION DETAILS 8.18 SETTING UP INSTITUTION DETAILS Note: To perform this task, you must log on with a user name that was set up as a Lab Administrator. If you need to access this function, contact your laboratory administrator. Select on the Command Center to display the System Setup window.

  • Page 145: Setting Up Auto Validation

    SETUP SETTING UP LIS / HIS COMMUNICATIONS Select whether to transmit validation codes to your information system. Select whether to Replace DLE E with DLE C in the standard data set transmitted to your information system. Select the Send LH 780 specific fields option. Select the time out interval you want used.
  • Page 146 SETUP SETTING UP LIS / HIS COMMUNICATIONS Example A: Rule Setup: Reflex rule is defined as "If WBC is < 2.0 OR Hgb is < 6.0 then Repeat sample and call results". Sample Setup: Test Mode = CBC Preassigned Sample: includes only Hgb and Hct (Report Name) Sample Results: (As printed and transmitted to LIS.)
  • Page 147 SETUP SETTING UP LIS / HIS COMMUNICATIONS The parameter blocks that will be evaluated against the Decision Rule are the H and C blocks, because both Hgb and Hct are included in these blocks. The Decision Rule is not applied to the W block because Hct is not included in this block.

  • Page 148: Sending Lh

    SETUP CHANGING AN INSTRUMENT NAME Select to save the changes. Repeat steps 3 through 8 for each limit that you want enabled. Sending LH 780 Data To send LH 780 data to your information system: Select on the Command Center to display the System Setup window. Select to display the Communications window.

  • Page 149: 8.22 Setting Up User Access Levels

    Workstation. You can change the in-lab name for the instrument. You cannot change any other fields on this window. To change additional information on this window, contact your Beckman Coulter Representative. Select to display the settings for the Workstation.
  • Page 150 SETUP SETTING UP USER ACCESS LEVELS Type your new password and press Type your new password a second time for verification. Select to save the new password and close the window. If you want a blank password, perform the procedure above except, Step 4, type your new password then use the backspace key to erase the password and press Step 5, type your new password a second time then use the backspace key to erase...

  • Page 151: 8.23 Changing Physician List

    SETUP CHANGING PHYSICIAN LIST 8.23 CHANGING PHYSICIAN LIST Note: If your LIS is bidirectional, the location list will be populated by the LIS. Adding to the List Use any of the following methods to access the Physician List window: Select , then select Select , then select...

  • Page 152: 8.24 Changing Location List

    SETUP CHANGING LOCATION LIST Select , then select , and then select Select when editing sample results. Select the physician’ s name you want to delete. Select to remove the physician’ s name from the Physician List. Select to close the window and save the changes to the list. 8.24 CHANGING LOCATION LIST Note: If your LIS is bidirectional, the location list will be populated by the LIS.

  • Page 153: Deleting From The List

    SETUP SETTING UP DATABASE STORAGE LIMITS Select to close the window and save the changes to the list. Deleting from the List Use any of the following methods to access the Location List window: Select , then select Select , then select , and then select Select when editing sample results.

  • Page 154: Setting Up Colors

    SETUP SETTING UP DATABASE STORAGE LIMITS Select to display the Windows“ 2000 Control Panel. Double-click to view the display properties window. Select and specify the details for your screen saver. If you need additional information about the fields on the display properties window, select Select to exit and save the new settings.

  • Page 155: Setting Up Your Default Printer

    SETUP SETTING UP DATABASE STORAGE LIMITS Note: Service selects workstation regional, date and time settings at installation. Call Service if you desire modification of a regional setting. Modifications attempted at the LabAdmin security level may cause incorrect displays of information such as date format in some applications.

  • Page 156: 8.26 Run Configuration Window

    SETUP RUN CONFIGURATION WINDOW Double click on and follow the instructions in the Add Printer Wizard Select File tt Properties and verify the printer properties, paper size, and print orientation. Select to save the changes. The Workstation prints the next item to the printer you just selected.

  • Page 157: Changing Your Default Printout Format

    SETUP RUN CONFIGURATION WINDOW No Match, No Read and Partial Aspiration are not flags, but Run Status messages. As a selectable item within Run Configuration, these Run Status messages are not included in ‘Any Flags’. If you wish to implement a function based on all flags and the Run Status message, select Specific Flags, then select all the pertinent checkboxes.

  • Page 158: Setting Up Which Results To Transmit Automatically

    SETUP RUN CONFIGURATION WINDOW Select the flag type you want to use to determine printing. Select the QA Sample runs that you want to automatically print. Select to save the changes. The next item prints based on the flags you selected. Setting Up Which Results to Transmit Automatically Select to display the Run Configuration window.

  • Page 159: Setting Up When To Make A Slide,

    SETUP RUN CONFIGURATION WINDOW Select SlideMaker to change the option. Select to save the changes. The Workstation uses the SlideMaker for the next sample analysis. You must reset this option on this window to change SlideMaker analysis back to its original state. Setting Up When to Make a Slide Select to display the Run Configuration window.

  • Page 160: Turning Autocollation Off/On,

    SETUP RUN CONFIGURATION WINDOW Turning AutoCollation OFF/ON Select to display the Run Configuration window. Select AutoCollation to change option. If necessary, specify the time limit you want used. Select to save the changes. The Workstation performs AutoCollation based on your selection.

  • Page 161: Specifying Default Control Lot Numbers,

    SETUP RUN CONFIGURATION WINDOW Select to save the changes. The Workstation includes the next results in quality assurance analysis based on the selections you made. You must reset this option on this window to change quality assurance analysis back to its original state. Specifying Default Control Lot Numbers Select to display the Run Configuration window.

  • Page 162: Changing The Active Printer,

    SETUP RUN CONFIGURATION WINDOW Changing the Active Printer Select to display the Windows“ 2000 Print Manager window. Select the printer you want to use and set it as your default printer. If the printer you want to use does not appear in this list, you will need to set up a new printer. Select File Properties...
  • Page 163 TUBE LIST TUBE LIST Beckman Coulter does not recommend the use of one tube in preference to another nor guarantee the acceptability of the sample tube to produce quality results. If you need information on a tube not listed here, contact your Beckman Coulter Representative.
  • Page 164 TUBE LIST TUBE LIST 367861 4.0 mL 13.0 x 75 Special Optional 367862 4.0 mL 13.0 x 75 Special Optional BECTON DICKINSON VACUTAINER™ Tubes, Worldwide o.d. x Length Adapter Volume (mm) Cassette Clip Required Required 6384 3.0 mL 10.25 x 47 13mm 2 mL Note: Premix samples using this tube (6384) according to your laboratory’...
  • Page 165 TUBE LIST TUBE LIST KABE o.d. x Length Adapter Volume (mm) Cassette Clip Required Required E201N 1.8 mL 11.5 x 50 Special Note: Premix samples using this tube (E201N) according to your laboratory's protocol. E301N 3.0 mL 11.5 x 66 Special LABCO Exetainer™...
  • Page 166 TUBE LIST TUBE LIST SHERWOOD MEDICAL o.d. x Length Adapter Volume (mm) Cassette Clip Required Required 8881-311149 2.0 mL 10.25 x 50 13 mm 2 mL Note: Premix samples using this tube (8881-311149) according to your laboratory's protocol. 8881-311248 3.0 mL 10.25 x 64 13 mm 3 mL...
  • Page 167 INDEX - - - - -, Application Buttons, 1-18 applications, 1-18 archive, 7-2, 7-6, Symbols Archiving, +++++, aspiration, 4-13, 4-15 ?????, assigned values, 3-8, AUTO ANALYSIS, 1-19 AutoCollation option, 7-13 Numerics automatic, 2-4, 4-13, 8-10, 8-35, 8-36, 8-38 0-9, collation, 8-38 2D DataPlots, output,...
  • Page 168 INDEX processing, Checking Ramp Test Results, tube list, Cassette Handling, clean, cassette,labeling, cassette, CBC, clearing, CBC/Diff, CD ROM drive, 1-16 CLEAR APERT, clip, 4-4, 4-6, 4-8, 4-9, closed-vial mode, 4-13 change, 4-12, 4-15, 5-6, 8-2, 8-5, 8-16, 8-26, codes, 3-7, 8-27, 8-29, 8-30, 8-36, 8-37, 8-38, for controls, for results,...

  • Page 169: Coulter Tubes,

    INDEX control, setup limits, 8-13 patient data, control,setup limits, physician name, 8-29 controls, sample information, COULTER Tubes, Deleting Control Data, 3-10 criteria, 7-15 Deleting Control Setup Information, critical limits, 8-14, 8-15, 8-16 Deleting Patient Data, cube, Deleting Sample Information, customize flags, delta check, 5-7, 8-17, 8-37 cycling, 2-4, 3-5,...

  • Page 170: Kabe,

    INDEX diluter, extra digit, 8-12 identifier, 4-2, 8-9, 8-10 Identifying Samples Overview, illustration, 1-1, 1-2, 1-13, 1-14, 1-16, 1-17, F key, 1-18 fail, Imm NE 1 flag, 8-15 fault isolation, Imm NE 2 flag, 8-15 figure, 1-1, 1-2, 1-13, 1-14, 1-16, 1-17, 1-18 incomplete aspiration, files, 8-3,...

  • Page 171: Ldm,

    INDEX LATRON, 3-3, 3-4, 3-9, Monitor and Volume Controls, 1-18 layout, 8-21 Multi-Rule, 8-38 LDM Tubes, ON/OFF , 8-38 level, 1-13, 1-14 adjust power supply, 1-14 power supply functions, 1-13 name, 7-15, 8-26 power supply status, 1-14 network, 8-33 limit, 3-8, 3-9, 7-10, 8-5, 8-6, 8-13, 8-14, new test, 5, 8-16, 8-17, 8-31...

  • Page 172: Workstation,

    INDEX physician, 8-29 setup reports content, 8-21 picture, 1-1, 1-2, 1-13, 1-14, 1-16, 1-17, Providing Comments about Controls, 3-11 PNEU, 1-14 pneumatics, quality, 3-7, 8-3, 8-7, 8-38 port, 8-22 reviewing control results, positive ID, 4-2, 8-10 setting up controls, power, 1-6, 1-7, 1-13, 1-14, 1-17, 6-2, 6-3, turning analysis ON/OFF , 8-38 quality,setting up XB/XM analysis,...

  • Page 173: Workstation,

    INDEX collate, 7-13 cycling in manual, 4-13 link, 7-13 deleting results, processing, editing results, XB, 3-16, 3-17 finding results, 7-14 Retic, 3-3, 3-4, identifying, cycling Retic-C automatic, saving results, running latex Diff and Retic, sample request, running latex Retic, sample run (manual mode), 4-13 review, 3-7, 3-16, 3-17, 5-3, 5-4, 5-5, 5-7, sample storage,...
  • Page 174 INDEX Setting Up When to Make a Slide, 8-37 Sherwood Medical Tubes, Setting Up Which Results to Print shifts, Automatically, 8-35 shutdown, 1-9, 6-2, Setting Up Which Results to Transmit daily, Automatically, 8-36 extended--Diluter, Setting Up XB Analysis, Workstation, Setting Up Your Default Printer, 8-33 Shutting Down the Workstation, settings,...
  • Page 175 INDEX check background, Variant Lymph flag sensitivity, 8-15 check Hgb Voltage, Verify Pneumatics, check precision, Viewing DataBase Count Information, 7-16 check ramp, deleting, threshold monitor, wand, 4-11 time, 2-2, 8-32 wedge scanner, 4-11 ToDo list, 7-9, 7-10 What Prints When You Select PRINT, ToDo List Overview, 7-10 worklist,...
  • Page 176 INDEX INDEX-10 PN 773022BC...
  • Page 177 REFERENCES 1. Coulter WH. High speed automatic blood cell counter and cell size analyzer. Paper presented at National Electronics Conference, Chicago, IL, 1956; October 3. 2. Brecher G, Schneiderman M and Williams GZ. Evaluation of electronic red blood cell counter. Am J Clin Path, 1956; 26:1439-1449. 3.
  • Page 178 REFERENCES 18. Wycherley PA and O'Shea MJ. Abridged differential leucocyte counts provided by a Coulter Channelyzer in a routine haematology laboratory. J Clin Path, 1978; 31(3):271-274. 19. Oberjat TE, Zucker RM and Cassen B. Rapid and reliable differential counts on dilute leukocyte suspensions.
  • Page 179 47. Charie L., Harrison P ., Smith C., Cobb J., Briggs C., Machin S., Accuracy in the Low Platelet Count Range: A Comparison of Automated Platelet Counts on Beckman Coulter High-Volume Hematology Analyzers with the ISLH/ICSH Platelet Reference Method, Lab.
  • Page 180 REFERENCES Gen•S Hematology Analyzer, Lab. Hematol. 7:204-210, 2001. 50. Fernandez T., Domack L., Montes D., Pineiro R., Landrum E., Vital E., Performance Evaluation of the Coulter LH 750 Hematology Analyzer, Lab. Hematol. 7:217-228, 2001. 51. Brown W., Kaplan S., Keeney M., Johnson K., Wolfe N., Yee I., Workflow Improvement with Random Access and Enhanced Flagging on the New Coulter LH 750 Hematology Analyzer, Lab.

  • Page 181: Trademarks,

    TRADEMARKS 5C Series Control, Beckman Coulter, Coulter, Coulter Counter, Lin-C, Lyse S, S-Cal, Z Series are trademarks of Beckman Coulter, Inc.; Beckman Coulter, the BECKMAN COULTER logo, COULTER, Coulter Counter, 5C Series Control, Lin-C, Lyse S, S-Cal, and Z Series are registered in the USPO and SIPO.
  • Page 182 COULTER LH 780 SYSTEM HARD-COPY DOCUMENTATION Host Transmission Specifications for transmitting to a host computer. PN 4277303 Available in hard copy by request. Reference Use and Function • Installation • Operation Principles • Specifications/Characteristics • PN 773021 Precautions/Hazards • References • Glossary • Index Available in hard copy by request.

This manual is also suitable for:

Coulter lh 750 system

Table of Contents
