Using Navios Software
Cytometer Menu

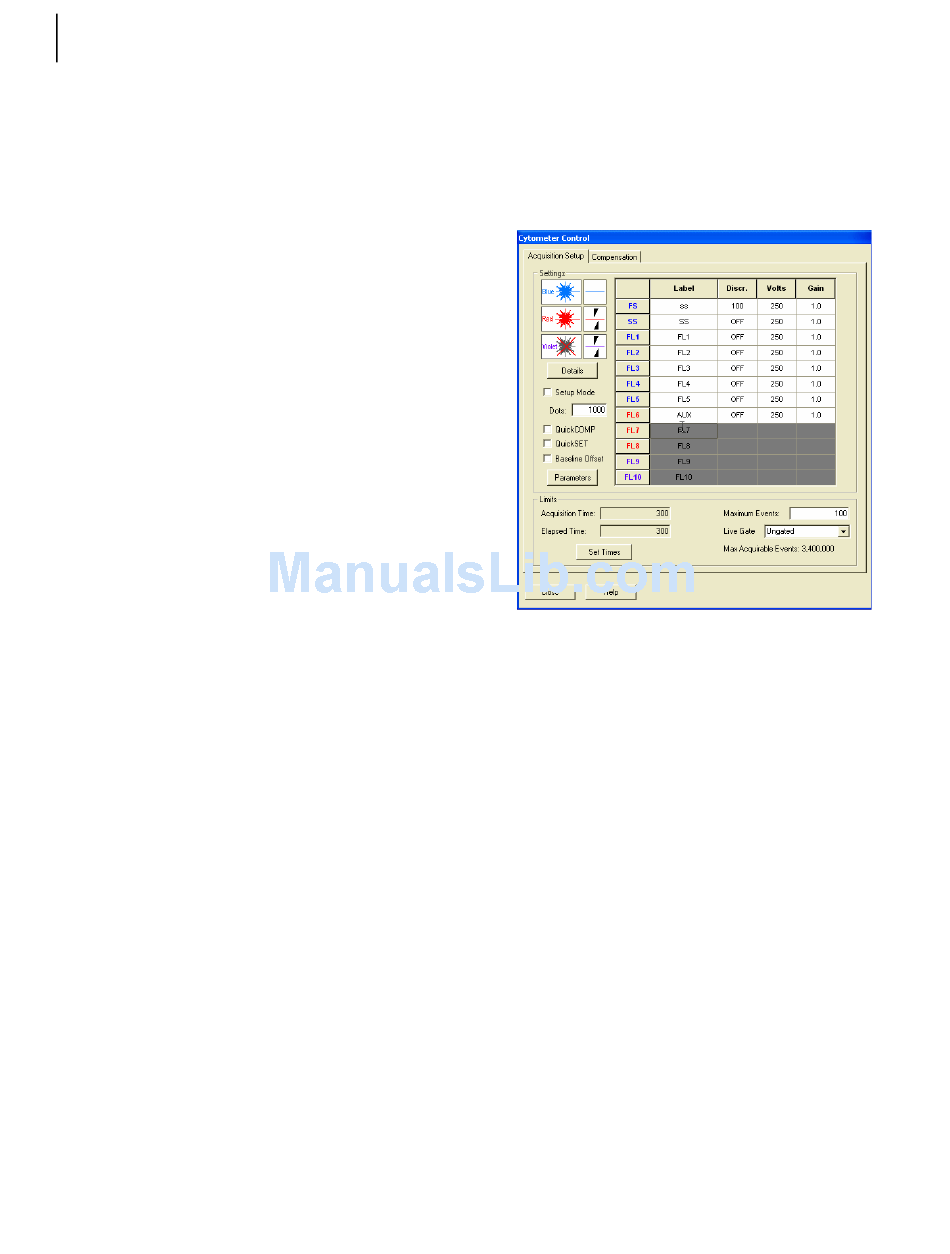

Cytometer Control Acquisition Setup Tab

This screen is used to set the Acquisition Mode and Acquisition Limits. Additionally, the
Discriminator values for the selected Parameters can be set.

Label

Discriminators

Volts
Details
Setup Mode
Dots
QuickCOMP Mode
QuickSET Mode
Baseline Offset
Parameter Button
Acquisition Time
Elapsed Time
Maximum Events
Live Gate
Max Acquirable Events
NOTE
You cannot make any changes on this
screen when running a
See also:
Cytometer Control
Cytometer Control Compensation Tab
Cytometer Control Parameter Setup
Flow Rate
Status Page
Settings
The Settings grid allows you to specify Label, Discriminator, Voltage and Gain values for each of the
Scatter and Fluorescence detectors installed on the instrument. Detector row headings will be
colored according to the Laser to which the Detector relates. If the Laser or PMT to which a Detector
relates is not installed on the instrument, then all fields on that row will be disabled.
Label
These input fields allow the editing the Names assigned to the default manufacturer's detectors.
Changes are ONLY reflected in the names shown within the Discriminator box in the Acquisition
Setup tab and the Compensation tab. This allows the various fluorochromes to be easily recognized
when adjusting instrument settings.
10-158
locked protocol.
773232AH
